STM32 Processor Kit NUCLEO-H743ZI2

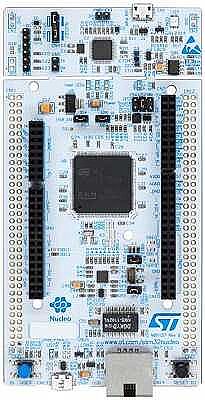

STM32 Development Board NUCLEO-H743ZI2

The STM32 Nucleo-144 NUCLEO-H743ZI2 is a high-end development board for electronic engineers and professional developers, featuring the STM32H743ZI microcontroller, one of the highest-performing products in the STM32 family. With its ARM Cortex-M7 core running at a massive 480 MHz clock speed, it effortlessly handles complex calculations, Edge AI algorithms, and high-speed digital signal processing (DSP) tasks.

This "Z2" version board is equipped with an integrated SMPS (Switched-Mode Power Supply) module that optimizes power consumption. Thanks to the onboard Ethernet RJ45 port and USB OTG features, it is ready out-of-the-box for IoT gateways and industrial communication projects. While providing unlimited expandability via ST Zio (Arduino Uno V3 compatible) and ST morpho multi-pin headers, the integrated ST-LINK/V3E programmer allows instant coding and debugging without the need for an external device.

Key Features:

• Ultra-High Performance: ARM® Cortex®-M7 core running at 480 MHz, supported by L1 cache and a double-precision FPU (Floating Point Unit).
• Massive Memory Capacity: 2 MB of Flash memory and 1 MB of SRAM, ideal for large projects, graphics, and networking libraries.
• Rich Connectivity Interfaces: Equipped with an onboard Ethernet MAC (with RJ45 connector) and USB OTG FS (Micro-AB) ports.
• Advanced Programmer: New generation integrated ST-LINK/V3E debugger providing much faster programming and debugging capabilities.
• Flexible Expansion: Supports Arduino Uno V3 shields via the ST Zio connector, while providing full access to all MCU I/O pins via ST morpho headers.

Technical Specifications:

Application Areas:

• Industrial gateways (IoT Gateway) and PLC automation systems.
• Edge AI, machine learning, and computer vision projects.
• Audio processing, digital signal processing (DSP), and advanced robotics controls.
• Smart city infrastructure and high-speed data acquisition (DAQ) terminal applications.
