STM32 Processor Kit NUCLEO-H563ZI

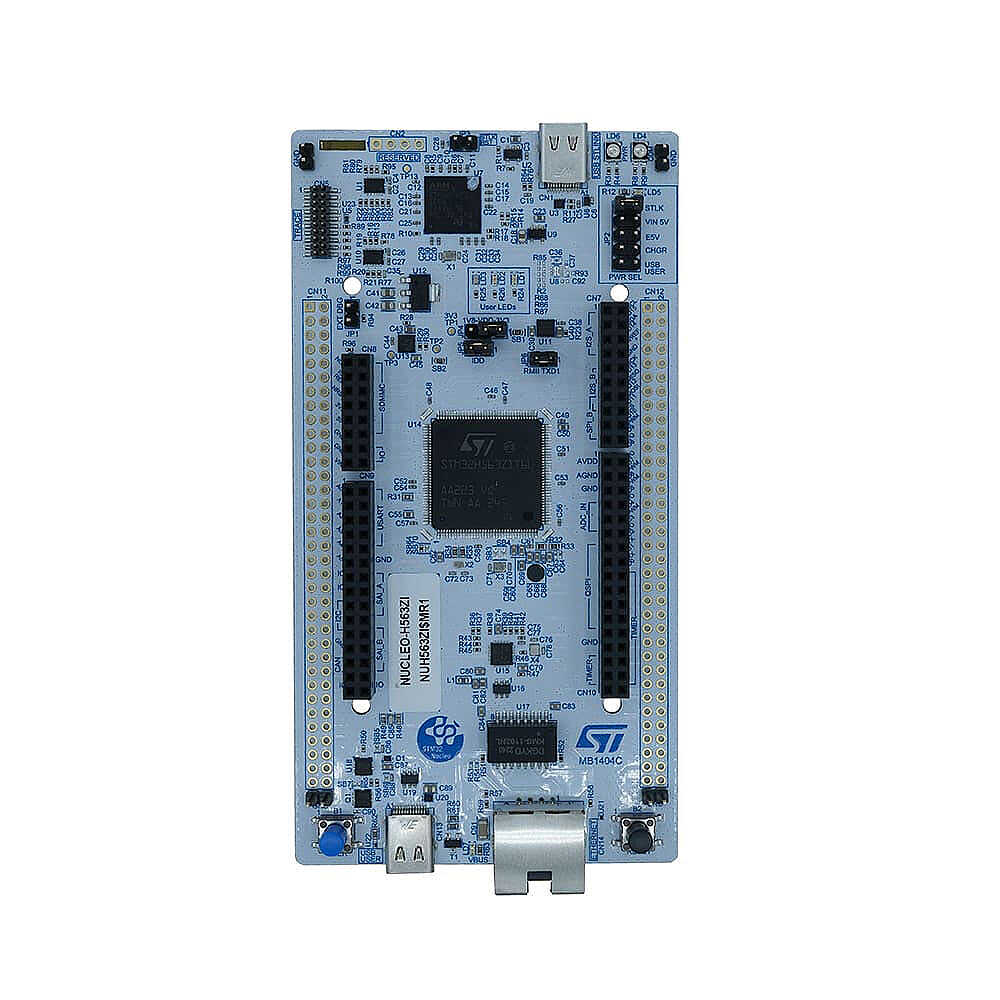

STM32 Development Board NUCLEO-H563ZI

The STM32 Nucleo-144 NUCLEO-H563ZI is a next-generation development board that combines high performance, energy efficiency, and advanced hardware-based security features. Equipped with the innovative STM32H563ZIT6 microcontroller featuring an ARM Cortex-M33 core running at a clock speed of 250 MHz, this kit offers an unparalleled platform for digital signal processing (DSP), heavy computations, and secure IoT (Internet of Things) applications.

Designed to be compatible with future technologies, the board comes standard with Ethernet (RJ45) and USB Type-C communication interfaces. This makes it ready out-of-the-box for industrial communication networks and smart sensor devices. While providing unlimited expandability via ST Zio (Arduino Uno V3 compatible) and ST morpho headers, it allows lightning-fast coding and debugging without the need for an external device, thanks to the latest generation ST-LINK/V3EC programmer.

Key Features:

• Next-Gen Cortex-M33 Performance: A powerful core running at 250 MHz, featuring DSP instructions and an FPU (Floating Point Unit) architecture.
• Advanced Connectivity Interfaces: Built-in Ethernet MAC (with RJ45 connector) and a USB Type-C port for modern data/power transfer.
• High Memory Capacity: 2 MB of Flash and 640 KB of SRAM for large code structures, RTOS (Real-Time Operating Systems), and communication libraries.
• Top-Tier Programmer: Integrated ST-LINK/V3EC supporting significantly faster program loading, virtual COM port, and mass storage features.
• Flexible Hardware Expansion: Supports Arduino Uno V3 shields via the ST Zio connector and provides complete access to all MCU I/O pins via ST morpho headers.

Technical Specifications:

Application Areas:

• High-speed industrial gateways (IoT Gateway) and Ethernet-based automation devices.
• Advanced motor controls, inverters, and power electronics management systems.
• Smart city, smart home, and medical device prototypes requiring robust cybersecurity.
• Digital signal processing (DSP), sensor fusion, and RTOS applications.
