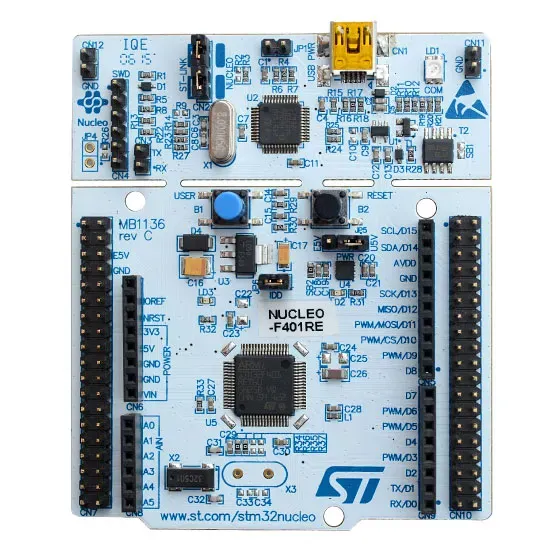

STM32 Processor Kit NUCLEO-F401RE

STM32 Processor Kit NUCLEO-F401RE

The STM32 NUCLEO-F401RE is a powerful and flexible development board designed by STMicroelectronics, based on the STM32F4 series microcontroller. It provides an ideal platform for high-performance embedded system applications, education, and rapid prototyping projects.

The on-board STM32F401RE microcontroller features an Arm Cortex-M4 core with FPU support, delivering high performance for signal processing and real-time applications. Thanks to the integrated ST-LINK/V2-1 debugger and programmer, development can be carried out without the need for external hardware.

Arduino Uno V3 compatible expansion connectors and ST Morpho pin headers allow the board to be easily extended with a wide range of modules and peripherals. The STM32Cube software ecosystem, including free libraries and example projects, significantly accelerates the development process.

STM32 Processor Kit NUCLEO-F401RE Technical Specifications:

• STM32F401RET6 microcontroller (Arm Cortex-M4 core)

• 32-bit Arm Cortex-M4 CPU with FPU support

• 512 KB Flash memory

• 96 KB SRAM

• Arduino™ Uno V3 compatible expansion connectors

• ST Morpho pin header support

• 1 user LED

• 1 user button and 1 reset button

• Flexible power supply via USB or external sources

• Support for STM32CubeIDE, IAR, and Keil IDEs

Useful Links / Documents:

• NUCLEO-64 Boards Data Brief (PDF)
• Official Documentation and Software
