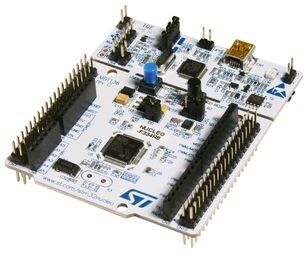

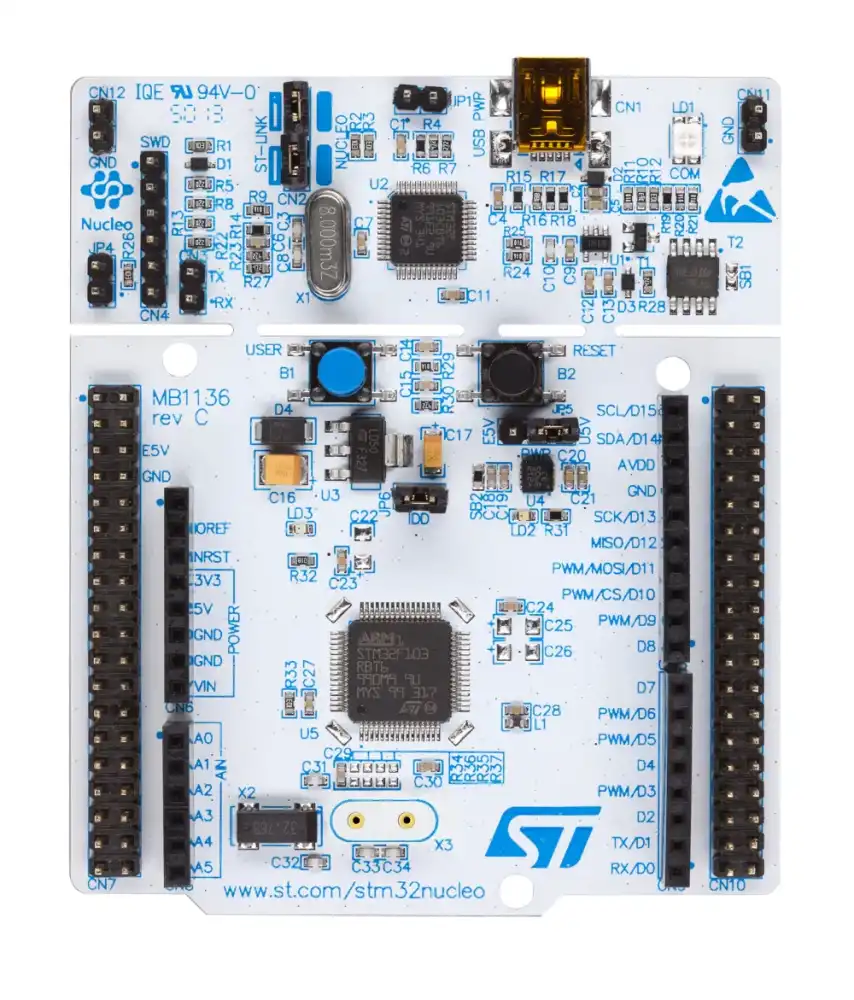

STM32 Processor Kit NUCLEO-F334R8

STM32 Processor Kit NUCLEO-F334R8

The STM32 NUCLEO-F334R8 is a development board designed by STMicroelectronics, based on the STM32F3 series microcontroller. It is specifically intended for high-precision analog and motor control applications, making it a powerful platform for education, prototyping, and industrial control projects.

The on-board STM32F334R8 microcontroller features an Arm Cortex-M4 core with DSP support and advanced analog peripherals, delivering high accuracy in real-time control applications. Its rich timer and PWM capabilities make it widely used in motor drive and power control systems.

Thanks to the integrated ST-LINK/V2-1 debugger and programmer, development can be performed quickly without the need for external hardware. Arduino Uno V3 compatible expansion connectors and ST Morpho pin headers allow the board to be easily expanded with a wide range of modules and peripherals.

STM32 Processor Kit NUCLEO-F334R8 Technical Specifications:

• STM32F334R8T6 microcontroller (Arm Cortex-M4 core)

• 32-bit Arm Cortex-M4 CPU with DSP support

• 64 KB Flash memory

• 16 KB SRAM

• Advanced analog peripherals (high-resolution ADC, DAC, comparators)

• Advanced timer and PWM support for motor control

• Arduino™ Uno V3 compatible expansion connectors

• ST Morpho pin header support

• 1 user LED

• 1 user button and 1 reset button
