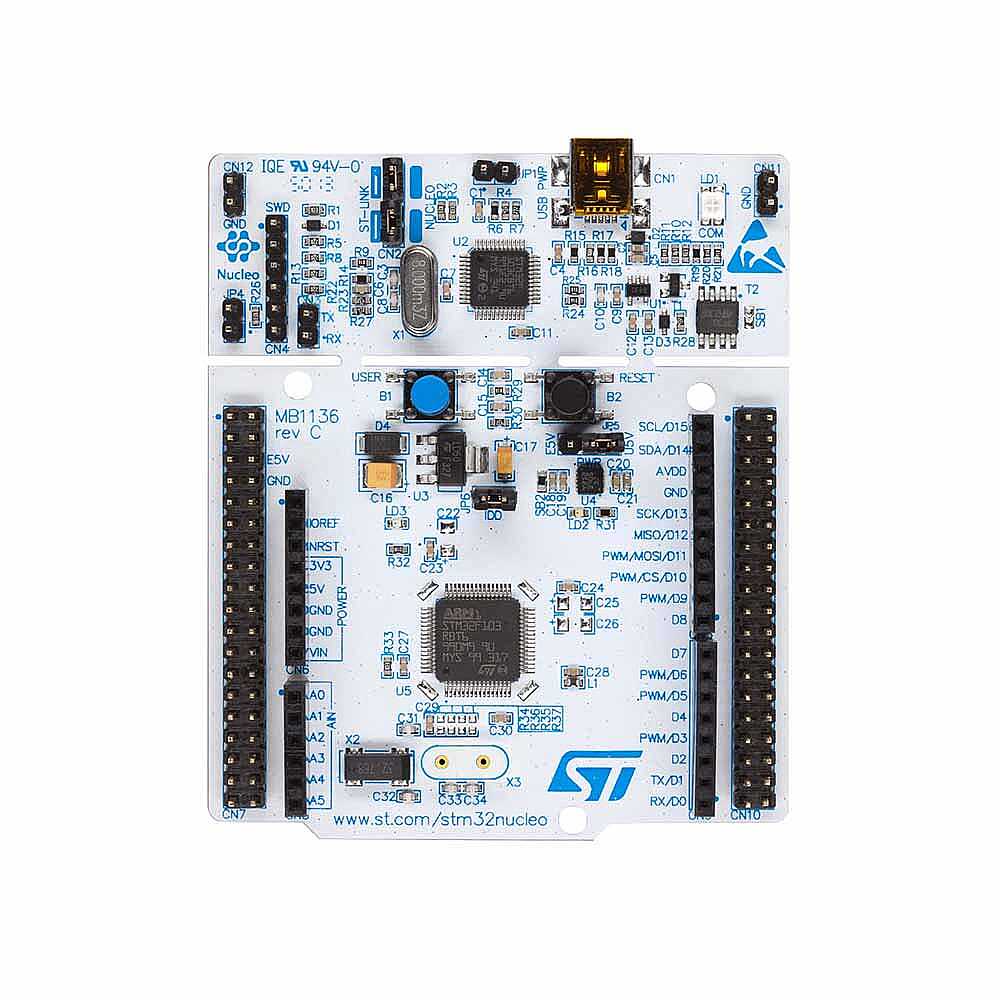

STM32 Processor Kit NUCLEO-F302R8
Fiyat
:
2,139.75
TL + VAT
KDV Dahil Fiyat
:
2,567.69
TL
Money Order Price :
2,516.34
TL
%2 Discount
Out Of Stock
Notify me when its in stockSTM32 Development Board NUCLEO-F302R8
The STM32 Nucleo-64 NUCLEO-F302R8 is a flexible development board specifically designed for projects that require advanced analog hardware and complex motor control features. Equipped with the STM32F302R8 microcontroller featuring an ARM Cortex-M4 core with FPU (Floating Point Unit) and DSP instructions running at 72 MHz, this kit stands out with its rich mixed-signal capabilities such as ultra-fast ADCs, a DAC (Digital-to-Analog Converter), operational amplifiers (Op-Amps), and comparators.
To ensure seamless integration with countless sensors and add-on modules on the market, it features Arduino Uno V3 and ST morpho expansion headers. Thanks to the integrated ST-LINK/V2-1 programmer and debugger, you can quickly write code and utilize virtual COM port features directly via a USB cable, without the need for an extra adapter or device.
Key Features:
- Advanced Analog Capabilities: Flawless performance in analog signal processing projects with built-in ultra-fast ADCs, DAC, and Op-Amp hardware.
- Powerful Cortex-M4 Core: Running at 72 MHz, the architecture features a DSP instruction set and FPU, accelerating mathematical calculations at the hardware level.
- Integrated Programmer: The ST-LINK/V2-1 interface provides drag-and-drop flash programming and professional debugging capabilities.
- Flexible Expandability: Supports Arduino Uno V3 shields and provides ST morpho connections for complete access to all microcontroller I/O pins.
- Motor Control Focused: Ideal for brushless DC (BLDC) and stepper motor control applications thanks to its advanced timers and analog interfaces.
Technical Specifications:
| Parameter | Value |
| Microcontroller | STM32F302R8T6 (32-bit) |
| Processor Core | ARM® Cortex®-M4 (with DSP and FPU) |
| Clock Speed (Frequency) | 72 MHz (Maximum) |
| Flash Memory | 64 KB |
| SRAM (RAM Memory) | 16 KB |
| Analog Peripherals | Fast ADCs, DAC, Op-Amps, Comparators |
| Programmer / Debugger | Integrated ST-LINK/V2-1 (via SWD Connection) |
| Expansion Headers | Arduino™ Uno V3 and ST morpho |
| Operating Voltage Range | 2.0V - 3.6V (Board supply: 5V or 3.3V-12V) |
| User Interface | 1x User Button, 1x Reset Button, 1x User LED |
Application Areas:
- Brushless DC (BLDC), stepper motor, and servo motor drive controllers.
- Sensor signal reading, analog signal conditioning, and power electronics.
- Medical measurement devices and high-precision industrial weighing/sensor systems.
- Digital signal processing (DSP) and hardware education for university laboratories.
