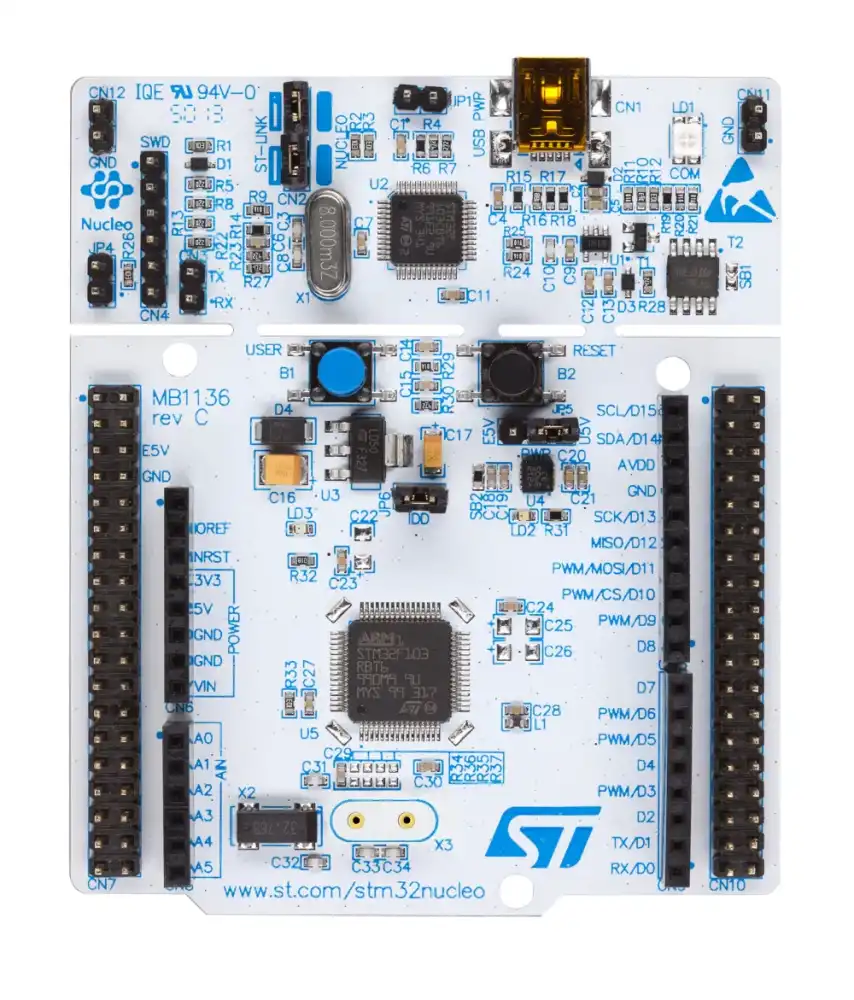

STM32 Processor Kit NUCLEO-F103RB

STM32 Processor Kit NUCLEO-F103RB

The STM32 NUCLEO-F103RB is a development board designed by STMicroelectronics, based on the STM32F1 series microcontroller. It is widely used for education and prototyping, offering a reliable and well-established platform for both beginners and professional embedded system developers.

The on-board STM32F103RB microcontroller features an Arm Cortex-M3 core, providing balanced performance with low power consumption. Thanks to the integrated ST-LINK/V2-1 debugger and programmer, development and debugging can be performed without the need for external hardware.

Arduino Uno V3 compatible expansion connectors allow the board to work with a wide range of shields and modules. The STM32Cube software ecosystem, including free libraries and example projects, significantly simplifies the development process.

STM32 Processor Kit NUCLEO-F103RB Technical Specifications:

• STM32F103RBT6 microcontroller (Arm Cortex-M3 core)

• 32-bit Arm Cortex-M3 CPU

• 128 KB Flash memory

• 20 KB SRAM

• Arduino™ Uno V3 compatible expansion connectors

• Morpho pin header support

• 1 user LED

• 1 reset push button

• Flexible power supply via USB or external sources

• Support for IAR, Keil, and GCC-based IDEs

Useful Links / Documents:

• NUCLEO-64 Boards Data Brief (PDF)
• Official Documentation and Software
