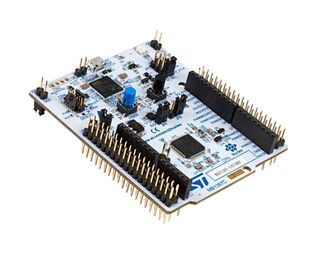

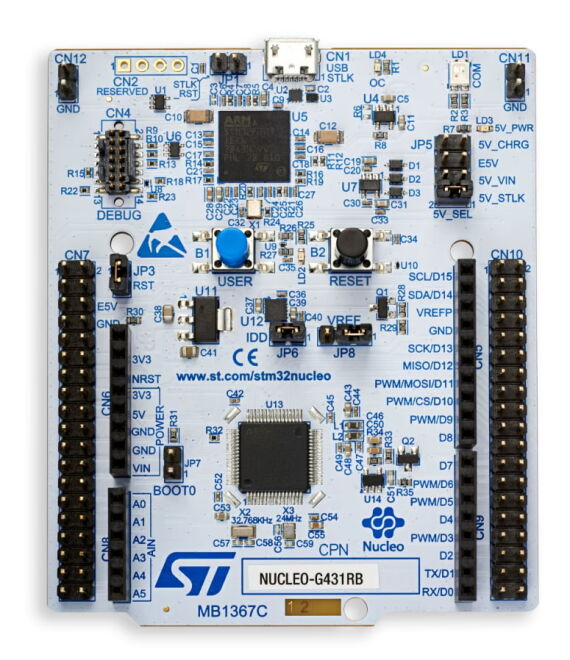

STM32 Nucleo-64 Processor Kit NUCLEO-G431RB

STM32 Nucleo-64 Processor Kit NUCLEO-G431RB

The STM32 NUCLEO-G431RB is a high-performance Nucleo-64 development board designed by STMicroelectronics, based on the STM32G4 series microcontroller. It is specifically intended for motor control, power electronics, and analog-intensive embedded system applications.

The on-board STM32G431RB microcontroller features an Arm Cortex-M4 core with FPU and DSP support, delivering high precision and real-time performance for control applications. Its advanced analog peripherals enable efficient sensor acquisition and control algorithm implementation.

Thanks to the integrated ST-LINK/V3E debugger and programmer, development can be carried out quickly without the need for external hardware. Arduino Uno V3 compatible expansion connectors and ST Morpho pin headers allow easy expansion with a wide range of modules and peripherals.

STM32 Nucleo-64 Processor Kit NUCLEO-G431RB Technical Specifications:

• STM32G431RBT6 microcontroller (Arm Cortex-M4 core)

• 32-bit Arm Cortex-M4 CPU with FPU and DSP support

• 128 KB Flash memory

• 32 KB SRAM

• Advanced analog peripherals (high-resolution ADC, DAC, comparators)

• Arduino™ Uno V3 compatible expansion connectors

• ST Morpho pin header support

• 1 user LED

• 1 user button and 1 reset button

• Flexible power supply via USB or external sources

Useful Links / Documents:

• NUCLEO-G431RB Data Brief (PDF)
• Official Documentation and Software
