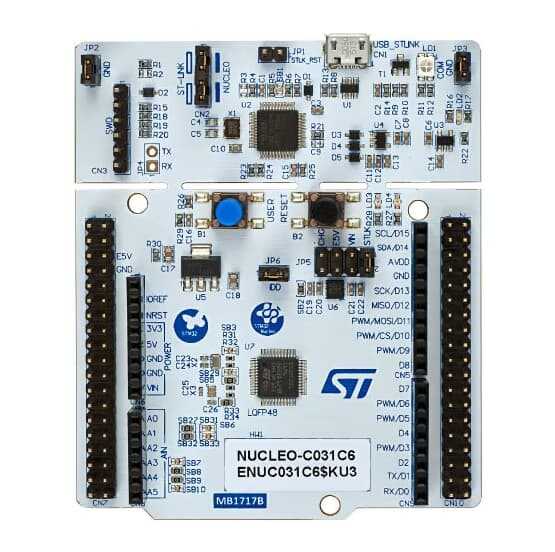

STM32 Nucleo-64 Development Board NUCLEO-C031C6

STM32 Nucleo-64 Development Board NUCLEO-C031C6

The STM32 Nucleo-64 Development Board NUCLEO-C031C6 is a modern and cost-effective Nucleo-64 board designed by STMicroelectronics for the STM32C0 series microcontrollers. The board features the STM32C031C6T6 microcontroller with an Arm® Cortex®-M0+ core, providing an ideal platform for entry-level and general-purpose embedded system applications.

Thanks to the integrated ST-LINK/V2-1 debugger and programmer, programming and debugging can be performed quickly and easily without the need for external hardware. Arduino™ Uno V3 and ST Morpho pin compatibility allows the board to be flexibly used with a wide range of expansion boards and hardware modules.

Compatible with widely used development environments such as STM32CubeIDE, IAR Embedded Workbench, and Keil MDK-ARM, the NUCLEO-C031C6 is a reliable development solution for education, prototyping, industrial control, and low-cost professional embedded system projects.

STM32 Nucleo-64 Development Board NUCLEO-C031C6 Technical Specifications:

• STM32C031C6T6 microcontroller with Arm® Cortex®-M0+ core

• Maximum operating frequency of 48 MHz

• 32 KB Flash memory

• 12 KB SRAM

• On-board ST-LINK/V2-1 debugger and programmer

• Arduino™ Uno V3 and ST Morpho pin compatibility

• 48 MHz external high-speed oscillator (HSE)

• USB virtual COM port and debug support

• Compatible with STM32Cube software libraries and example projects

Useful Links / Documents:

• STM32C031C6 Datasheet
• NUCLEO-C031C6 Documentation
