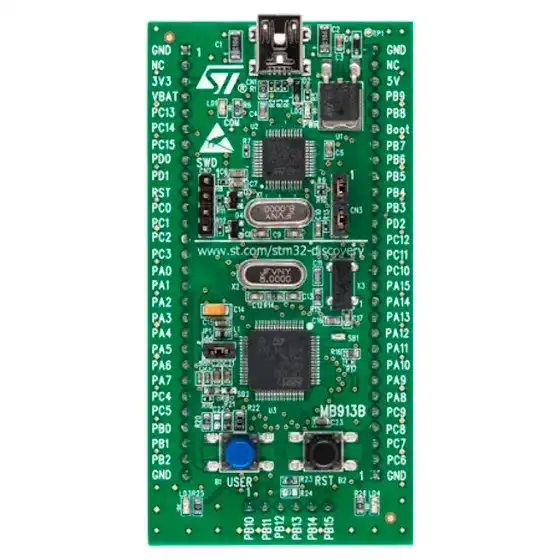

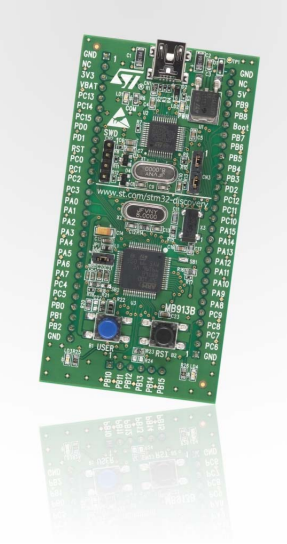

STM32 Development Board STM32VLDISCOVERY

STM32 Development Board STM32VLDISCOVERY

The STM32 Development Board STM32VLDISCOVERY is a low-cost Discovery kit designed by STMicroelectronics to explore and quickly start developing with STM32F100 Value Line microcontrollers. The board features the STM32F100RBT6B microcontroller with an Arm® Cortex®-M3 core, providing an ideal platform for entry-level STM32 projects.

The development kit includes an on-board ST-LINK debugger/programmer, which can also be used as a standalone ST-LINK via a selection switch. The board can be powered via USB or an external 5 V / 3.3 V supply and is capable of providing 3 V and 5 V power to target applications.

The STM32VLDISCOVERY is well suited for education, prototyping, and basic embedded system applications, offering a practical and cost-effective solution for users who want to get started quickly with the STM32 software ecosystem.

STM32 Development Board STM32VLDISCOVERY Technical Specifications:

• STM32F100RBT6B microcontroller with Arm® Cortex®-M3 core

• 128 KB Flash memory

• 8 KB RAM

• On-board ST-LINK debugger and programmer (can be used as a standalone ST-LINK)

• USB or external 5 V / 3.3 V power supply support

• 3 V and 5 V power output for target applications

• Two user LEDs (green and blue)

• One user push-button

• Extension headers providing access to all QFP64 I/Os

• Compatible with STSW-STM32078 software package and example projects
