STM32 Development Board STM32L152C-DISCO

STM32 Development Board STM32L152C-DISCO (32L152CDISCOVERY)

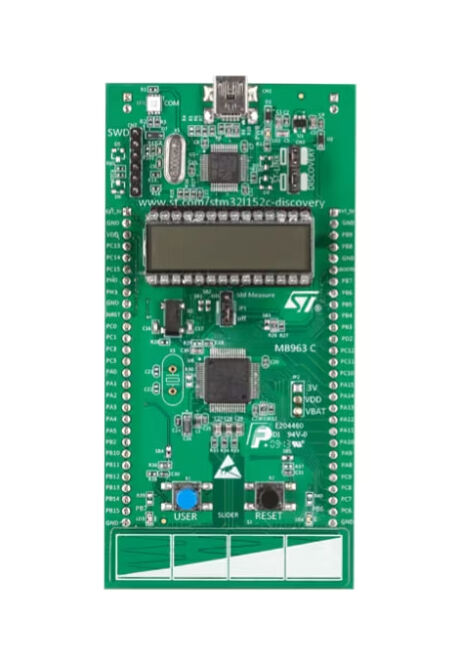

The STM32L152C-DISCO (32L152CDISCOVERY) is a development board from STMicroelectronics based on the ultra-low-power STM32L1 series microcontrollers. The board is equipped with the STM32L152RC microcontroller featuring an Arm® Cortex®-M3 core, making it ideal for low-power embedded applications.

The development kit includes an integrated ST-LINK/V2 debugger/programmer, a 24-segment LCD display, user LEDs, push-buttons, and touch sensors. This allows rapid prototyping and application development without the need for additional external hardware.

Compatible with popular development environments such as STM32CubeIDE, IAR Embedded Workbench, and Keil MDK-ARM, this board is a powerful and flexible solution for education, R&D, and ultra-low-power embedded system projects.

STM32 Development Board STM32L152C-DISCO Technical Specifications:

• STM32L152RC microcontroller with Arm® Cortex®-M3 core

• 256 KB Flash memory

• 32 KB RAM and 8 KB Data EEPROM

• 24-segment, 4-common LCD display

• On-board ST-LINK/V2 debugger and programmer

• USB virtual COM port and debug support

• Linear touch sensor and capacitive touch keys

• User and reset push-buttons

• Flexible power supply options (USB or external source)

• Compatible with STM32Cube software libraries and example projects

Useful Links / Documents:

• STM32L152C-DISCO Datasheet
• STM32L152C-DISCO Documentation
