STM32 Development Board STM32F411E-DISCO

STM32 Development Board STM32F411E-DISCO

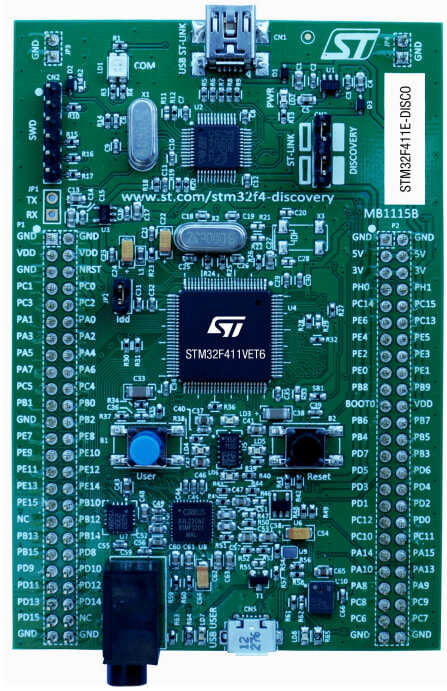

The STM32 Development Board STM32F411E-DISCO (32F411EDISCOVERY) is a comprehensive Discovery kit developed by STMicroelectronics for the STM32F4 series microcontrollers. The board is based on the STM32F411VET6 microcontroller featuring an Arm® Cortex®-M4 core, providing a powerful development environment for high-performance and DSP-oriented applications.

The development kit is equipped with rich on-board hardware including an integrated ST-LINK/V2 debugger and programmer, USB OTG Full Speed support, MEMS sensors, a digital microphone, and audio output. These features enable rapid development of sensor-based, audio processing, and motion detection applications.

Compatible with popular development environments such as STM32CubeIDE, IAR Embedded Workbench, and Keil MDK-ARM, the STM32F411E-DISCO is an ideal solution for education, prototyping, multimedia, and professional embedded system projects.

STM32 Development Board STM32F411E-DISCO Technical Specifications:

• STM32F411VET6 microcontroller with Arm® Cortex®-M4 core

• 512 KB Flash memory

• 128 KB RAM

• USB OTG Full Speed (FS) support

• 3-axis MEMS gyroscope

• 3-axis accelerometer and magnetic sensor (e-compass)

• Digital MEMS microphone

• Audio DAC with integrated Class-D speaker driver

• On-board ST-LINK/V2 debugger and programmer (can be used as a standalone ST-LINK)

• Compatible with STM32Cube software libraries and example projects
