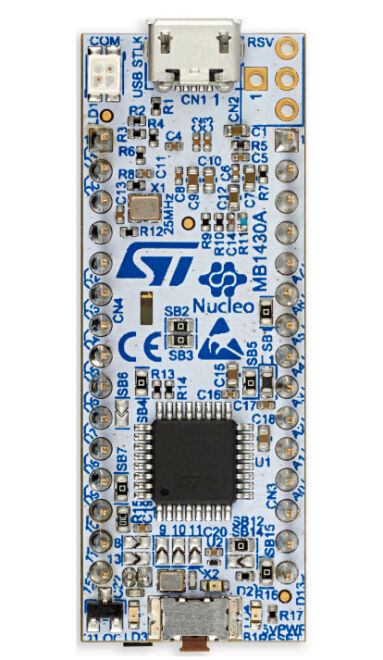

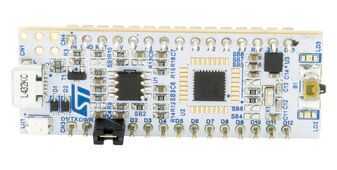

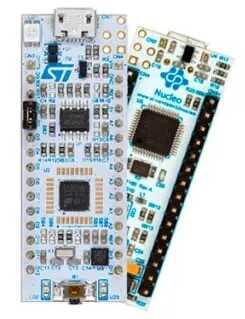

STM32 Development Board NUCLEO-L432KC

STM32 Development Board NUCLEO-L432KC

The STM32 NUCLEO-L432KC is a development board designed by STMicroelectronics, featuring the STM32L4 series microcontroller that combines low power consumption with high performance. It is an ideal platform for prototyping, education, and embedded system applications.

Thanks to the on-board ST-LINK/V2-1 debugger and programmer, users can easily program and debug without the need for external hardware. The Arduino Nano V3 compatible pin layout allows seamless expansion with a wide range of add-on boards.

Supported by the STM32Cube software ecosystem, the board comes with free libraries and example projects, enabling a fast and efficient development process. It is a powerful solution for IoT, portable devices, and low-power industrial applications.

STM32 Development Board NUCLEO-L432KC Technical Specifications:

• STM32L432KCU6U microcontroller (Arm Cortex-M4 core)

• 32-bit Arm Cortex-M4 CPU with DSP and FPU support

• 256 KB Flash memory

• 64 KB SRAM

• On-board ST-LINK/V2-1 debugger and programmer

• Arduino™ Nano V3 compatible expansion connectors

• 1 user LED

• 1 reset push button

• Flexible power supply options via USB or external sources

• Support for IAR, Keil, and GCC-based IDEs

Useful Links / Documents:

• NUCLEO-32 Boards Data Brief (PDF)
• Official Documentation and Software
