STM32 Development Board NUCLEO-L152RE

STM32 Development Board NUCLEO-L152RE

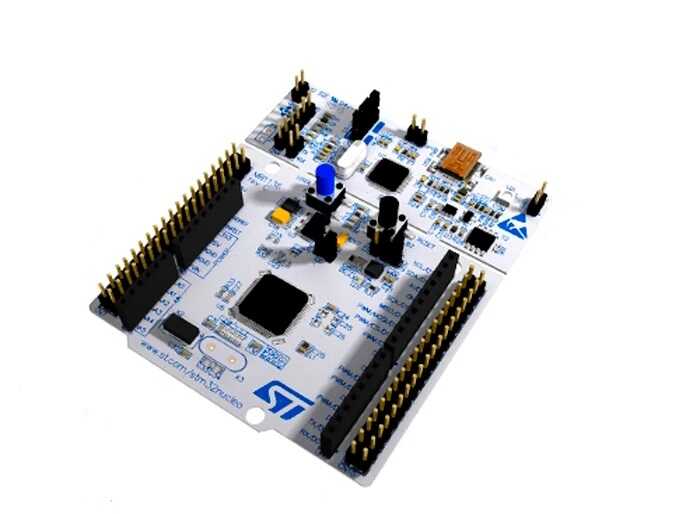

The STM32 Development Board NUCLEO-L152RE is a Nucleo-64 development board designed by STMicroelectronics for the ultra-low-power STM32L1 series microcontrollers. The board features the STM32L152RE microcontroller with an Arm® Cortex®-M3 core, providing an ideal platform for embedded system applications that require long battery life.

Thanks to the integrated ST-LINK/V2-1 debugger and programmer, programming and debugging can be performed easily without the need for external hardware. Arduino™ Uno V3 and ST Morpho pin compatibility allows the board to be flexibly used with various expansion boards and hardware modules.

Compatible with common development environments such as STM32CubeIDE, IAR Embedded Workbench, and Keil MDK-ARM, the NUCLEO-L152RE is a reliable development solution for education, prototyping, IoT applications, and low-power professional projects.

STM32 Development Board NUCLEO-L152RE Technical Specifications:

• STM32L152RE microcontroller with Arm® Cortex®-M3 core

• Maximum operating frequency of 32 MHz

• 512 KB Flash memory

• 80 KB SRAM

• Ultra-low-power architecture

• On-board ST-LINK/V2-1 debugger and programmer

• Arduino™ Uno V3 and ST Morpho pin compatibility

• USB virtual COM port and debug support

• Compatible with STM32Cube software libraries and example projects

Useful Links / Documents:

• STM32L152RE Datasheet
• NUCLEO-L152RE Documentation
