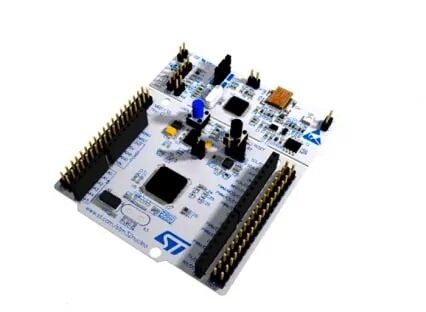

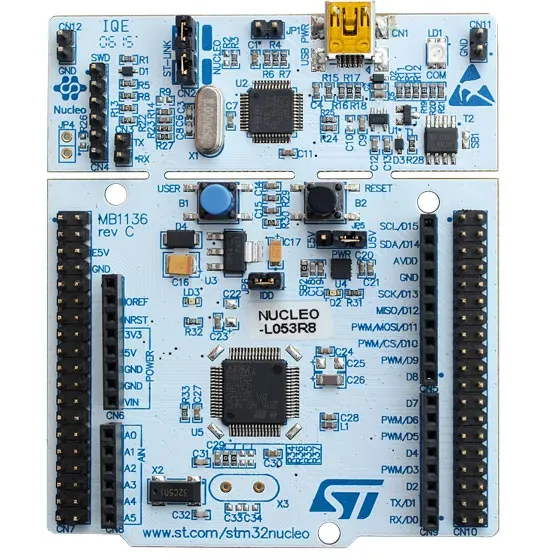

STM32 Development Board NUCLEO-L053R8

STM32 Development Board NUCLEO-L053R8

The STM32 Development Board NUCLEO-L053R8 is a Nucleo-64 development board designed by STMicroelectronics for the ultra-low-power STM32L0 series microcontrollers. The board features the STM32L053R8 microcontroller with an Arm® Cortex®-M0+ core, making it an ideal development platform for IoT, portable devices, and applications requiring long battery life.

Thanks to the integrated ST-LINK/V2-1 debugger and programmer, programming and debugging can be performed quickly and easily without the need for external hardware. Arduino™ Uno V3 and ST Morpho pin compatibility allows the board to be used with a wide range of expansion boards and hardware modules.

Compatible with popular development environments such as STM32CubeIDE, IAR Embedded Workbench, and Keil MDK-ARM, the NUCLEO-L053R8 is a reliable and flexible solution for education, prototyping, IoT, and low-power professional embedded system projects.

STM32 Development Board NUCLEO-L053R8 Technical Specifications:

• STM32L053R8 microcontroller with Arm® Cortex®-M0+ core

• Maximum operating frequency of 32 MHz

• 64 KB Flash memory

• 8 KB SRAM

• Architecture optimized for ultra-low-power consumption

• On-board ST-LINK/V2-1 debugger and programmer

• Arduino™ Uno V3 and ST Morpho pin compatibility

• USB virtual COM port and debug support

• Compatible with STM32Cube software libraries and example projects

Useful Links / Documents:

• STM32L053R8 Datasheet
• NUCLEO-L053R8 Documentation
