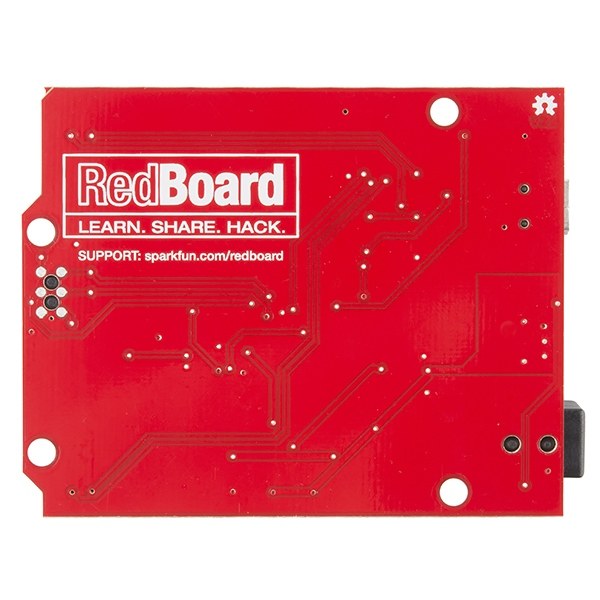

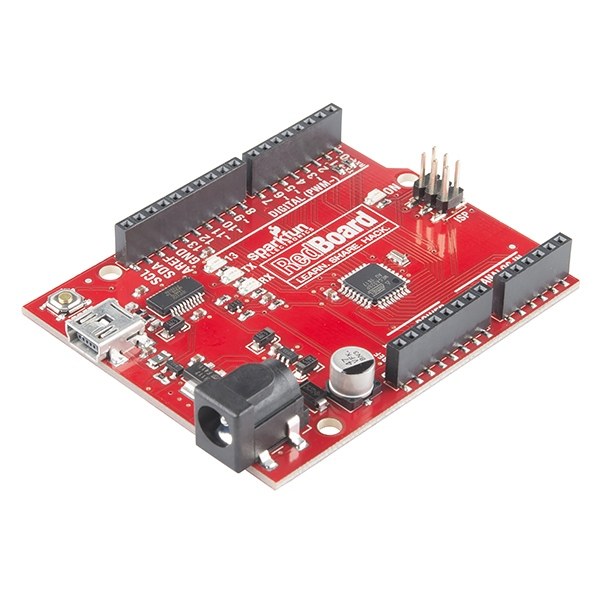

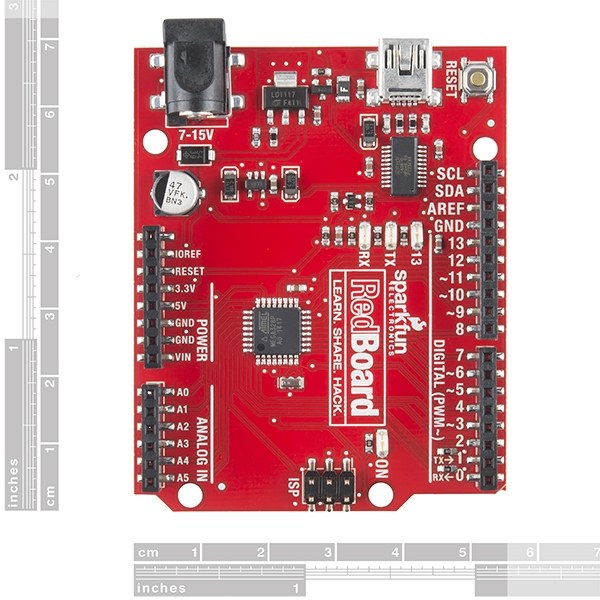

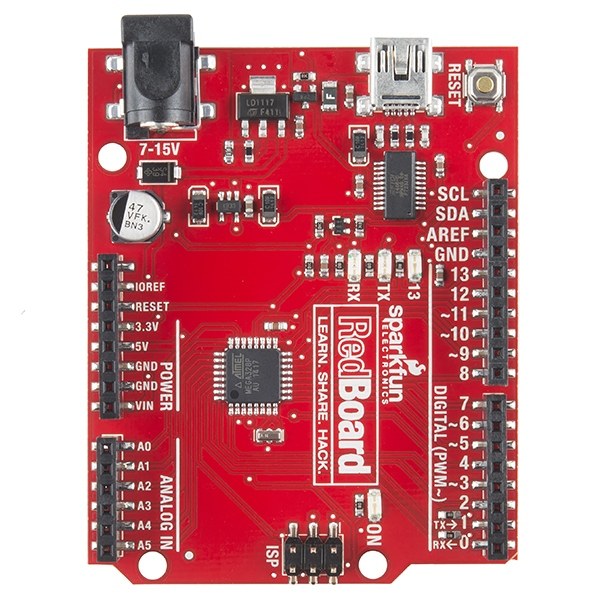

SparkFun RedBoard Compatible with Arduino
The SparkFun RedBoard is a development board compatible with Arduino® produced by SparkFun.
Its pin layout and processor are exactly the same as the original Arduino® UNO R3. It only has a few differences for the sake of usability:
- Unlike the original board, the RedBoard development board features a USB mini-B type connector.
- The processor on it is in an SMD package instead of a DIP package like on the UNO.
- It uses the FTDI FT231X IC as the USB-to-serial converter.
It can be programmed via Arduino® IDE by selecting Arduino® UNO as the board model.
SparkFun RedBoard Technical Specifications:
- ATmega328 microcontroller with Optiboot bootloader
- USB-to-serial converter IC: FTDI FT231X
- Input voltage: 7-15V
- 5V output logic level (can also be used with 3.3V input signals)
- 14 digital I/O pins (6 of which provide PWM output)
- 6 analog input pins
- ISP header connection
- 32 KB flash memory
- 16 MHz clock speed
- Completely SMD design
- Compatible with R3 shields
- Red colored circuit board
