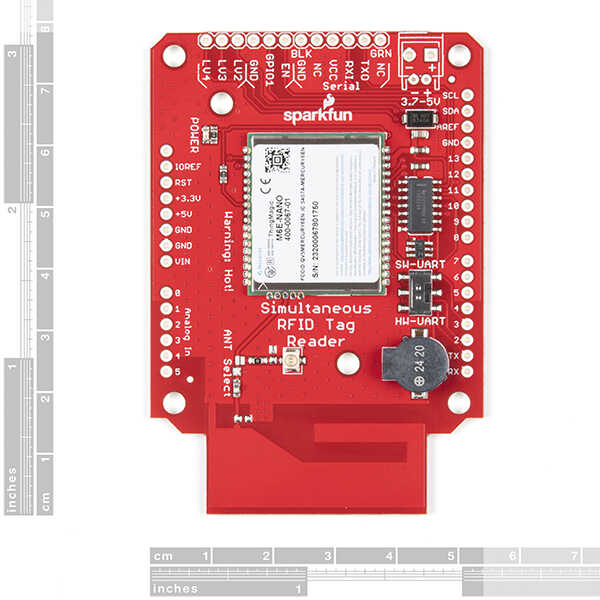

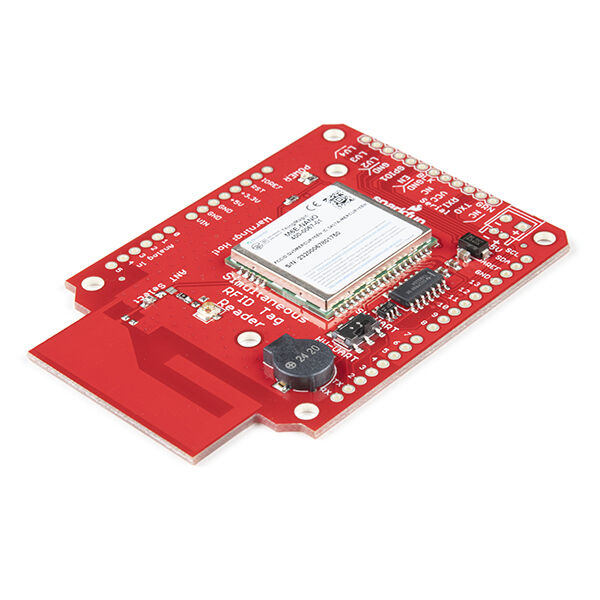

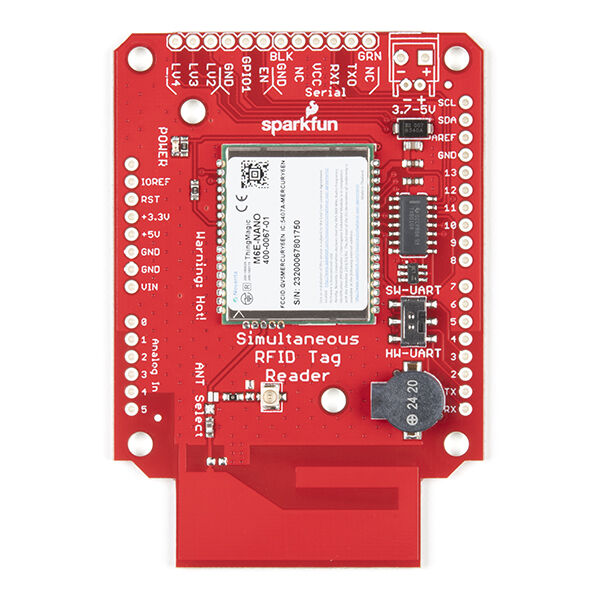

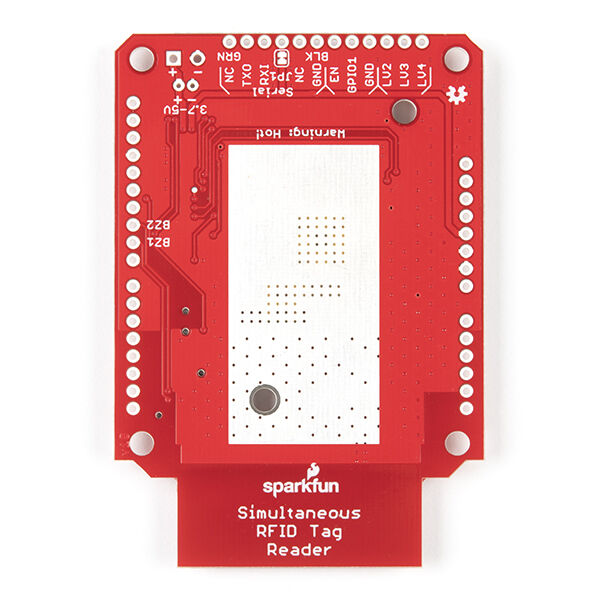

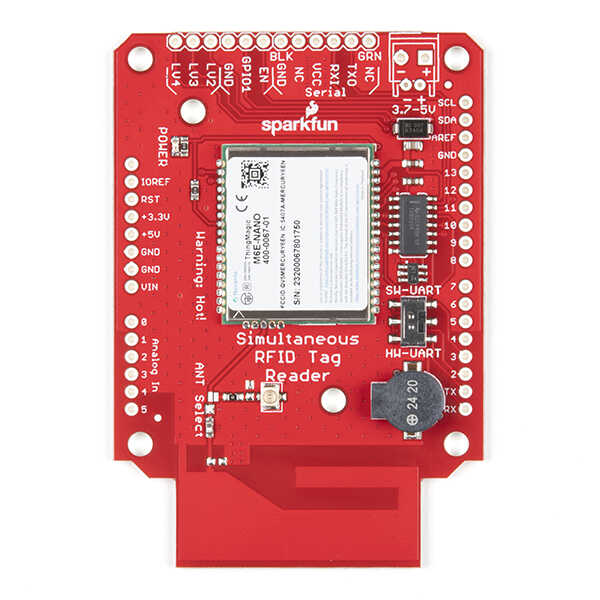

SparkFun Concurrent RFID Reader - M6E Nano

SparkFun Concurrent RFID Reader - M6E Nano

SparkFun Concurrent RFID Reader - M6E Nano, It is a reader board compatible with arduino. Thanks to its radio frequency identification (RFID) feature, it offers the opportunity to monitor everything you can think of. Since Arduino has shield footprint feature, you can connect this product directly to an Arduino compatible board or a different microcontroller, or find and connect it directly using the FTDI headers on it and examine the data using the Universal Reader Assistant.

SparkFun Concurrent RFID Reader - M6E Nano Features;

• Command with separate read and write levels adjustable from 0dBm to 27dBm in 0.01dB steps.
• 150 tags/sec to read 96-bit EPC
• Typical 80 ms for standard writing of 96-bit EPC
• EPCglobal Gen 2 (ISO 18000-6C) with 250kbps nominal backscatter rate
• In Shutdown Mode: 0.00025 W
