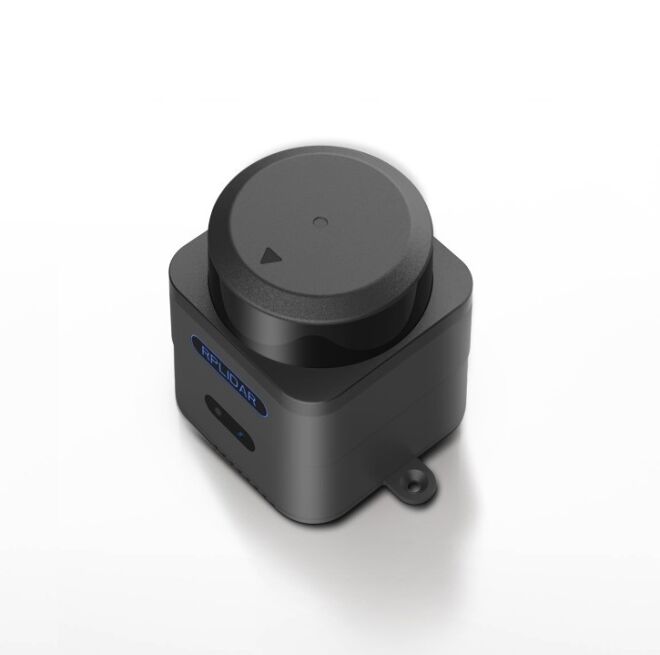

Slamtec Mapper M2M3 Lidar Mapping and Positioning Sensor

Slamtec Mapper M2M3 Lidar Mapping and Positioning Sensor

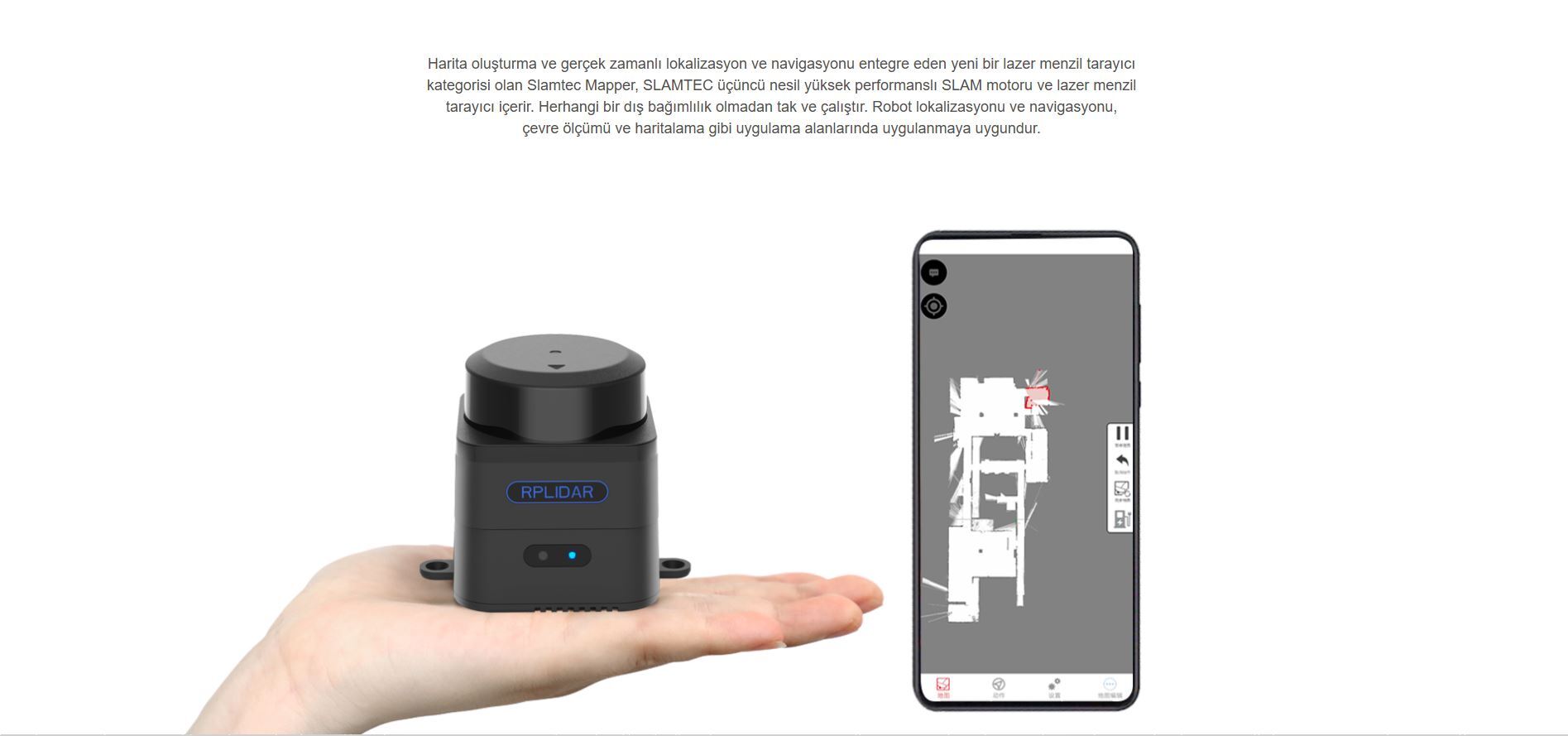

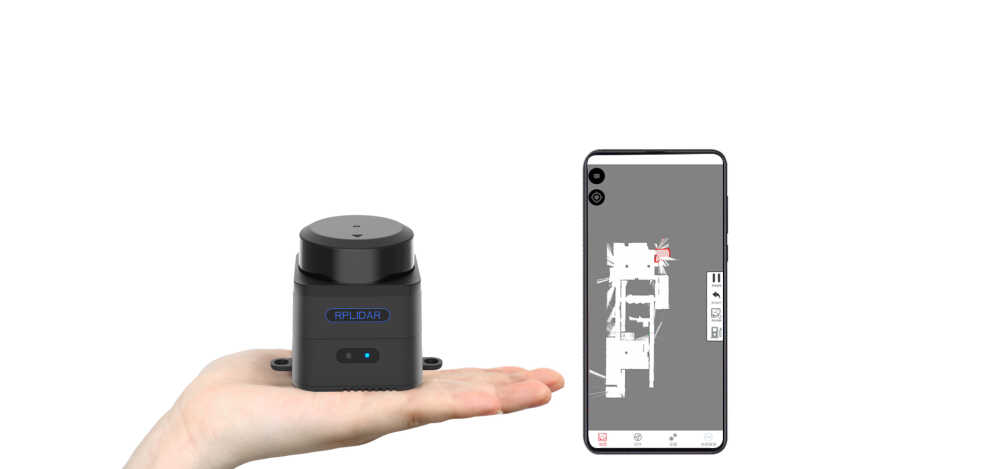

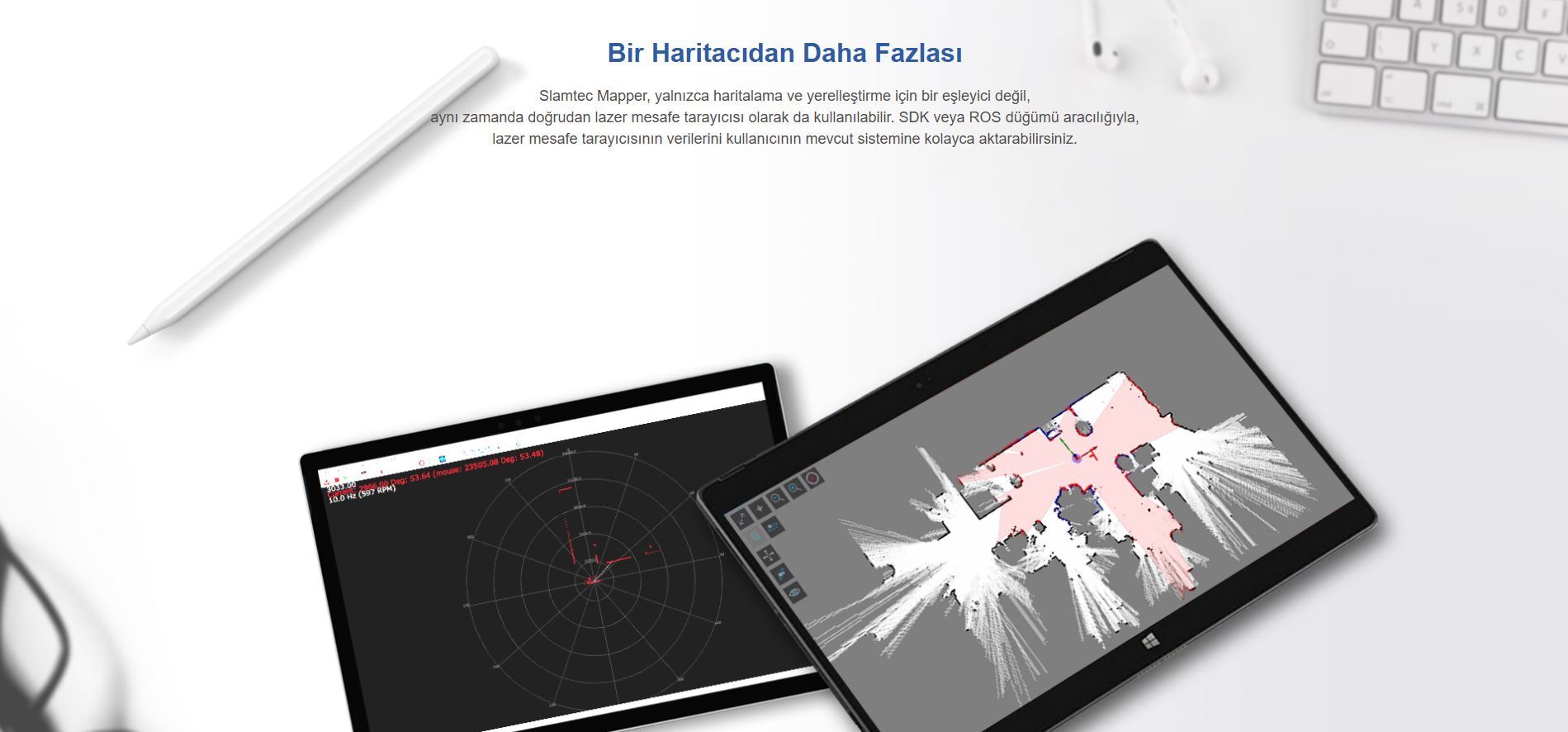

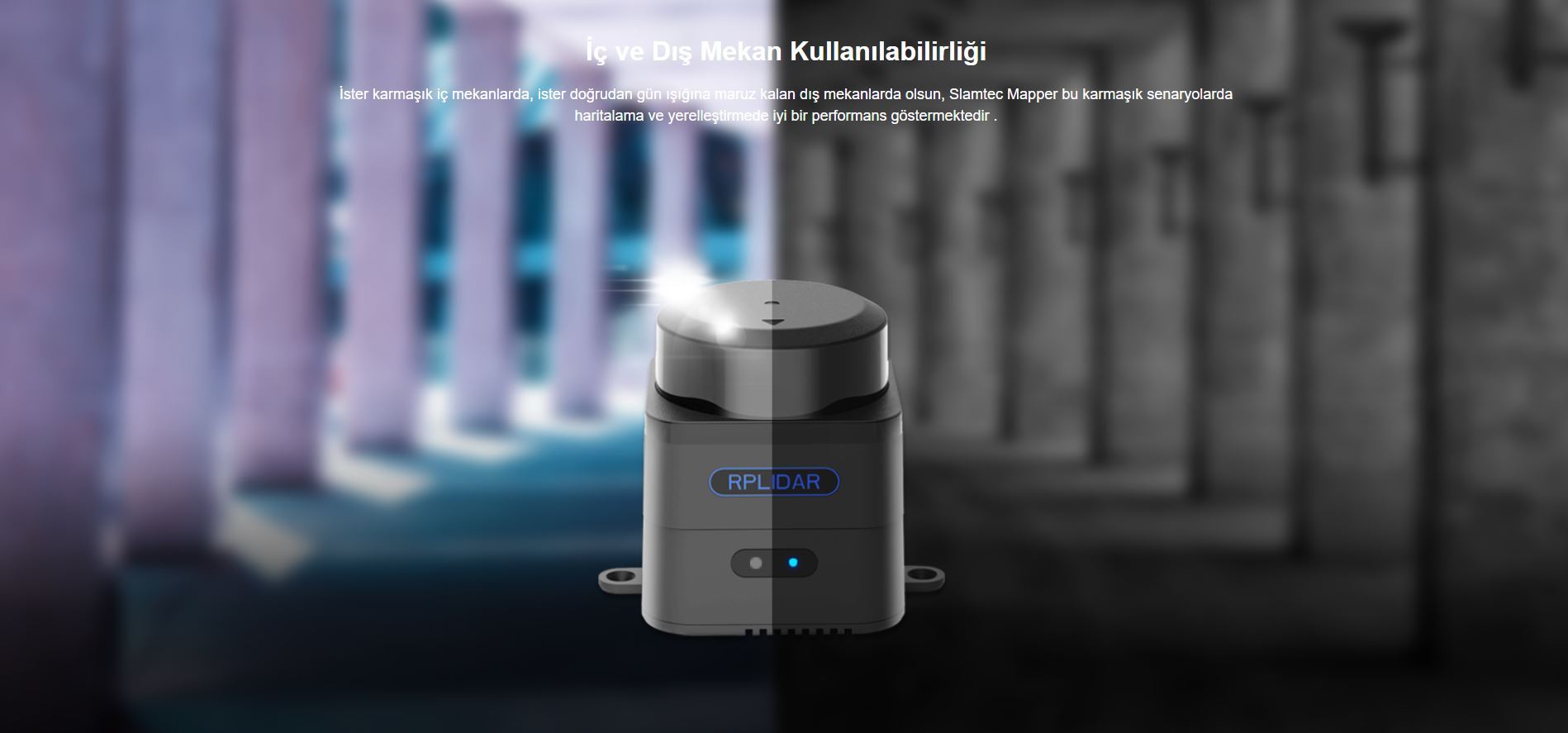

The Slamtec Mapper M2M3 Lidar Mapping and Positioning Sensor is an innovative 360-degree laser scanner developed by SLAMTEC, designed for robots and industrial applications. Equipped with advanced SLAM technology, this device provides real-time mapping and positioning with a measurement range of up to 40 meters. Its compact and user-friendly design ensures reliable performance both indoors and outdoors. It is ideal for commercial robots, outdoor robots, environmental scanning, and handheld mapping applications. With built-in Wi-Fi and Ethernet connectivity, data can be easily accessed, and it is fully compatible with ROS. Additionally, it complies with Class 1 laser safety standards, making it safe for human eyes.

Slamtec Mapper M2M3 Lidar Mapping and Positioning Sensor Technical Specifications:

• Measurement Range: 0.1 m – 40 m
• Sampling Frequency: 10 KHz
• Rotation Speed: 10 Hz
• Angular Resolution: 0.36°
• Motor: Brushless
• Dimensions: 77.1 × 57 × 65.5 mm
• Weight: 163 g
• System Voltage: 5 V
• System Current: 650 mA – 1300 mA
• Power Consumption: 3.25 W – 6.5 W

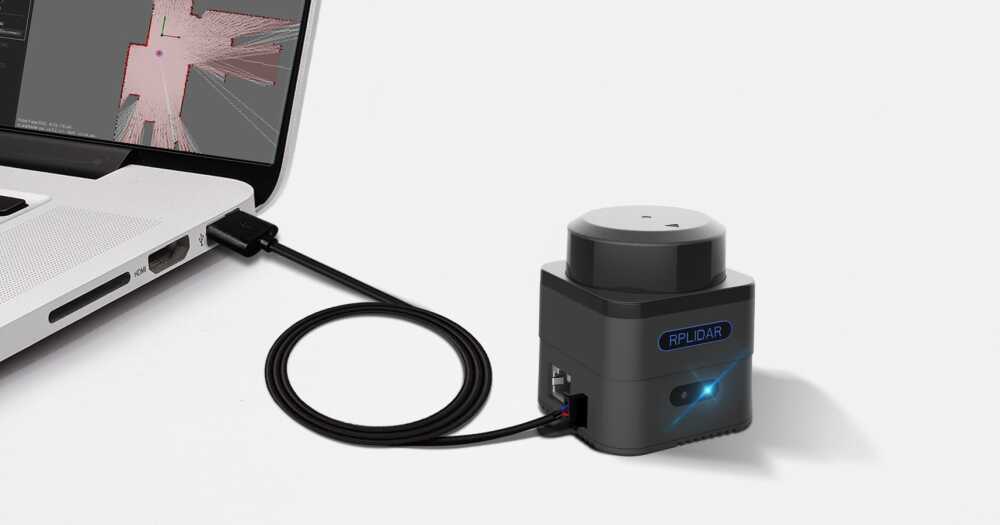

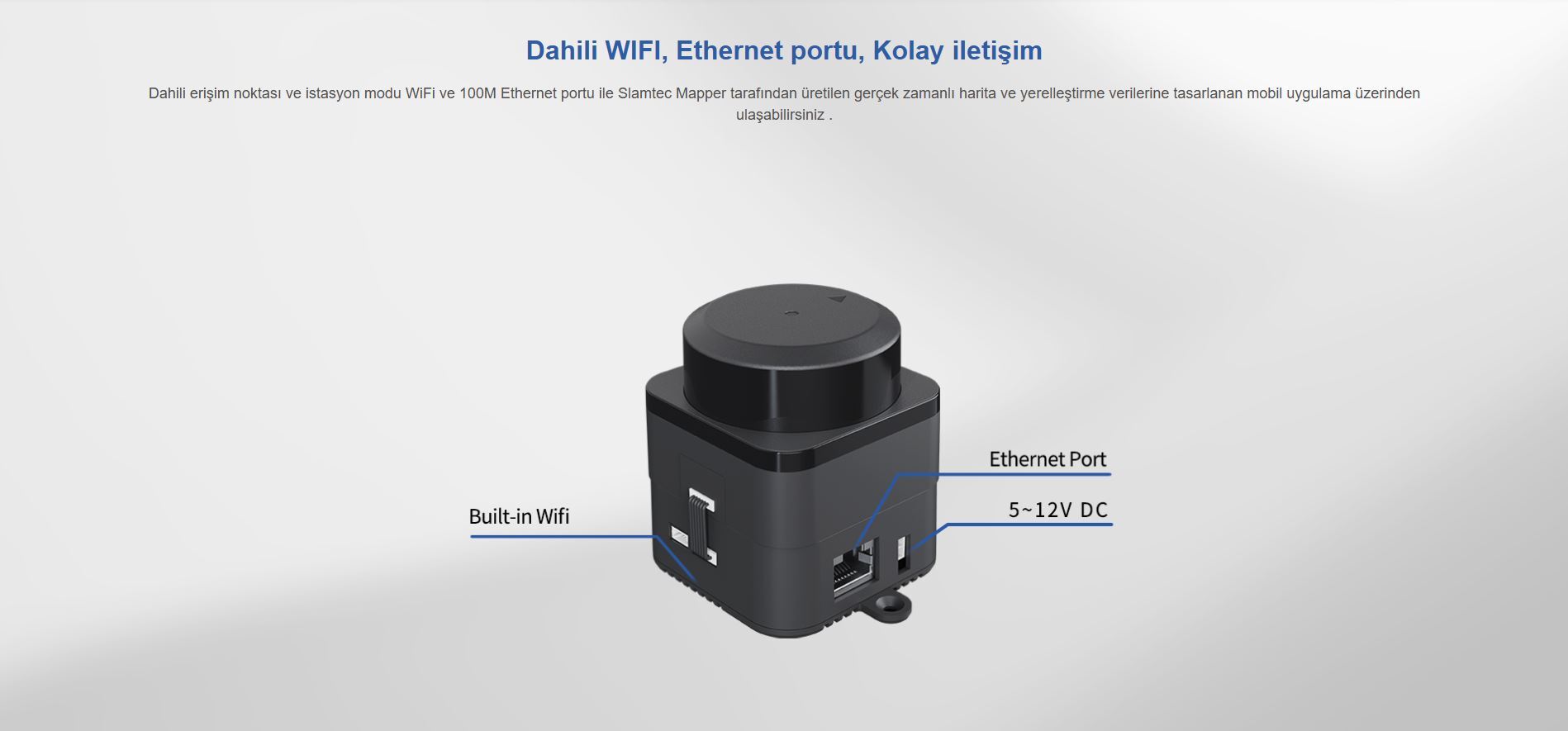

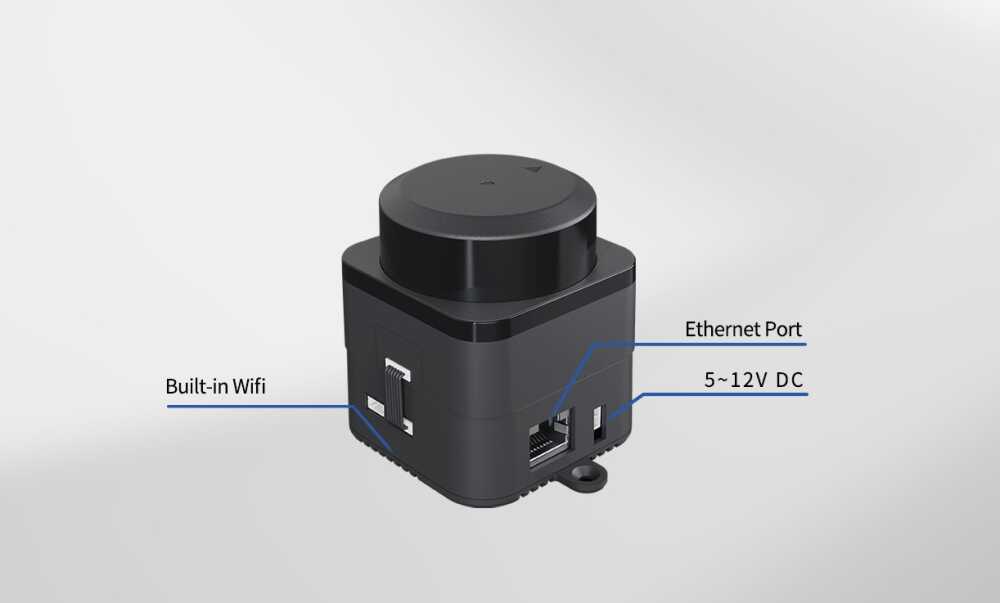

• Output: Ethernet (802.3/802.3u), Wi-Fi (802.11a/b/g/n/ac)
• Operating Temperature Range: -5°C – 45°C
• Angular Range: 360°
• Distance Resolution: 1 cm
• Accuracy: ≤3 cm
• Maximum Movement Speed: 2 m/s
• Data Refresh Rate: 10 Hz

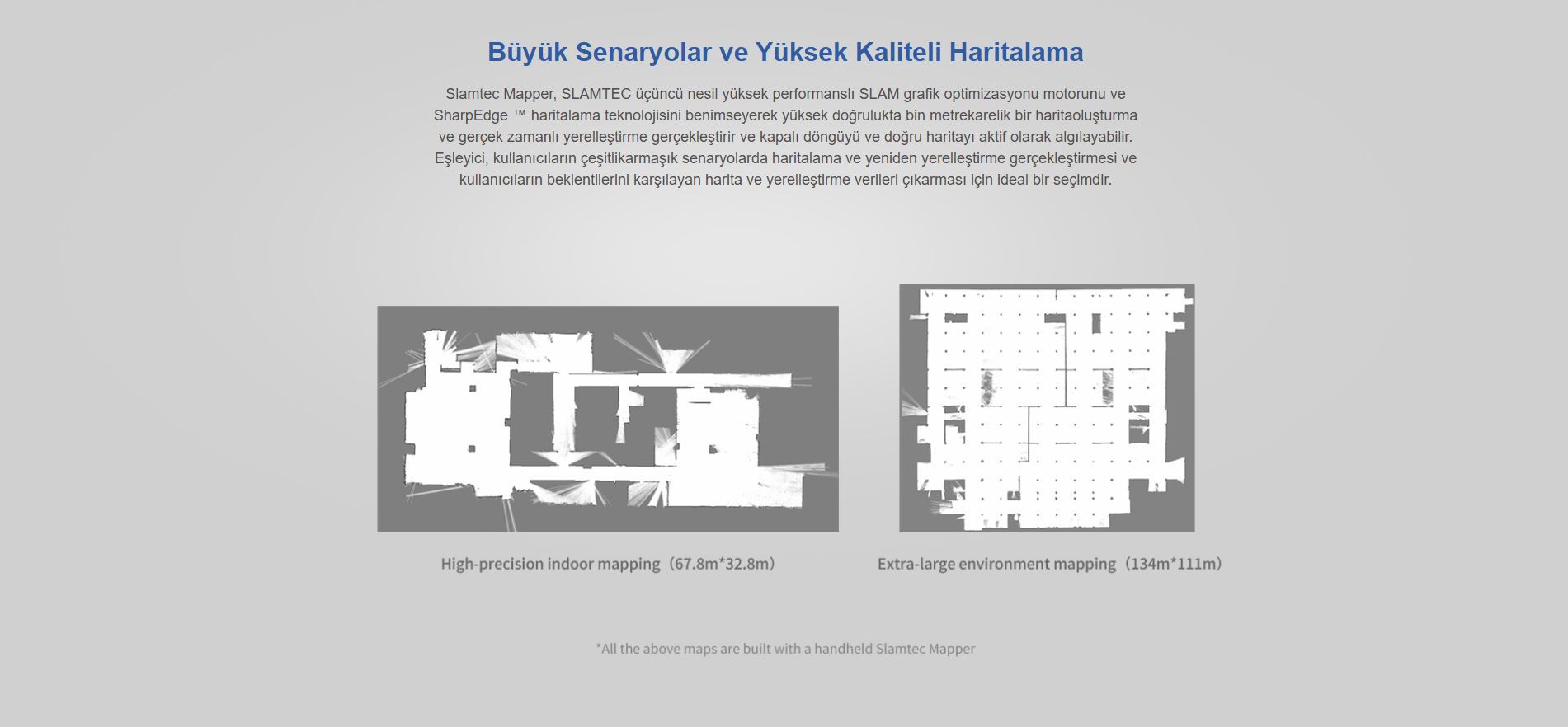

• Maximum Area: 300 m × 300 m
• Mapping Resolution: 0.05 m
• Mapping Accuracy: <0.02 m
• Graph Optimization Working Time: ~1 hour

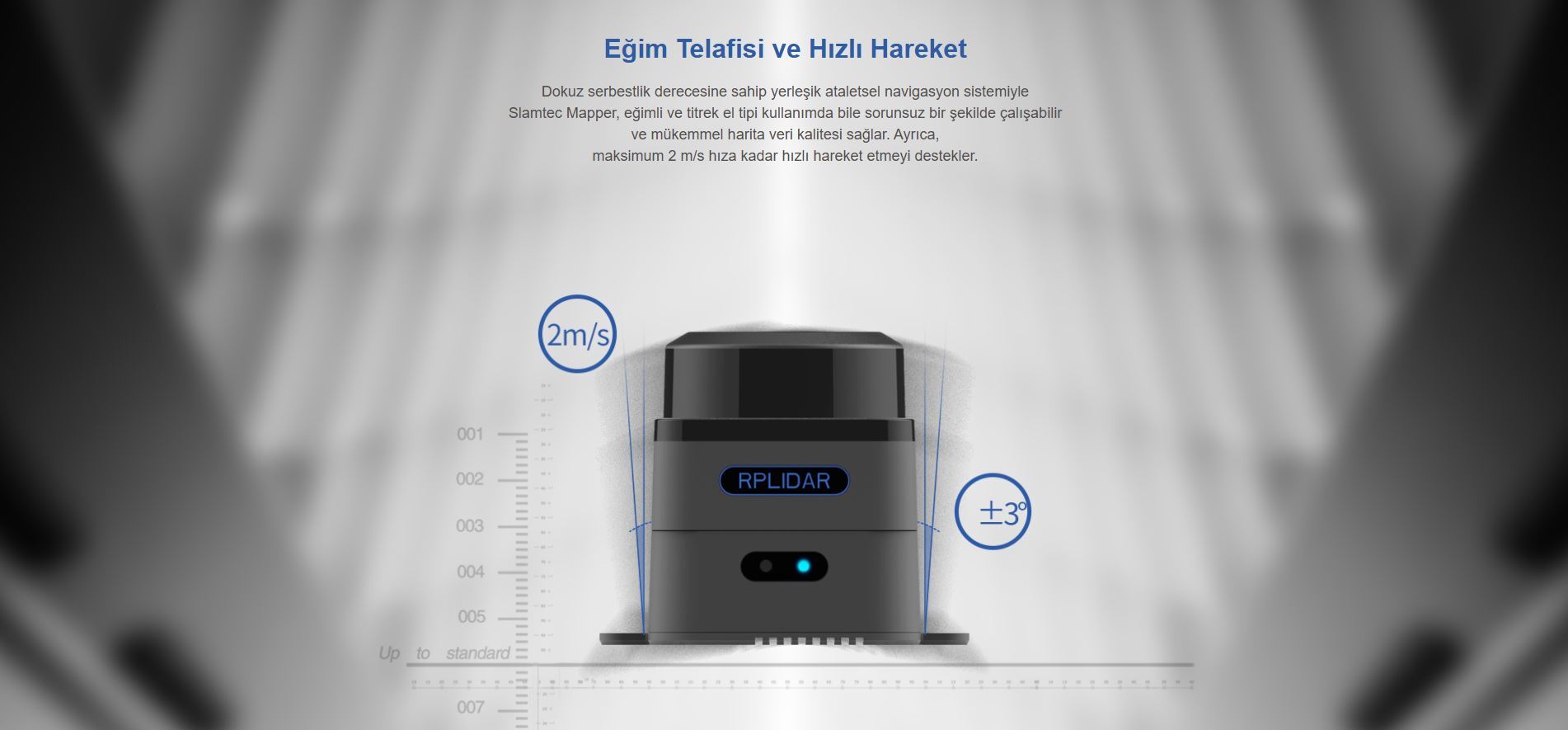

• Maximum Tilt Angle: ±3°
• Recommended Applications: Commercial robots, outdoor robots, environmental scanning, handheld mapping

Useful Links / Documents:

• Datasheet
• M2M3 Quick Start
• SDK & Firmware
• Slamtec RoboStudio
• 3D Models
