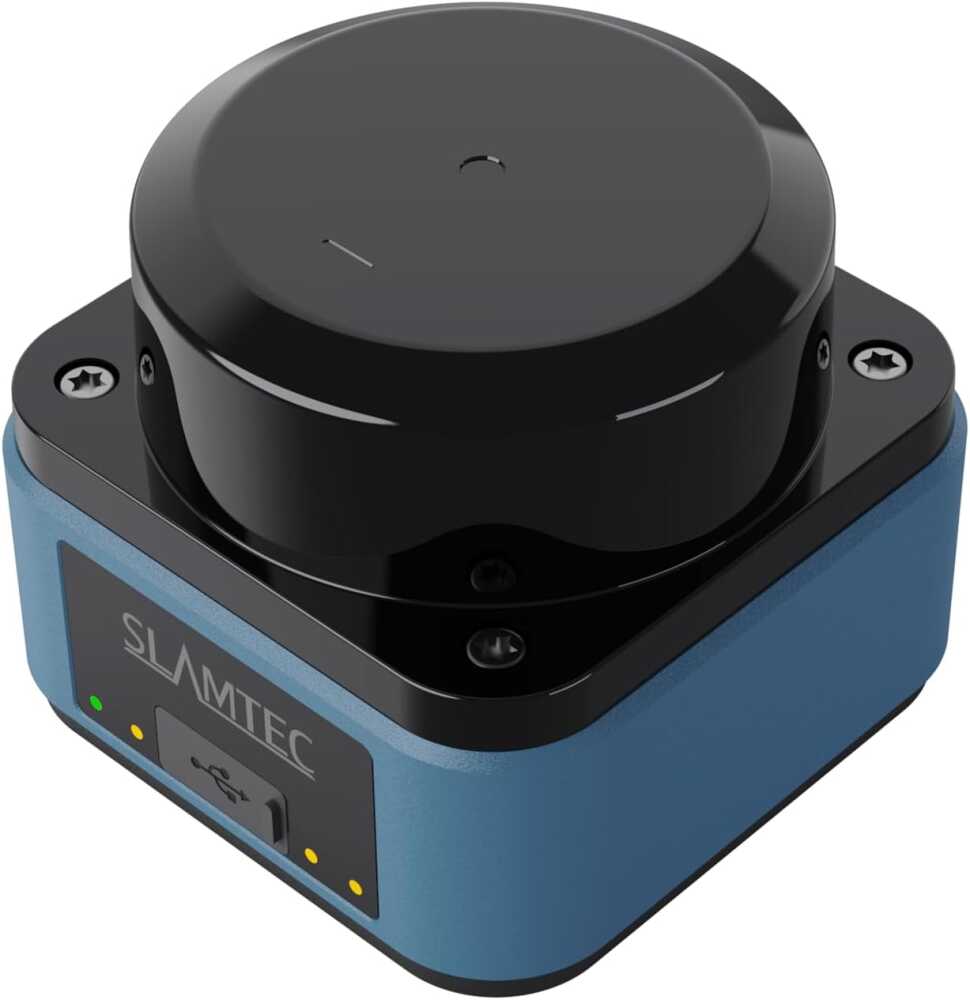

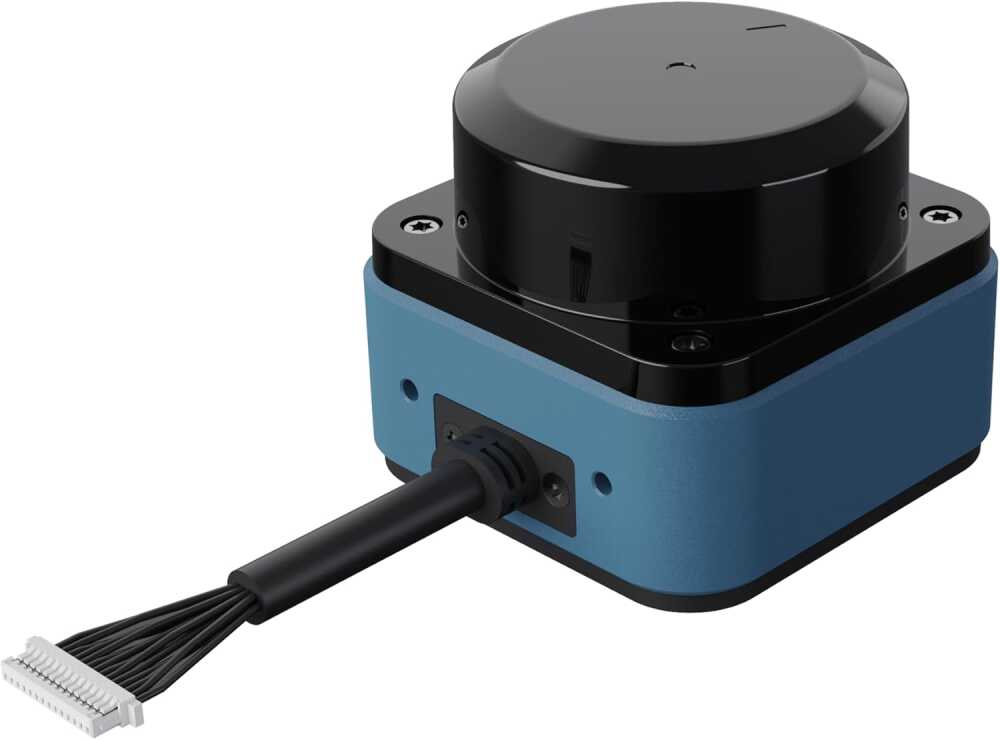

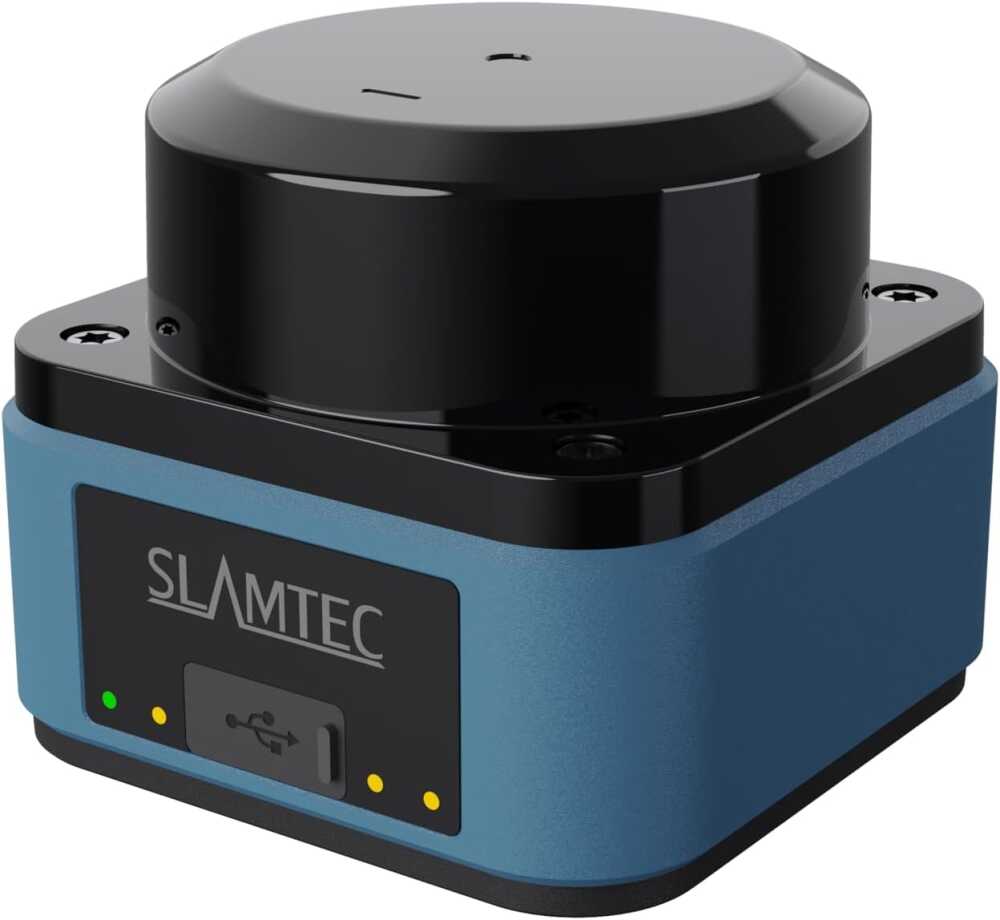

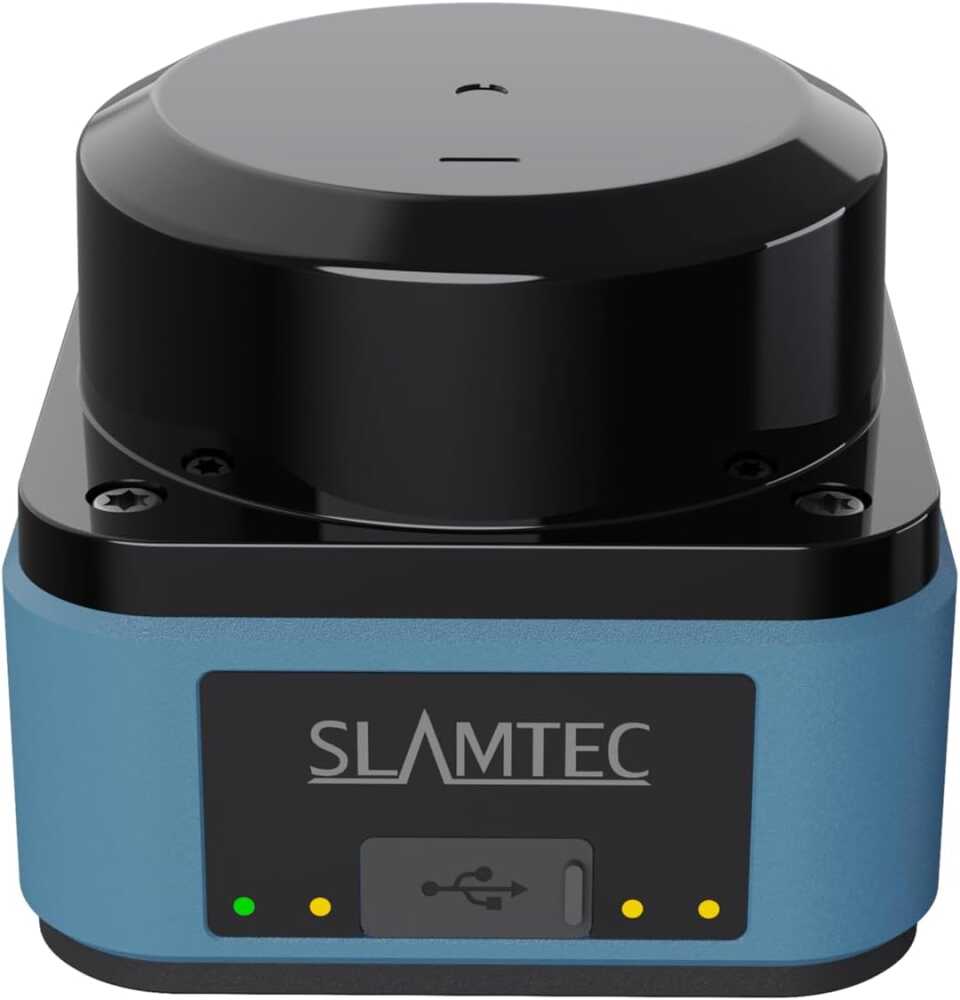

Slamtec LPX-E3 Industrial Area Monitoring LiDAR

Slamtec LPX-E3 Industrial Area Monitoring LiDAR

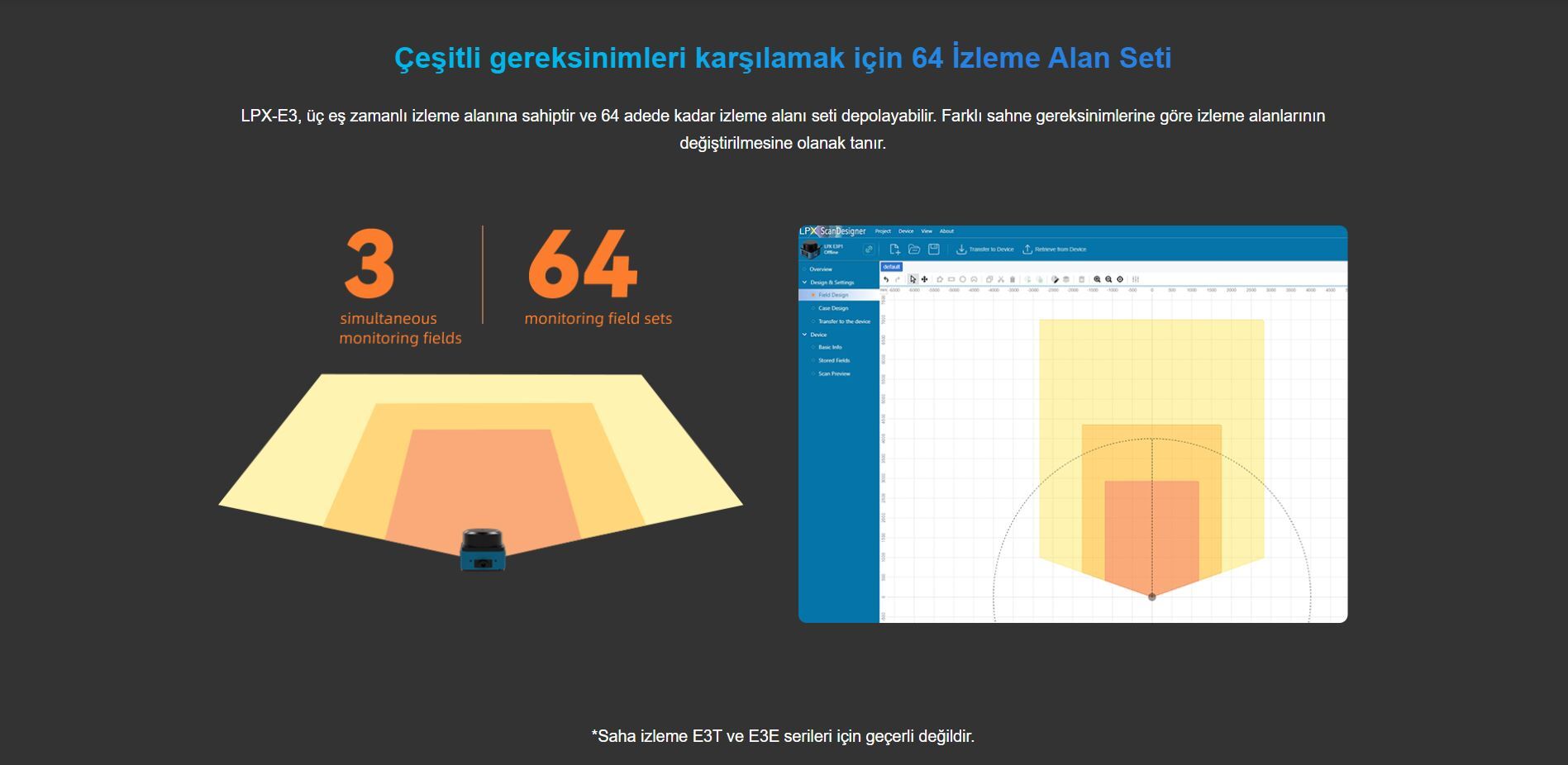

The LPX-E3 Industrial Area Monitoring LiDAR is an innovative 360-degree 2D LiDAR solution developed by SLAMTEC for industrial area monitoring applications. Equipped with advanced SL-DToF laser measurement technology, this device offers a measurement range of up to 40 meters, 0.1125° angular resolution, and sunlight resistance up to 80,000 lux. With its compact design and high reliability, it is ideal for industrial safety, intrusion detection, production line monitoring, and autonomous mobile robot (AMR/AGV) applications. Featuring flexible capabilities such as 64 configurable monitoring area sets and simultaneous monitoring of three areas, it easily adapts to various field requirements. In addition, the dedicated ScanDesigner configuration software provides customization and easy deployment.

Slamtec LPX-E3 Industrial Area Monitoring LiDAR Technical Specifications:

• Measurement Range: 0.05 – 40 m (≥70% Reflectivity), 0.05 – 15 m (≥10% Reflectivity), 0.05 – 5 m (≥2% Reflectivity)
• Scanning Angle: 360 degrees
• Angular Resolution: 0.1125°@10 Hz, 0.17°@15 Hz, 0.225°@20 Hz
• Scanning Frequency: 10/15/20 Hz

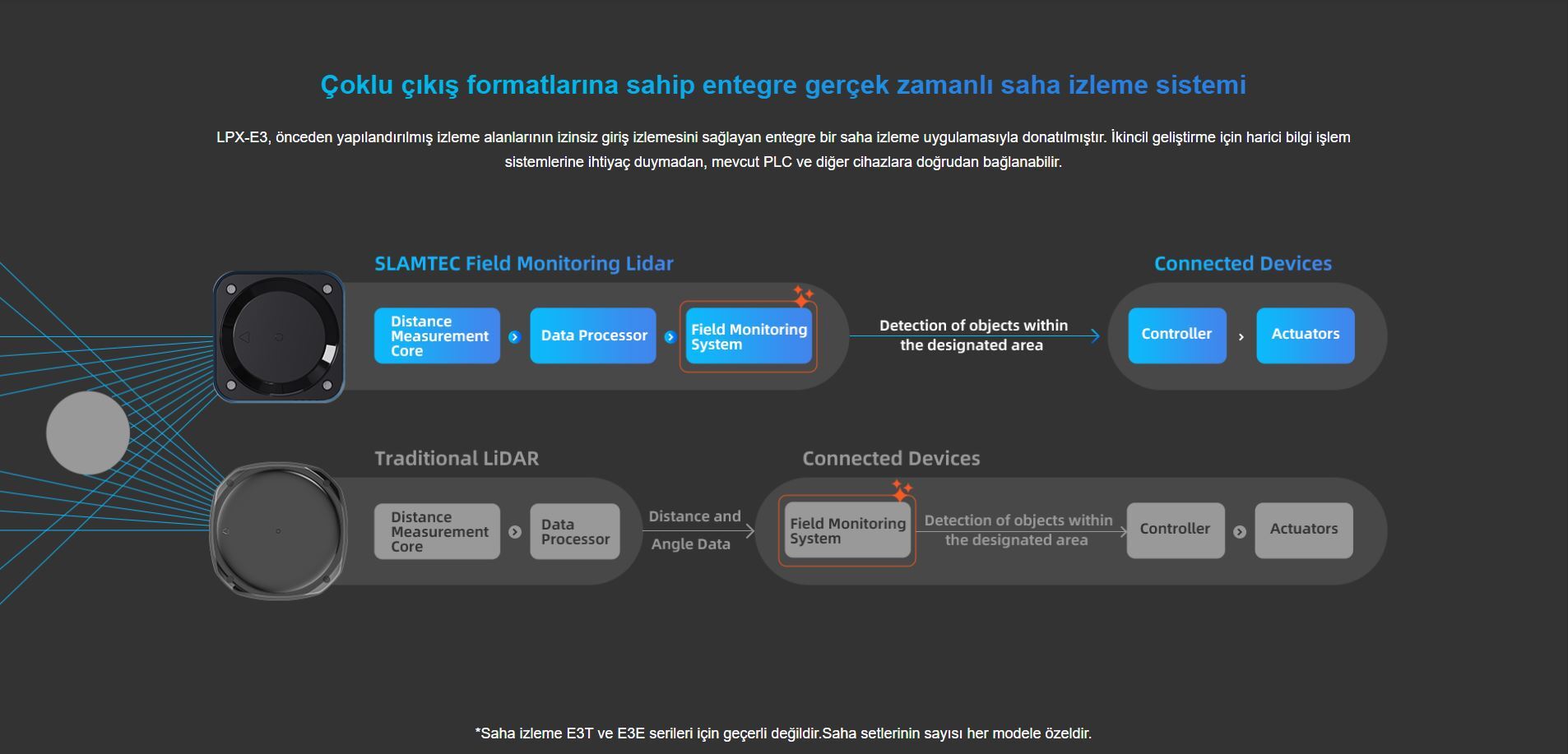

• Monitoring Area Sets: 64 (3 Areas per Set)
• Sunlight Resistance: ≥ 80,000 lux
• Blind Zone Range: 0.05 m
• Distance Resolution: 10 mm
• Distance Accuracy: ±30 mm
• Operating Temperature: 0°C – 50°C
• Dimensions: 56.63 × 56.63 × 48 mm
• Weight: 180 g
• Communication Interface: USB Type-C
• Laser Safety: Class 1 (Eye-safe)

Useful Links / Documents:

• Datasheet
• Product Introduction
• User Manual
• Field Monitoring Configuration Software
• 3D STEP
• 3D PDF
• 3D IGS
