SIM800C GPRS Module - Unregistered IMEI

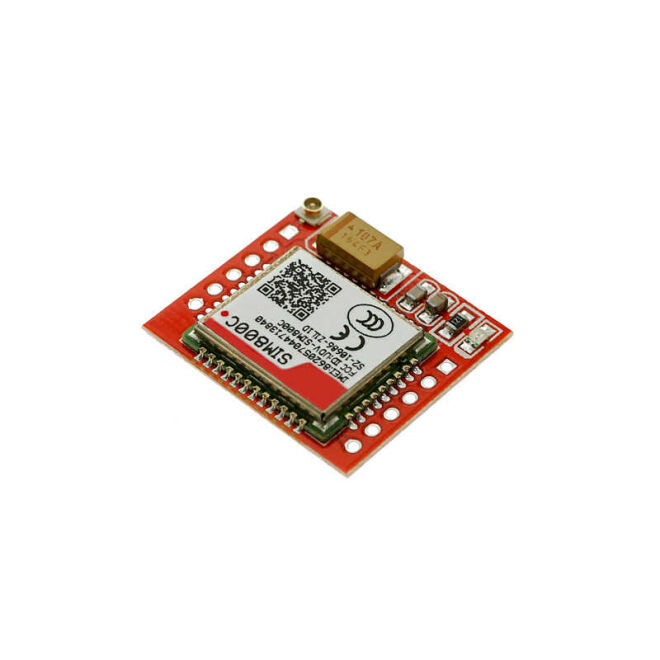

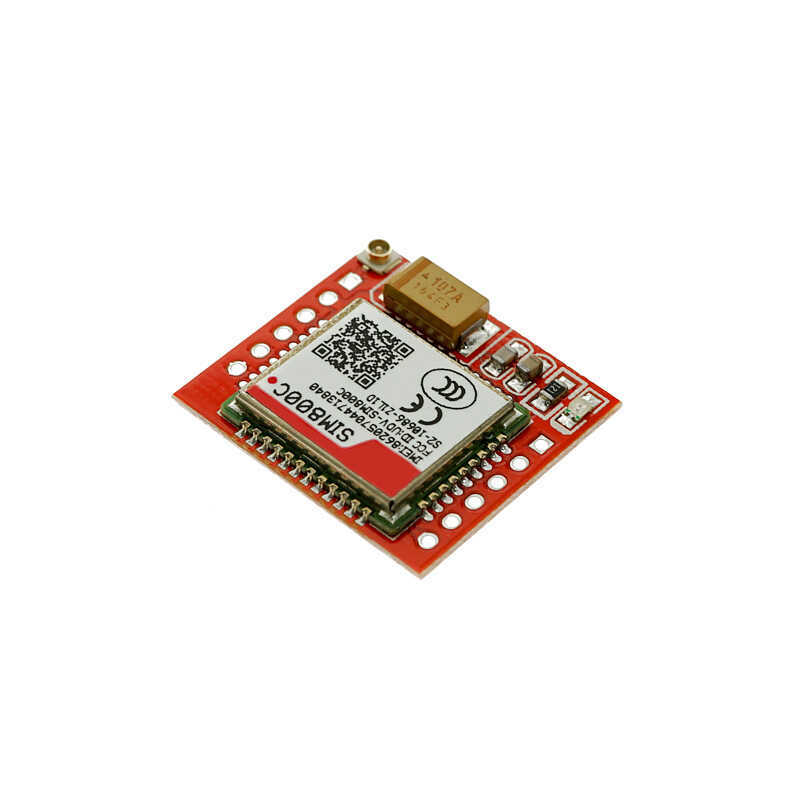

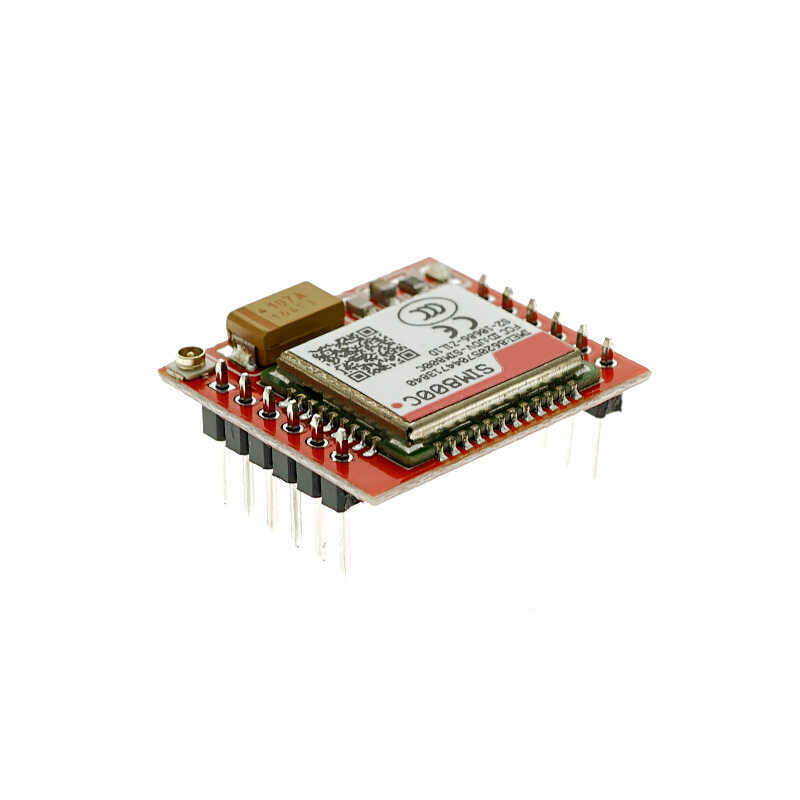

SIM800C GPRS Module

Note: This product is IMEI unregistered. For the IMEI registered product, click here .

The SIM800C GPRS Module is a compact communication solution capable of performing data transmission, SMS, and voice calls over the GSM/GPRS network. Thanks to its low power consumption and small form factor, it is highly suitable for IoT projects, remote monitoring, and control applications.

It can easily communicate with many microcontroller platforms such as Arduino, ESP32, STM32, and Raspberry Pi via UART (TX/RX). With its onboard micro SIM card slot, power regulation circuitry, and antenna connector, it can be quickly integrated into circuits without the need for additional hardware.

Supporting basic internet protocols such as HTTP and TCP/UDP, the SIM800C enables remote data transmission, SMS-based control, call management, and approximate location information via base stations. Its low power modes provide efficient operation in battery-powered projects.

SIM800C GPRS Module Technical Specifications:

• Operating Frequencies: GSM 850 / 900 / 1800 / 1900 MHz (2G)

• GPRS Class: Class 12 data communication support

• Supply Voltage: 3.4 V – 4.4 V (typical 4 V)

• Interface: UART serial communication (TX, RX, GND, etc.)

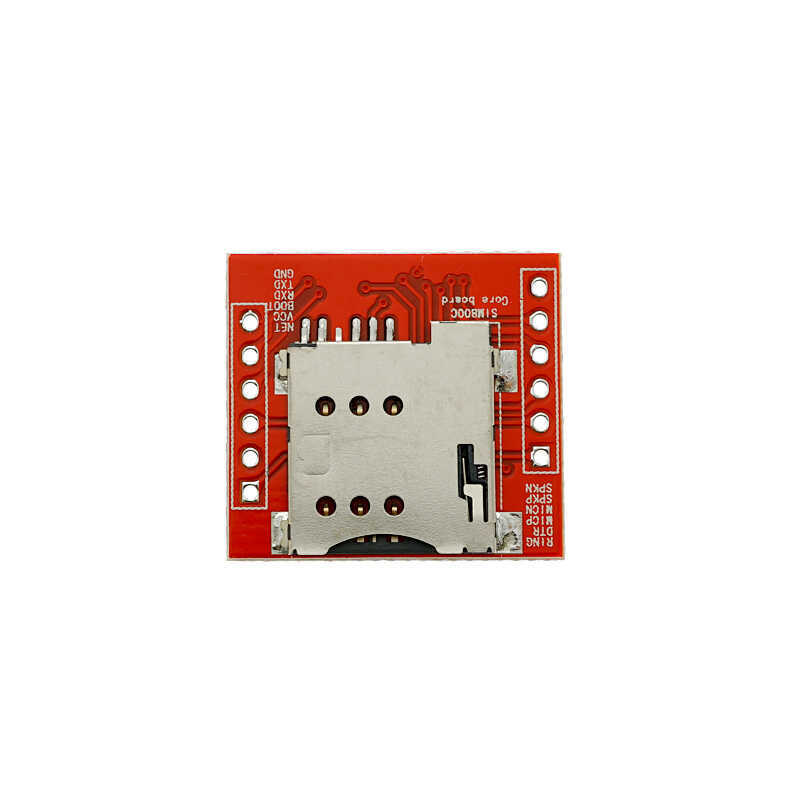

• SIM Card Slot: Micro SIM card slot supported

• Antenna: External helical antenna connection (antenna included)

• SMS Functions: Send/receive SMS in Text and PDU modes

• Voice Calls: Support for making, answering, and managing calls

• Supported Protocols: Basic internet protocols such as TCP/UDP and HTTP

• Control: Full control via AT command set

• Compatibility: Compatible with Arduino, ESP32, STM32, Raspberry Pi, and similar microcontroller boards

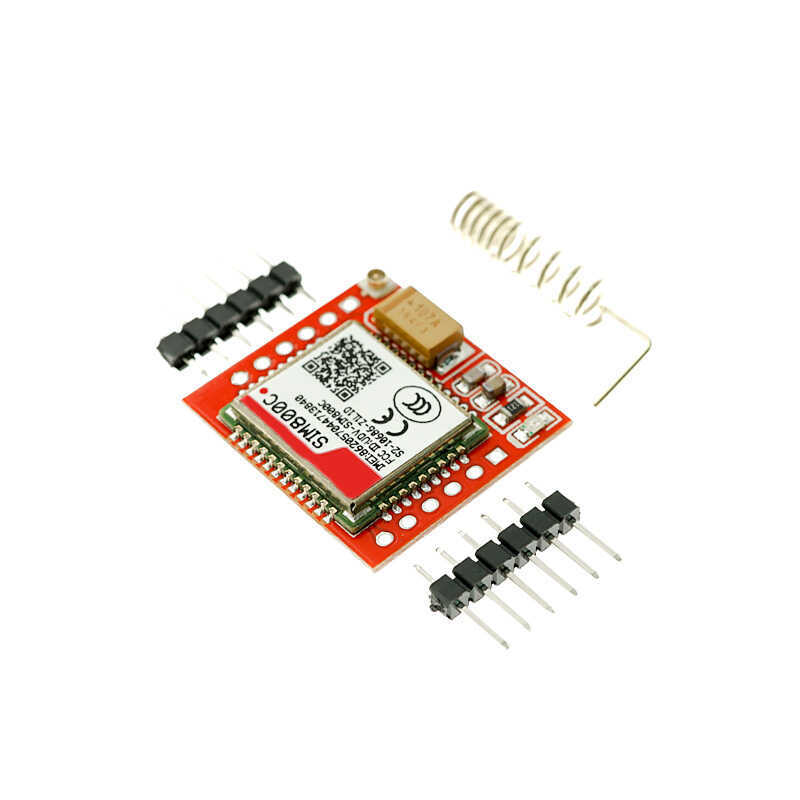

• Package Contents: SIM800C GPRS module, helical antenna, and solderable header pins
