Notify me when its in stockSeeedStudio GPRS Shield V3.0

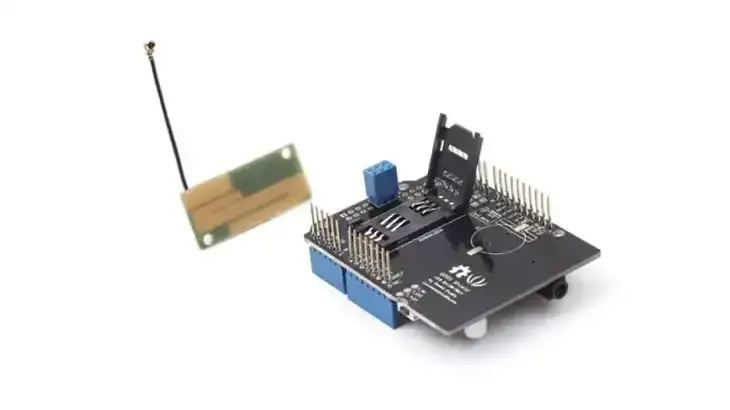

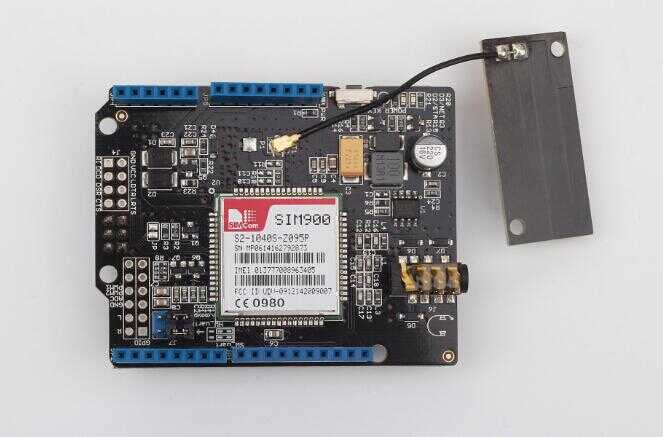

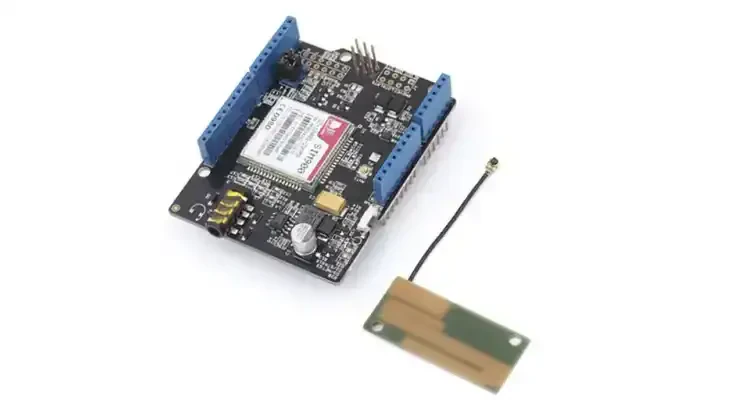

SeeedStudio GPRS Shield V3.0 is a SIM900-based GSM/GPRS expansion module designed for Arduino and compatible boards. It offers functions such as sending SMS and making voice calls. The shield features a SIM card slot, antenna, and a 3.5mm audio jack. It is an ideal solution for IoT projects and remote communication applications.
Product Features:
Compatible with standard Arduino and Arduino Mega
Selectable interface between hardware and software serial ports
Quad-band support: 850/900/1800/1900MHz
Supports TCP/UDP protocols
Full control via AT command set: Standard - GSM 07.07 & 07.05 and Enhanced - SIMCOM AT Commands
2-in-1 headset jack
Convenient external SIM card slot
Low power consumption: 1.5mA (in sleep mode)
Technical Specifications:
|
Compatible: Arduino UNO/Seeeduino directly ; Other main board via jumpers |
Selectable interface: UART, Software seria |
Quad band support: 850/900/1800/1900MHz |
| Communication support: Standard - GSM 07.07 & 07.05 and Enhanced - SIMCOM AT Commands |
Operation temperature: -40°C to +85 °C |
Protocol support: 0710 MUX protocol, embedded TCP/UDP protocol, FTP/HTTP, FOTA, MMS, embedded AT |
|
Certification of SIM900: CE, IC, FCC, ROHS, PTCRB, GCF, ICASA, REACH, AT&T |
Dimensions: 68.58 * 53.34mm |
Power supply: 5v via 5V pin, 6.5~12v via Vin pin |
Compatible Accessories:
