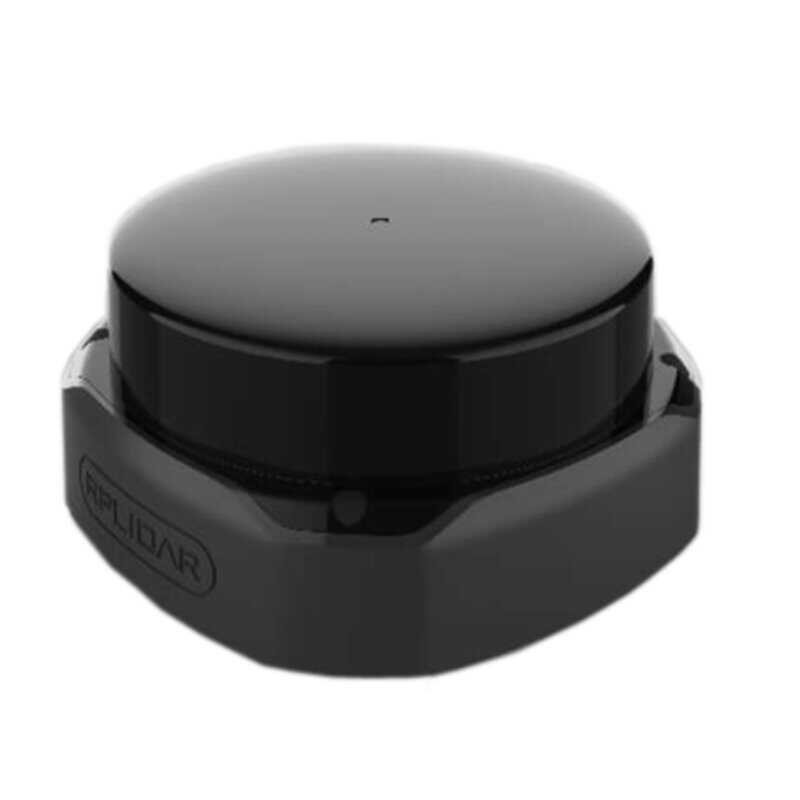

S2L RPLIDAR Laser Scanner - 18 Meters

S2L RPLIDAR Laser Scanner - 18 Meters

S2L RPLIDAR Laser Scanner, has attracted the attention of users with its special stylish design, slim size and easy portability! It has a viewing distance of up to 18 meters and gives precise results in areas such as map creation, location marking and object / environment modeling. It is equipped with DTOF technology, which makes it have excellent performance. It consists of a laser scanning core and a mechanical part that allows the core to rotate at high speed, so when the product starts to work, the laser will start to rotate and scan clockwise.

S2L RPLIDAR Laser Scanner Technical Specifications:

• Dimension: 77 x 77 x 38.85 mm
• Weight: 190 g
• System Voltage: 5V
• Distance Resolution: 13 mm
• Blind Range: 0.05mm
• Sampling Frequency: 8 / 15 Hz (Typical)
• Distance Range: 18 m
• Sampling Rate: 3200 times/s
• Angle Resolution: 0.12°
• Range Accuracy: ±30mm
• Power Consumption: >2W
• Communication Interface: TTL UART
• Level of Evidence: IP65
• Laser Safety Class: 1
• Uses: Indoors and Outdoors
• Temperature Range: -10°C / 50°C
