RD-03E Multi-Object Detection Radar

RD-03E Multi-Object Detection Radar

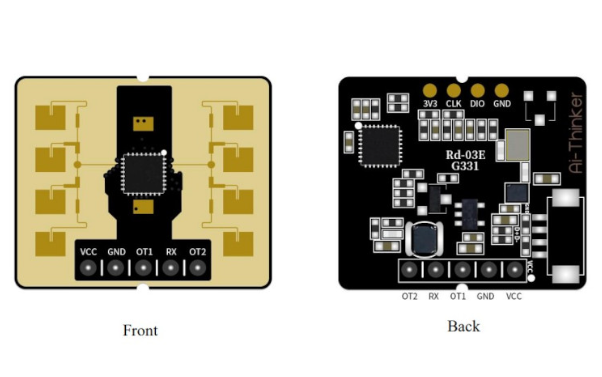

The RD-03E Multi-Object Detection Radar is a radar module developed by Shenzhen Ai-Thinker, operating in the 24 GHz ISM band. This radar offers advanced features for motion detection, micro-motion detection, distance measurement, and gesture recognition in both indoor and outdoor environments. It is specifically optimized to detect human presence and distinguish between moving or micro-moving objects. The RD-03E has a compact design with a small size (28 x 24 mm) and an integrated antenna, allowing for easy integration in various applications.

Technical Specifications of RD-03E Multi-Object Detection Radar:

• Frequency Band: Operates in the 24 - 24.25 GHz ISM band.
• Detection Distance:Moving Human Detection: Maximum 6 meters. Micro Motion Detection: Maximum 3.5 meters.
• Detection Angle: Azimuth angle: ±20°. Elevation angle: ±40°.
• Resolution: 30 cm - 350 cm with ±5 cm accuracy. 350 cm - 600 cm with ±5% accuracy.
• Antenna Structure: Equipped with a high-performance antenna consisting of 1 transmitter and 1 receiver.

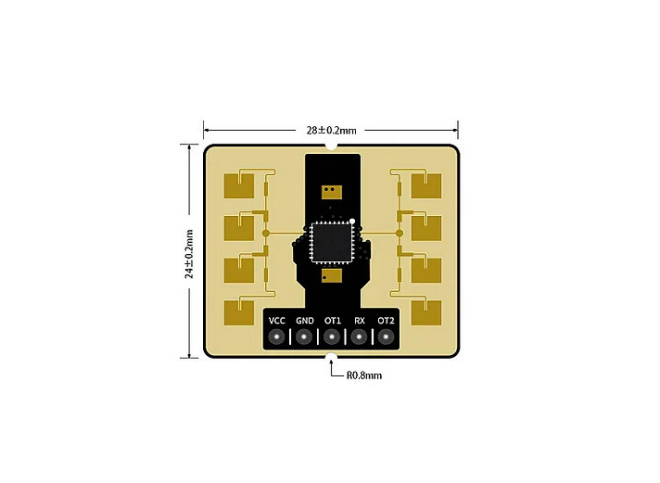

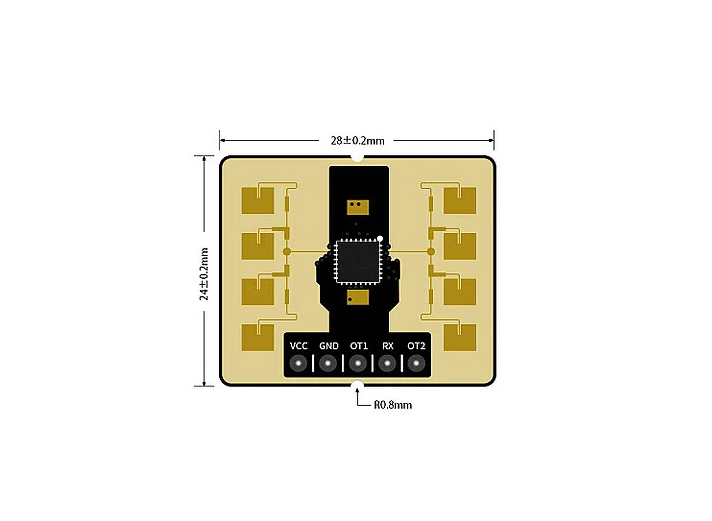

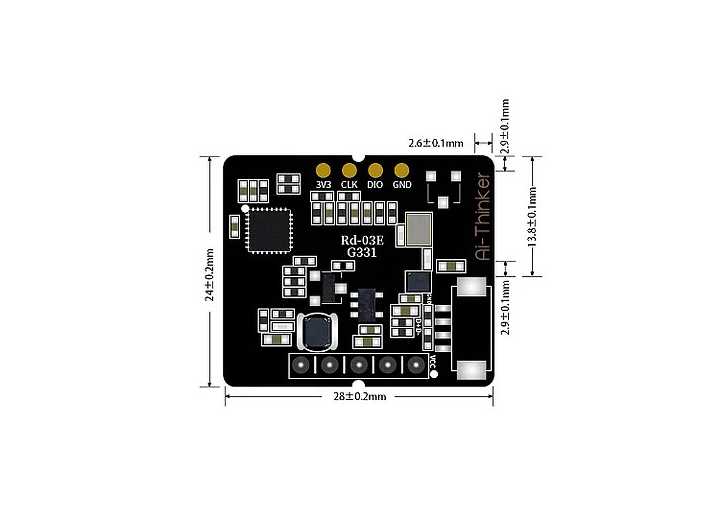

• Size: 28 mm x 24 mm (±0.2 mm).
• Power Supply: 5V single power supply, with a current of ≥ 200 mA.
• Connection Interface: UART with a data transmission rate of 256,000 bps.
• Operating Temperature: -40°C to 85°C.
• Mounting: Supports wall mounting capabilities.
