Raspberry Pi HQ Camera - M12

Brand
Raspberry Pi
Product Code
23293
Fiyat
: 2,150.33 TL + VAT
KDV Dahil Fiyat
: 2,580.39 TL

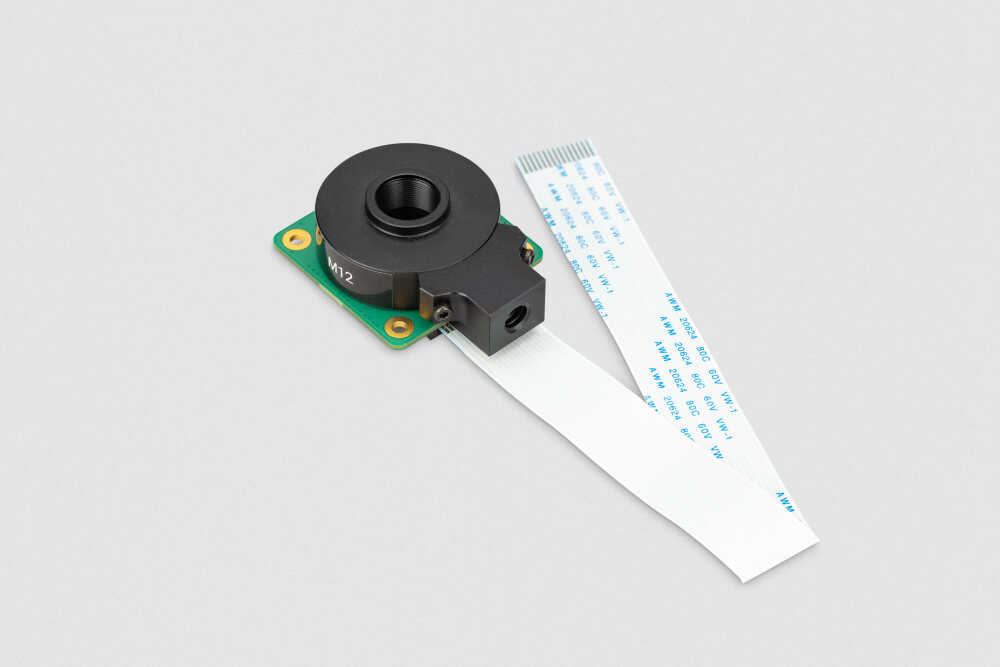

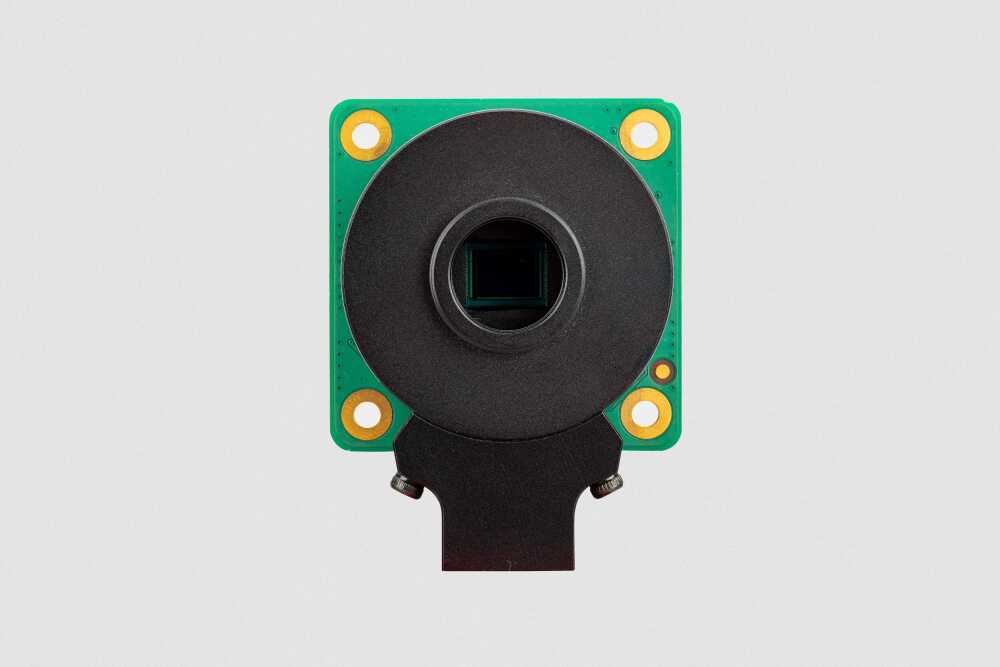

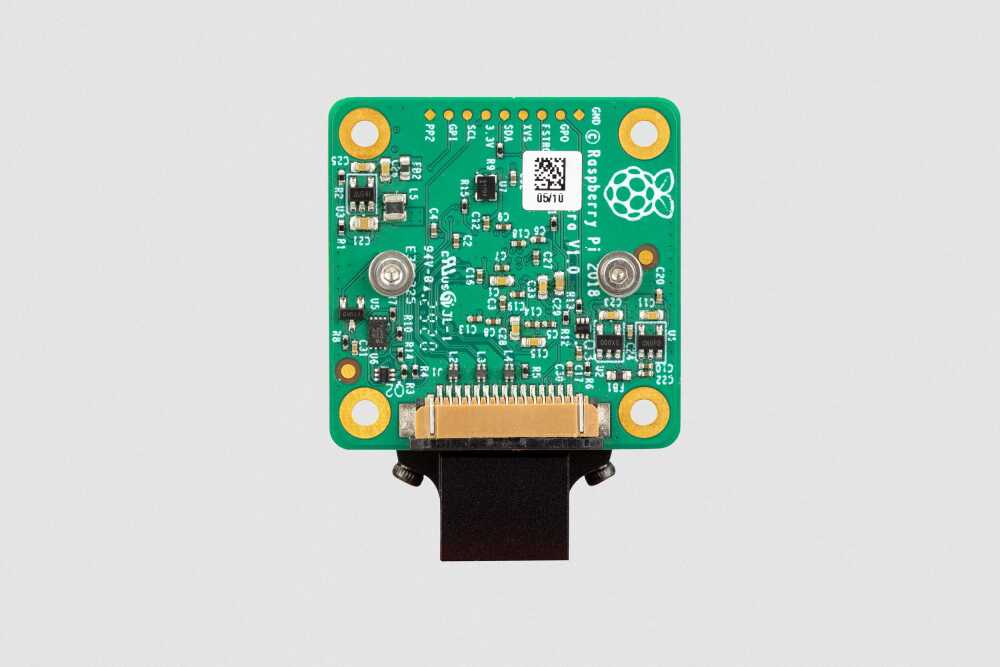

Raspberry Pi High-Quality Camera - M12 Mount

The Raspberry Pi High-Quality Camera - M12 Mount is a new version of the original Raspberry Pi HQ Camera, featuring a modified metal construction that naturally supports M12-mount lenses. While the original High-Quality Camera was designed to natively support C-mount lenses (and CS-mount lenses via an adapter), this version has been specifically designed for M12 lenses in response to high demand from both manufacturers and industrial customers. The M12 version is identical in terms of both technical specifications and physical dimensions (except for the front metal housing!). It retains the excellent 12MP Sony IMX477 sensor and 1/4” -20 tripod mount from the original. This camera module accepts any M12 mount lens. It will not work with C/CS mount lenses! A lens is required! This camera module will not function without a lens. The lens is not included and must be purchased separately. To use this camera with a Raspberry Pi Zero, you will need the Zero Camera Adapter Cable.

Features:

  • The Raspberry Pi M12 High-Quality Camera module has 12-megapixel resolution and a 7.9 mm diagonal sensor for impressive low-light performance.
  • The camera comes with a 200 mm FPC cable for Raspberry Pi connection, an integrated 1/4”-20 tripod mount, and a milled aluminum M12 lens mount.
  • A soft lens protector/cover is included and pre-installed.
  • Designed to work with interchangeable M12 lenses, providing maximum flexibility for your Raspberry Pi camera projects.

Compatibility:

  • The Raspberry Pi M12 HQ Camera module is compatible with all Raspberry Pi models with a full-size CSI camera connector, starting from the Raspberry Pi 1 Model B, using the latest Raspberry Pi OS software version.

Package Contents:

  • HQ Camera module - M12 Mount, integrated tripod mount (installed)
  • Soft lens cover (installed)
  • 200 mm ribbon cable (installed)
  • 3x lens locking rings (one is required for M12 lens use, the other two are spares)

Specifications:

  • Sony IMX477R stacked, backlit sensor
  • 12.3 megapixels
  • 7.9 mm sensor diagonal
  • 1.55 μm × 1.55 μm pixel size
  • Output: RAW12/10/8, COMP8
  • Back Focus: 2.6 mm–11.8 mm
  • Lens Standards: M12
  • IR Cut Filter: Integrated
  • Ribbon Cable Length: 200 mm
  • Tripod Mount: 1/4”-20

Compliance:

  • FCC 47 CFR Part 15, Subpart B, Class B Digital Device
  • Electromagnetic Compatibility Directive (EMC) 2014/30/EU
  • Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU

Useful Documents:
