Raspberry Pi HQ Camera

High-Quality Raspberry Pi Camera

The High-Quality Raspberry Pi Camera is the latest camera accessory produced by Raspberry Pi. It offers higher resolution (12 megapixels, compared to 8 megapixels) and greater sensitivity (approximately 50% larger area per pixel in advanced low-light performance) compared to the current Camera Module v2. It is designed to work with interchangeable lenses in both C and CS mount form factors. Other lens form factors can be used with lens adapters from third parties.

The High-Quality Camera has become an alternative to the Camera Module V2 for industrial and consumer applications, including security cameras, which require the highest level of visual accuracy and/or specialized optical integration. It is compatible with all Raspberry Pi models, starting from the Raspberry Pi 1 Model B, as long as the latest software version is used via www.raspberrypi.org. (This excludes early Raspberry Pi Zero models, which lack the necessary FPC connector. An additional sold FPC adapter is required for later Raspberry Pi Zero models.)

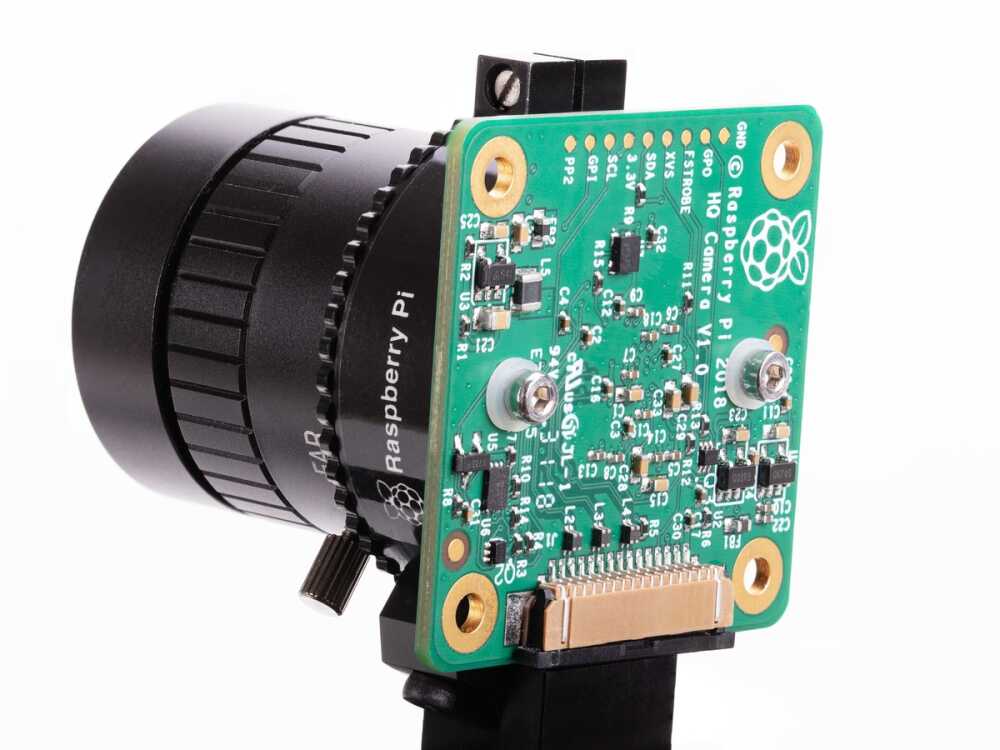

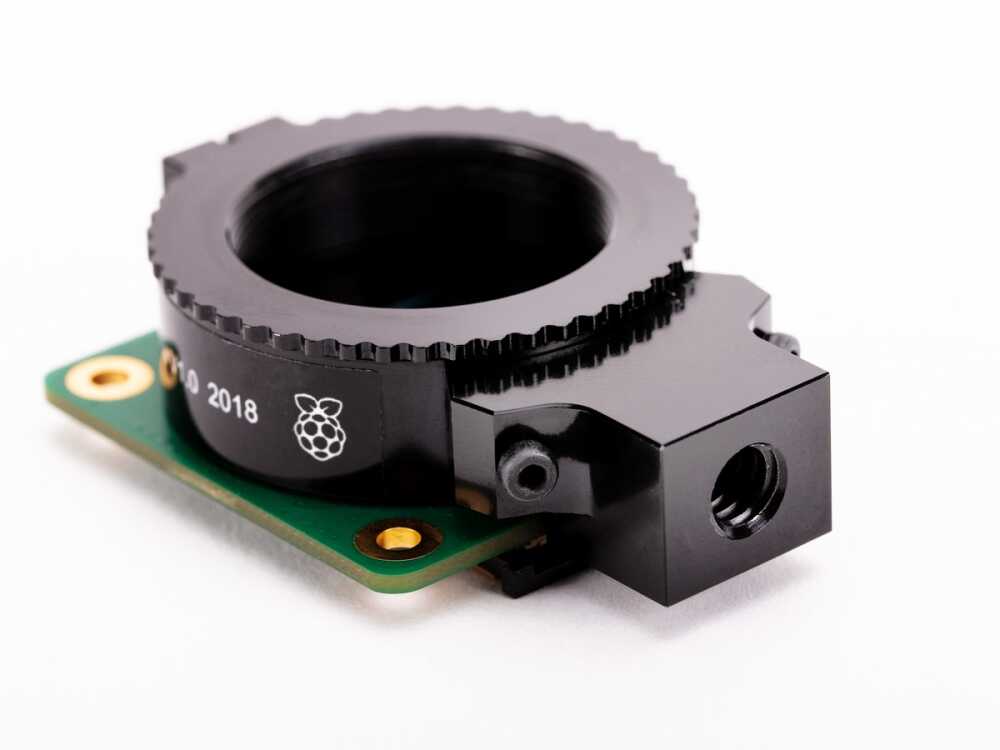

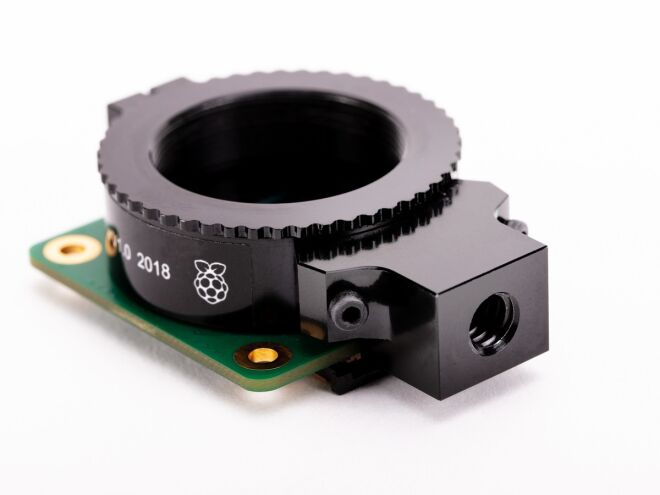

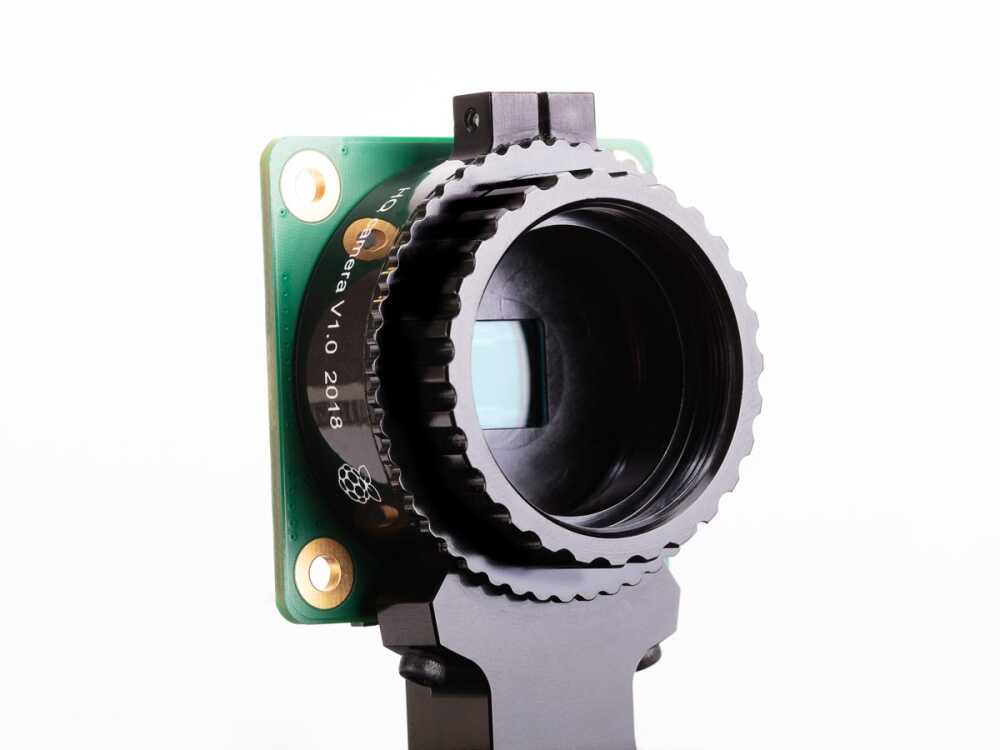

The package includes a circuit board carrying a Sony IMX477 sensor, an FPC cable for Raspberry Pi connection, a milled aluminum integrated tripod mount, a lens mount with focus adjustment ring, and a C-CS mount adapter.

The product must be used with Raspberry Pi HQ Camera lenses; otherwise, performance cannot be guaranteed.

Features:

  • Sensor: Sony IMX477R stacked, backlit sensor
  • Resolution: 12.3 megapixels
  • Sensor Diagonal: 7.9 mm
  • Pixel Size: 1.55 μm × 1.55 μm
  • Output: RAW12/10/8, COMP8
  • Back Focus: Adjustable (12.5 mm–22.4 mm)
  • Lens Standards: C-mount
  • CS-mount (C-CS adapter included)
  • IR Cut Filter: Integrated (removable to enable IR sensitivity, change is irreversible)
  • Ribbon Cable Length: 200 mm
  • Tripod Mount: 1/4”-20
  • Production Lifespan: The Raspberry Pi High-Quality Camera will remain in production until at least January 2026.
