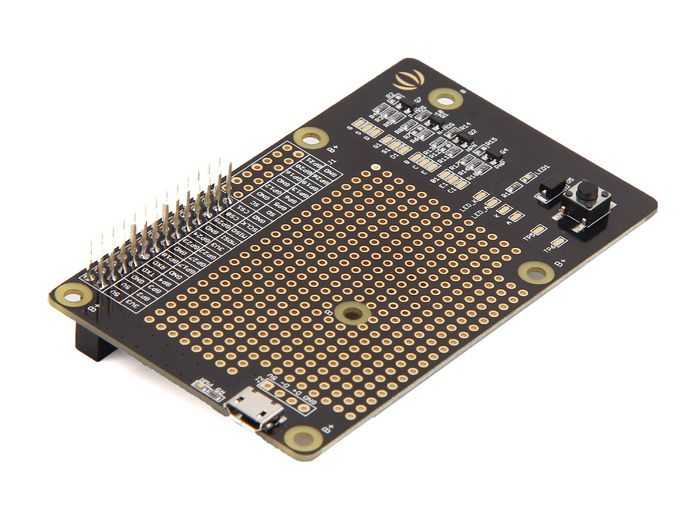

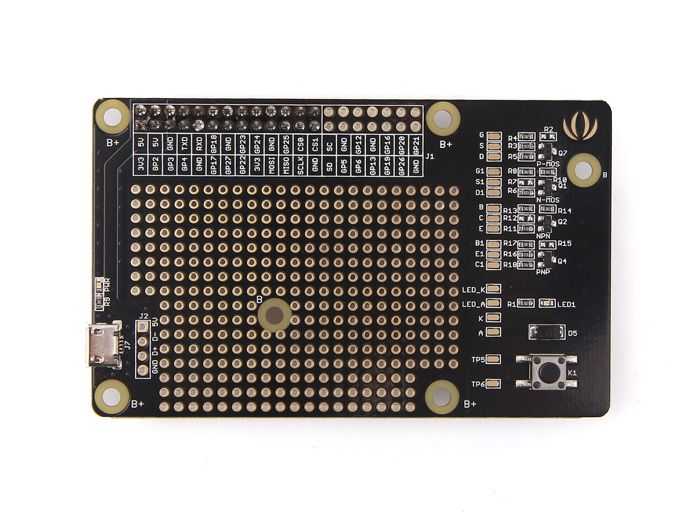

Raspberry PI Breakout Board

Raspberry Pi Breakout Board for Raspberry Pi is a prototype board that you can combine your raspberry pi with other components, modules.

As a prototype board, it also provides power ,state indicator light, button and universal transistor,such as NPN,PNP,N-MOS,P-MOS.

Technicial Specifications:

• Compatible with Raspberry Pi

• Micro usb power support

• Basic Circuit: status indicator led, button and universal transistor (NPN, PNP, N-MOS, P-MOS)

• 3.3 volts, 5 volts and earth power elements can be easily supplied anywhere on the board.

• Dimensions: 125mm x65mm x29mm

• Weight: 40g

Documents:

• Ürün kurulum ve detaylı bilgi
• PCB çizimi için tıklayınız.
