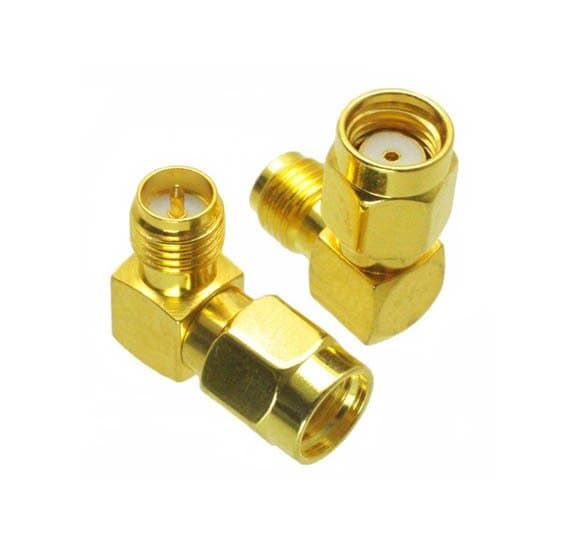

R/A RP-SMA Male to RP-SMA Female

R/A RP-SMA Male to RP-SMA Female

TYPE SMA is one kinf of RF coaxial connectors that is widely applied,with small-sized thread coupling,characteristic impedance is 50 Ω,This SMA series is small threaded coaxial connectors with high frequency bandwidth, excellent performance, high reliability and long life.

Product Specification:

• Temp range:-65～+165℃ (PE Cable-40～+85℃)
• Vibration:MIL-STD-202,Method 213
• Impedance:50Ω
• Frequency Range：DC～12.4GHz
• Working Voltage：335V max
• Insulation resistance≥ 5000 MΩ
• Insertion loss≤0.15 dB/3GHz
• Category: Adapters, Interconnects
• Family: Coaxial, RF Adapters
• Series: RP-SMA to SMA
• Convert From (Adapter End): RP-SMA Plug,female Pin
• Convert To (Adapter End): SMA Plug,male Pin
• Style: straight
• Contactor plating: Goldplated
• Plating: Goldplated

• Mounting Type: Free Hanging
