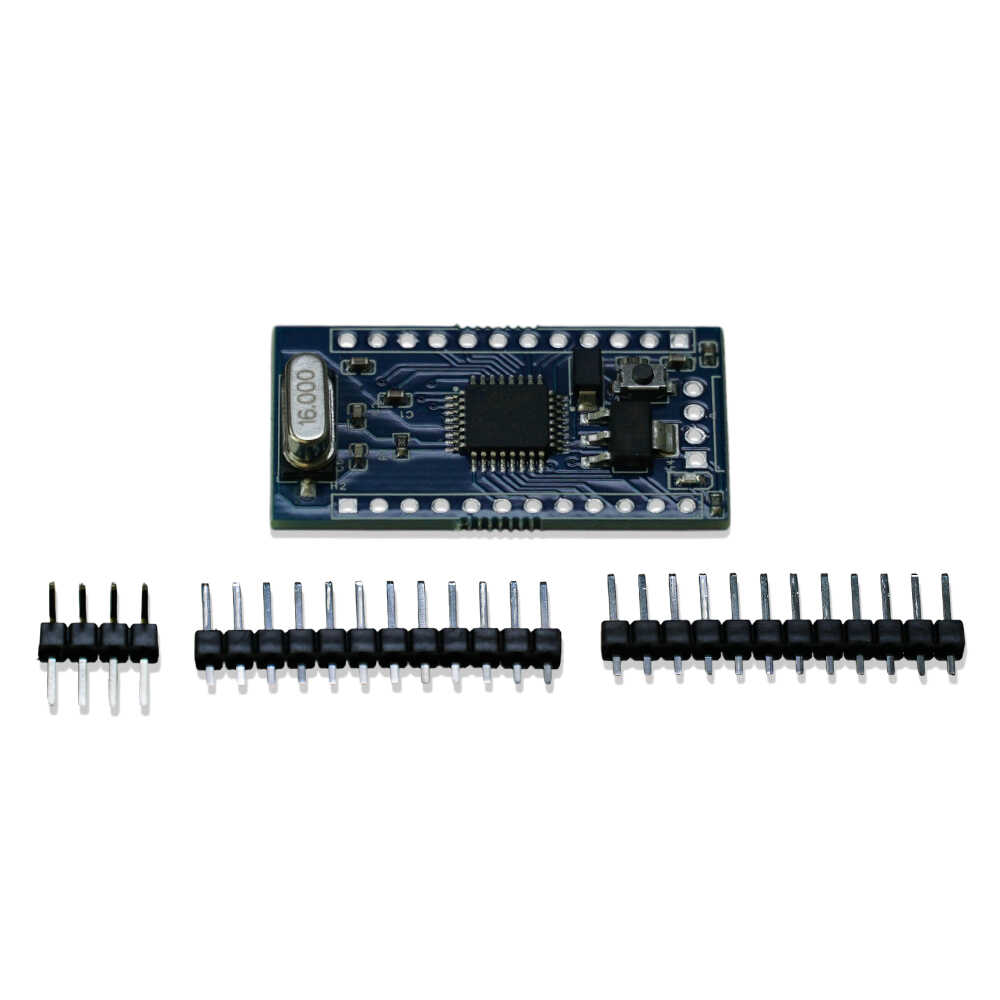

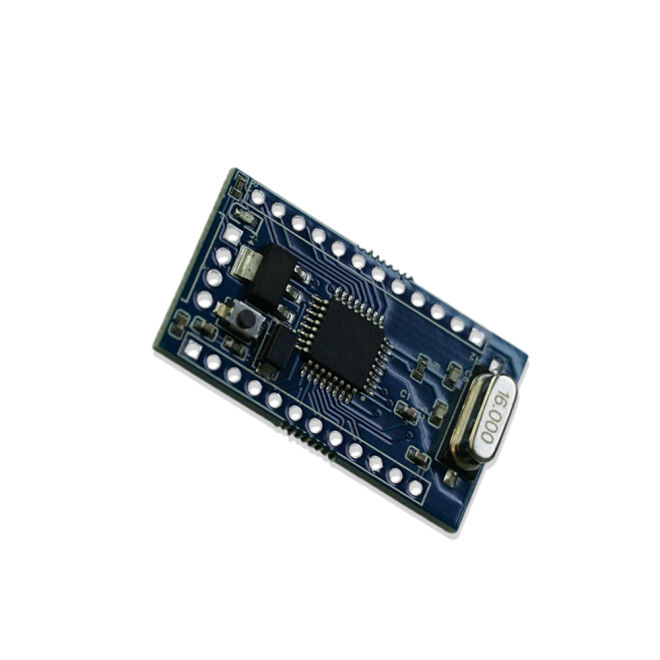

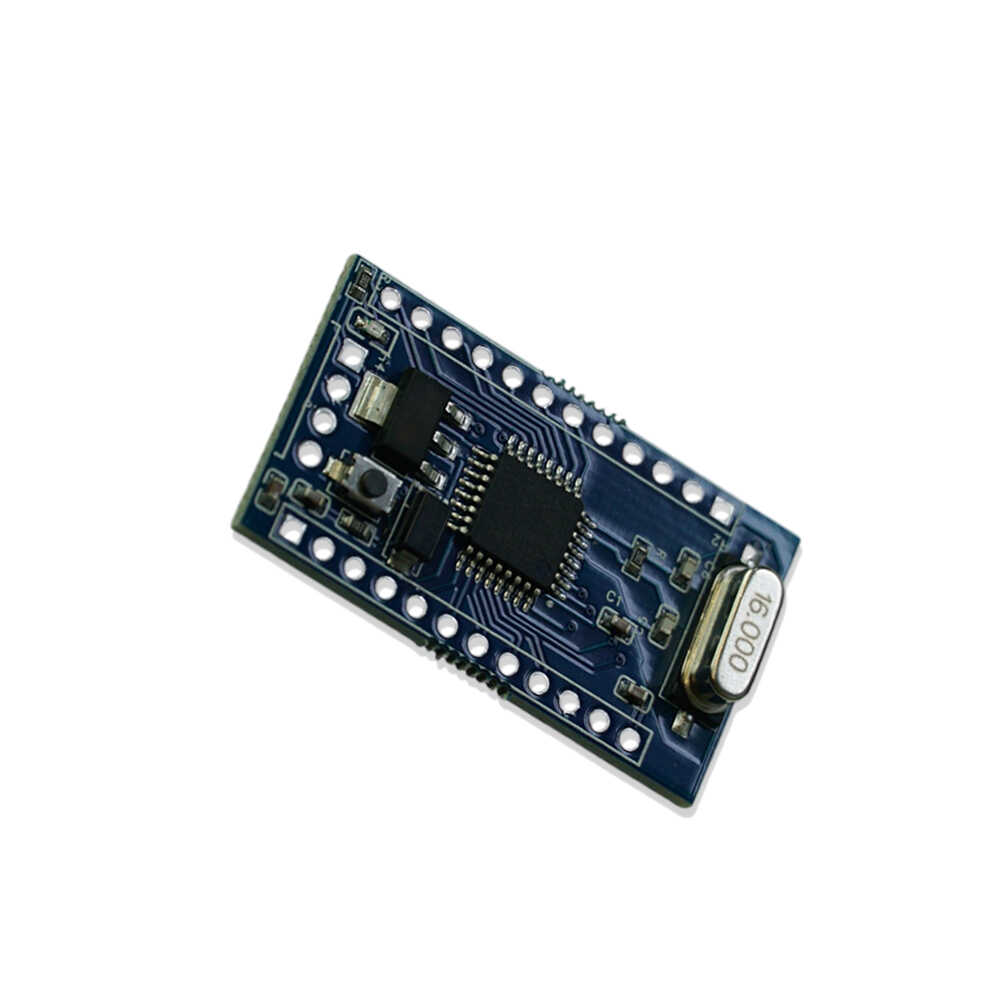

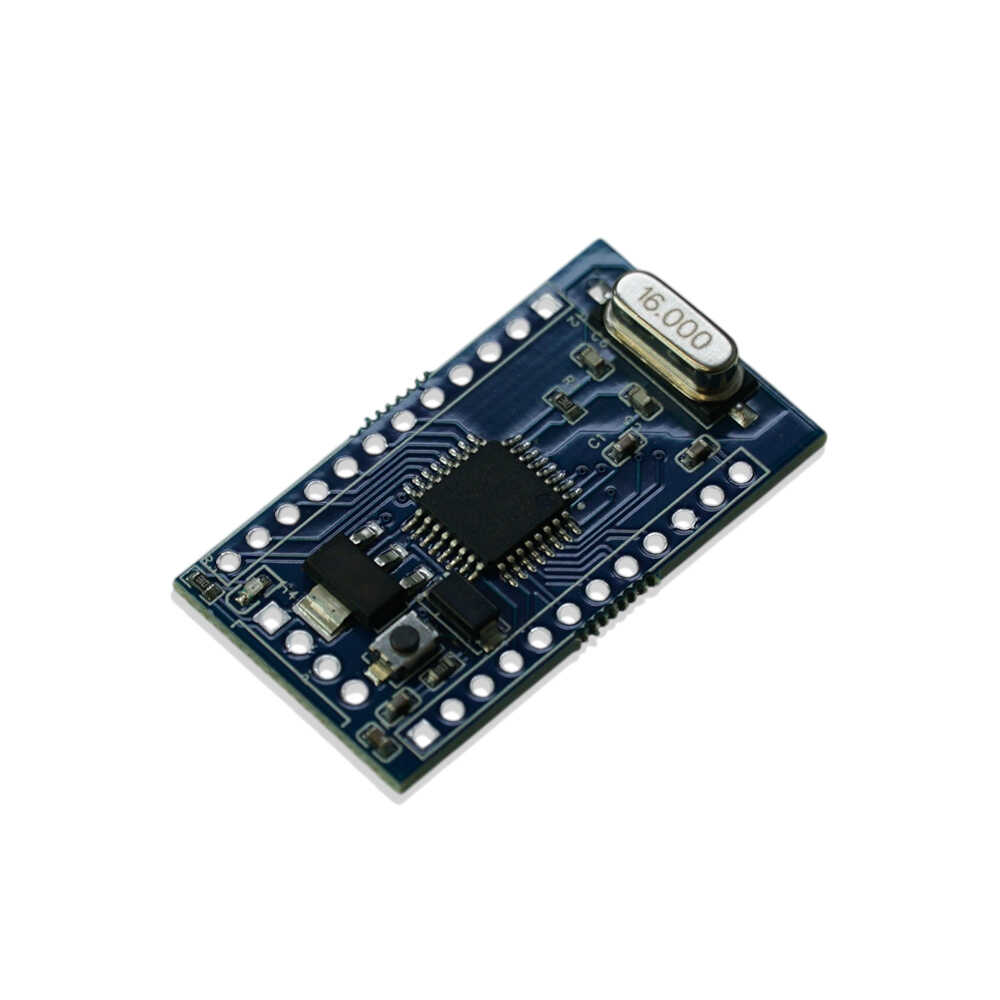

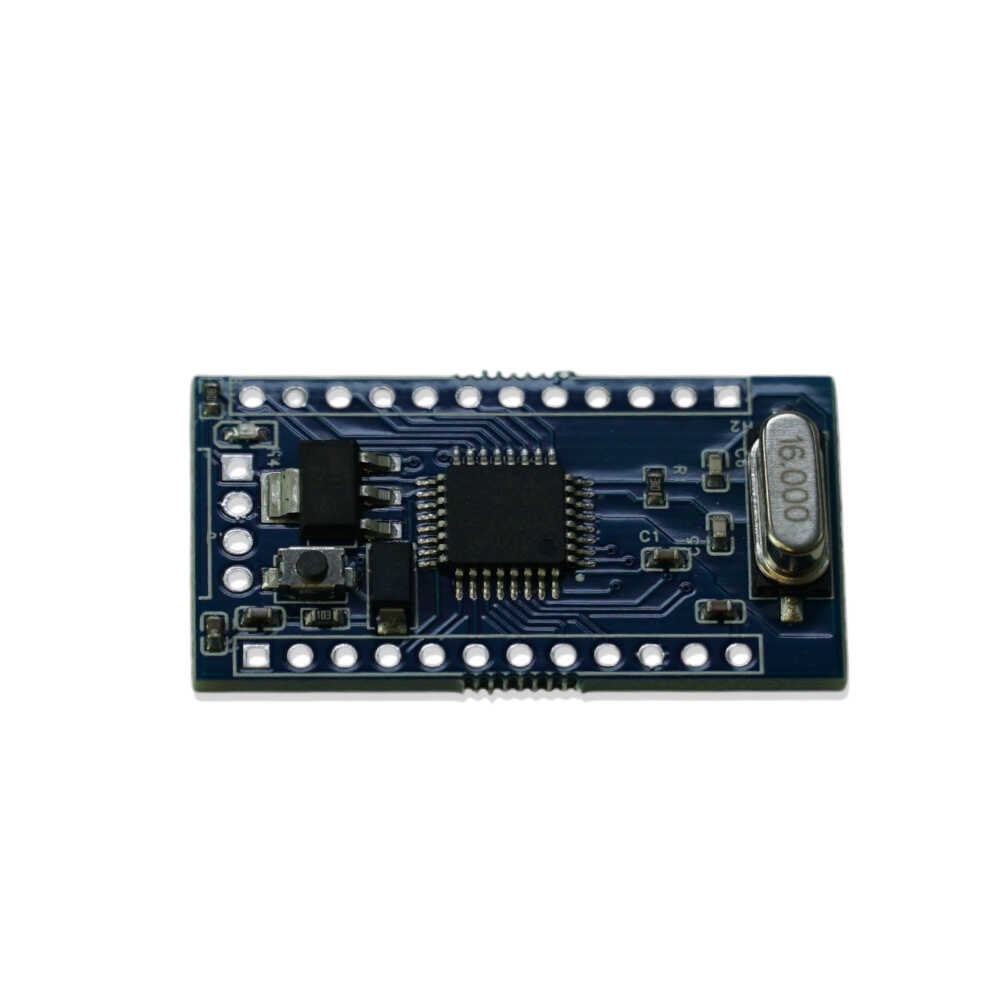

Pro Mini 328PB 5V - 16 MHz Development Board Based on Arduino

Pro Mini 328PB 5V - 16 MHz Development Board Based on Arduino is a microcontroller board specially designed for low-cost, highly compact, and energy-efficient projects.
Thanks to its minimal dimensions, it can be easily used in industrial and hobby applications where space is limited.

This model, featuring the ATmega328PB microcontroller, has more input/output (I/O) pins and advanced hardware features compared to classic Pro Mini boards.
With its 5V operating voltage and 16 MHz clock frequency, it can be easily programmed through the Arduino® IDE software.

Since the board does not have a built-in USB connection interface, programming is carried out with the help of an external USB-TTL converter module.
This design choice keeps the board size compact. Thanks to its fully breadboard-compatible structure, it is highly practical for prototyping and testing.

Pro Mini 328PB Based on Arduino® is a lightweight and flexible hardware solution frequently preferred in areas such as wearable technologies, embedded systems, smart sensor-based applications, and IoT/automation projects.

Pro Mini 328PB 5V - 16 MHz Development Board Based on Arduino Technical Specifications:

• Microcontroller: ATmega328PB
• Operating Voltage: 5V DC
• Clock Frequency: 16 MHz
• Number of Digital Input/Output Pins: 14 (6 of them support PWM output)
• Number of Analog Input Pins: 8
• Flash Memory Capacity: 32 KB (0.5 KB is reserved for the bootloader software)
• SRAM: 2 KB
• EEPROM: 1 KB
• Programming Infrastructure: Can be programmed with an external USB-TTL converter module (not included in the package)

Pro Mini 328PB 5V - 16 MHz Development Board Based on Arduino Documents and Useful Links:

• Programming Lessons and Projects for Arduino®
• Arduino® Pro Mini Technical Circuit Schematic (PDF)
• Original Arduino® Pro Mini Official Product Page and Documentation
