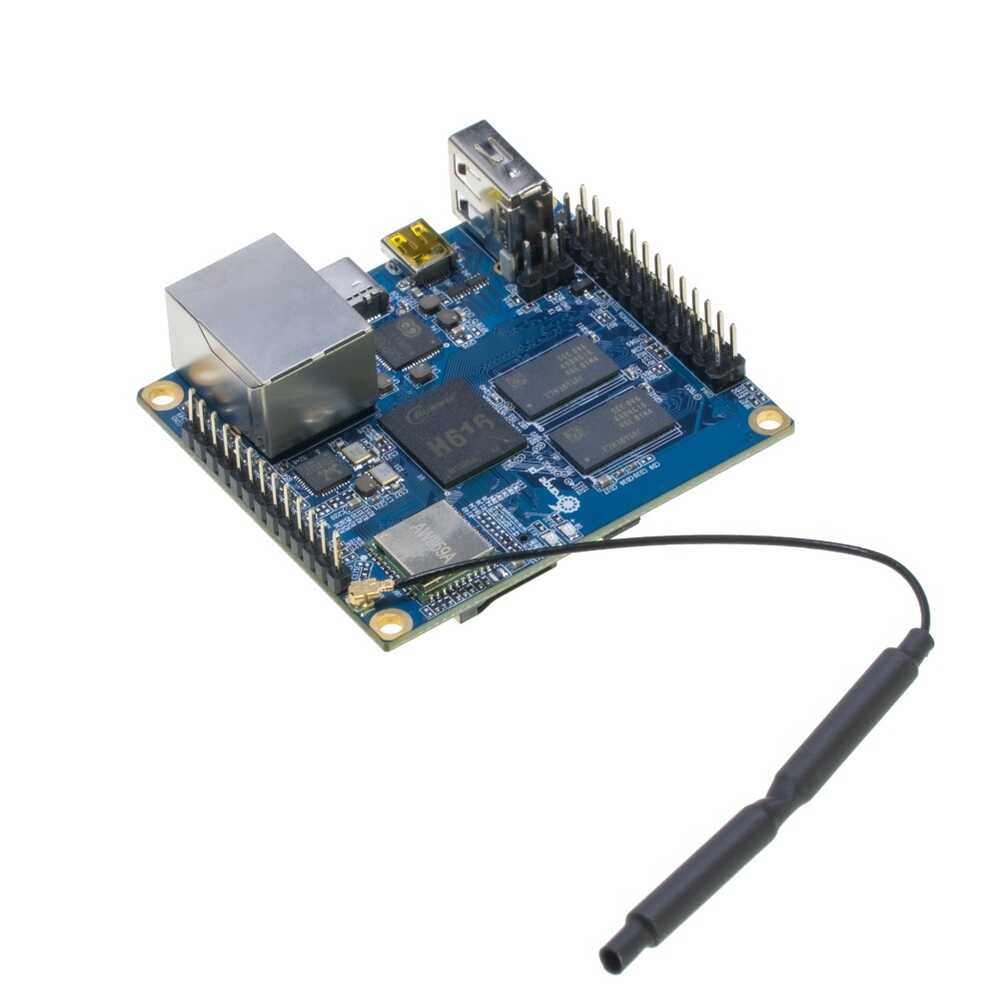

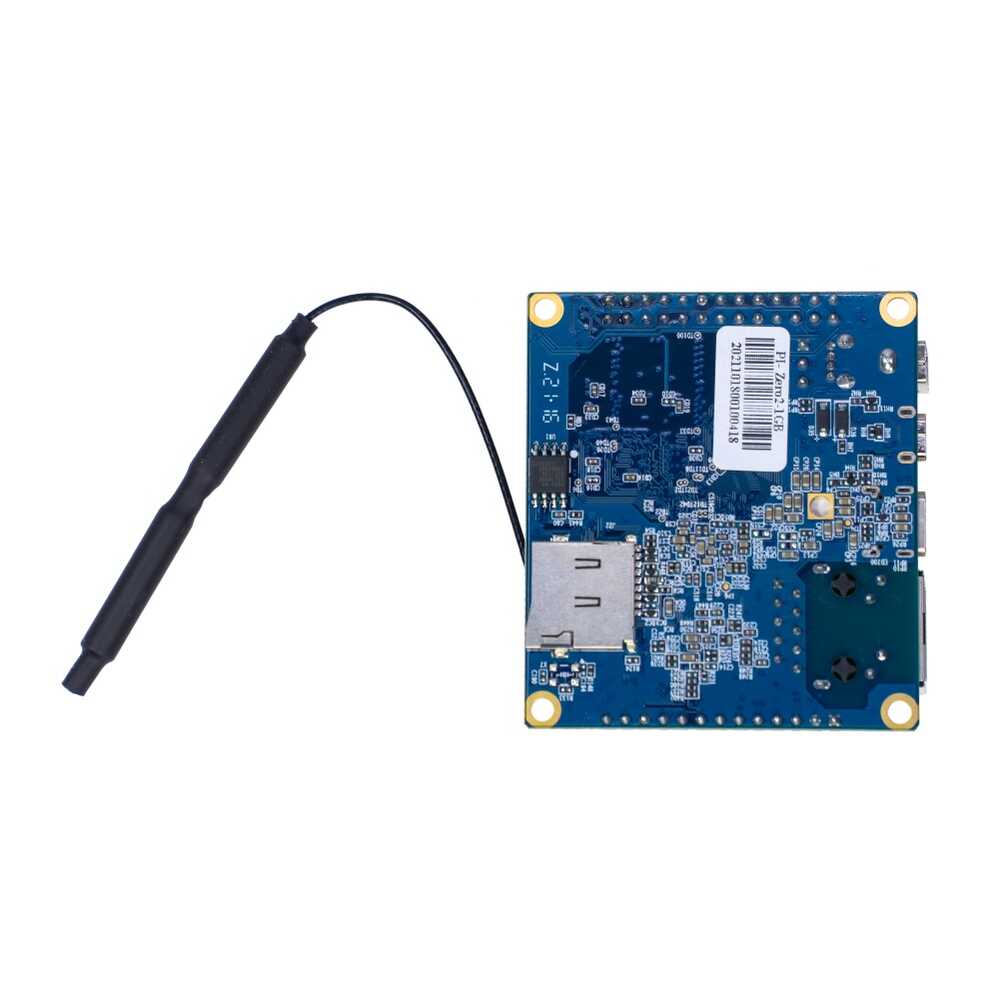

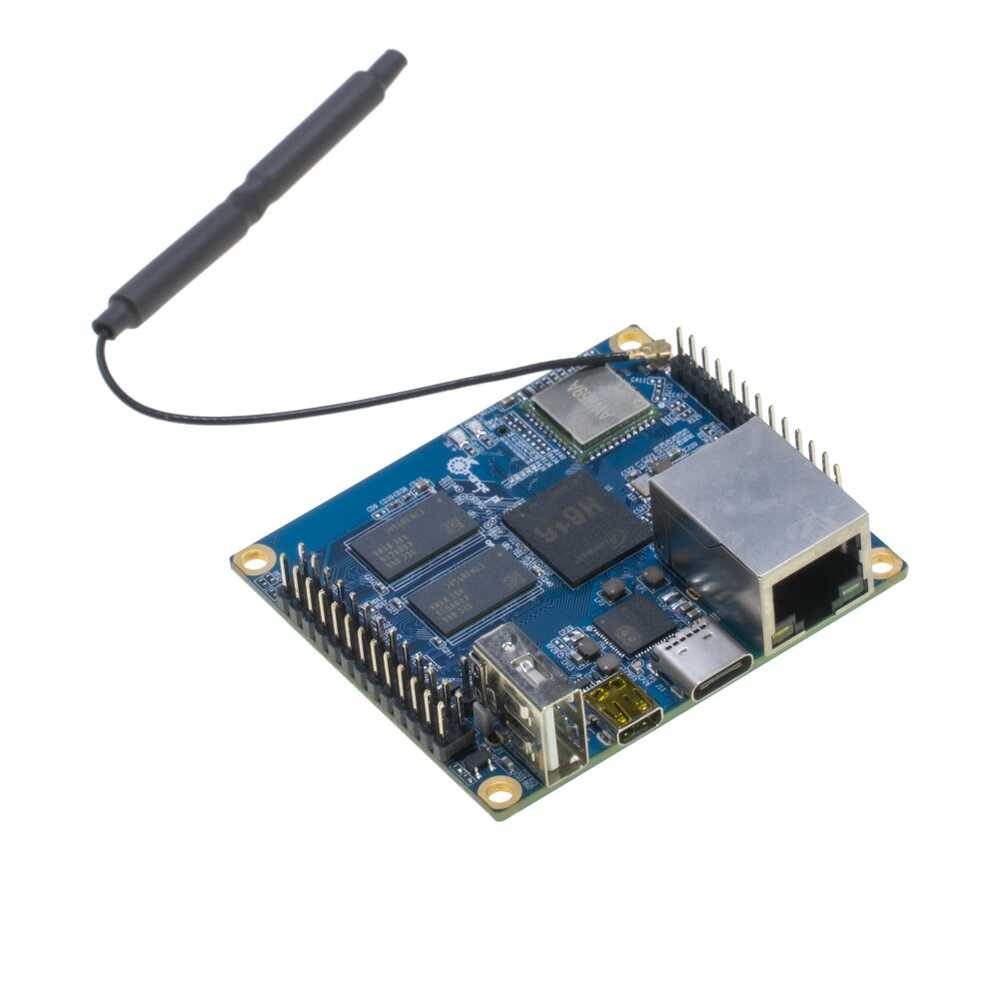

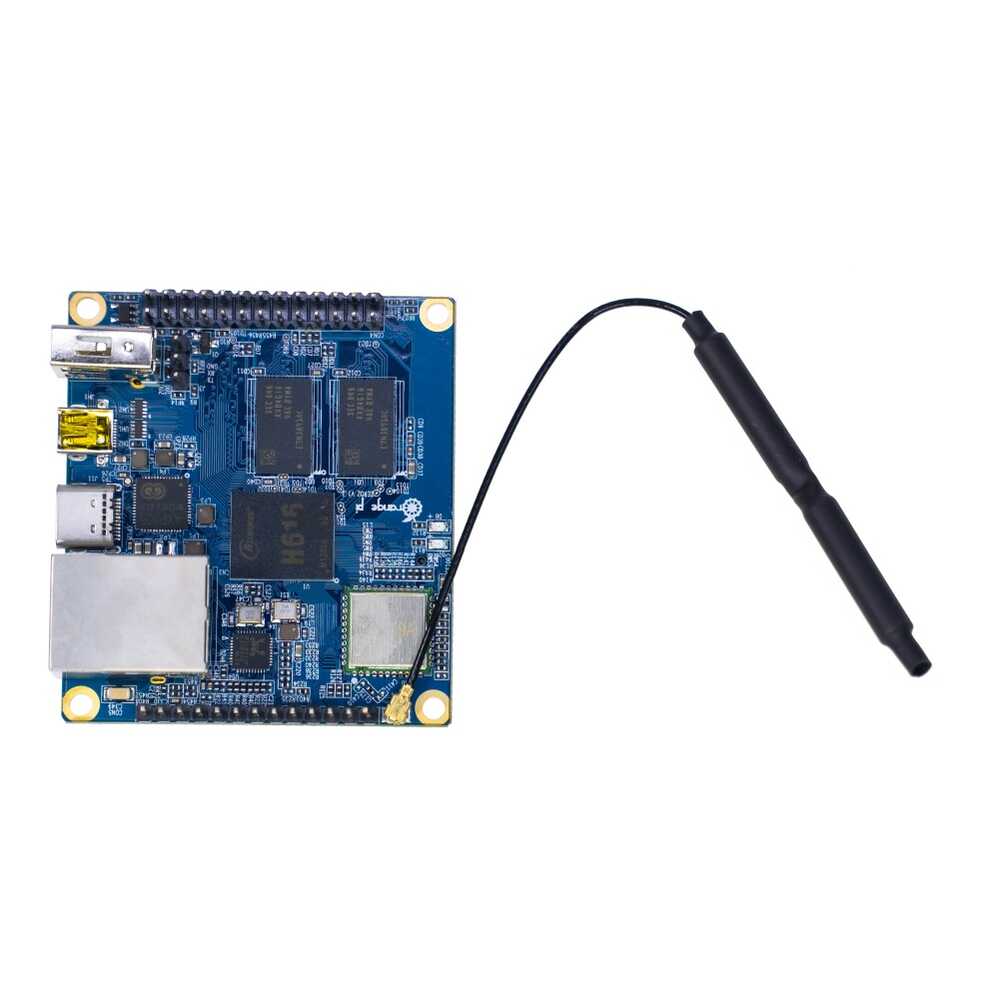

Orange Pi Zero2 Development Board

Orange Pi Zero2; It is an open-source single-board computer of the Orange Pi series, supporting Android 10, Ubuntu, Debian operating systems. It uses the Allwinner H616 SoC and has 512MB/1GB DDR3 SDRAM memory.

Orange Pi Zero2 Technical Specifications:

• CPU: Allwinner H616 64-bit high performance Quad-core Cortex-A53 processor

• GPU: Mali G31 MP2 supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0

• Video Decode: H.265 [email protected] decoder up to [email protected] or [email protected], VP9 Profile 2 decoder up to [email protected], AVS2 JiZhun 10bit decoder up to [email protected], H.264 BP/MP /[email protected] decoder up to [email protected]

• Video Encoding: H.264 BP/MP/HP encoder up to [email protected] or [email protected], JPEG snapshot performance of [email protected]

•  Memory (SDRAM): 512MB/1GB DDR3 (shared with GPU）

• Onboard Storage: TF card slot, 2MB SPI Flash

•  Onboard Network: Support 1000M/100M/10M Ethernet

•  Onboard WIFI+BT: AW859A Chip, Support IEEE 802.11 a/b/g/n/ac, Support BT5.0

•  Video Outputs: Micro HDMI 2.0a up to [email protected], TV CVBS output, Support PAL/NTSC（Via 13pin interface board）

•  Audio Output: Micro HDMI, 3.5mm audio port (Via 13pin interface board)

•  Power Supply: Type-C interface 5V2A input

•  USB 2.0 Ports: 3*USB 2.0 HOST（Two of them are via 13pin interface board）

•  Low Level Peripherals: I2C, SPI, UART and multiple GPIO ports

•  26 pin header with 2* USB Host, IR pin, Tv out, AUDIO (no MIC) and 13 pin header with 3 GPIO ports

•  Debug Serial Port: UART-TX, UART-RX and GND

•  LED: Power LED and Status LED

•  IR Receiver: Support IR remote control (with 13pin interface card)
•  Supported OS: Android 10, Ubuntu, Debian

•  Dimensions: 53mmx60mm

•  Weight: 30g
