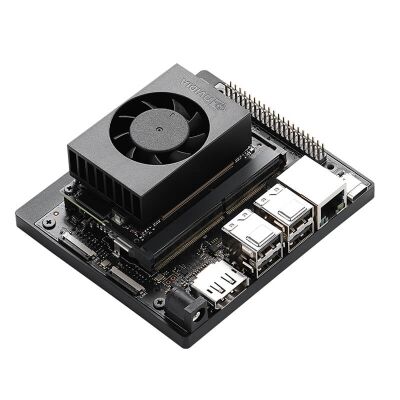

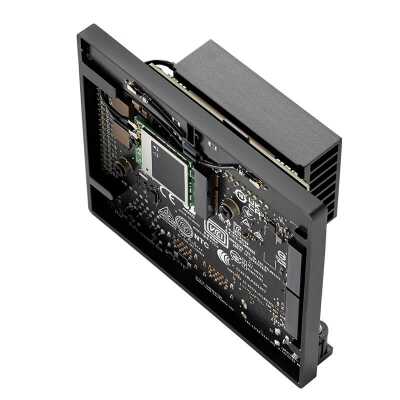

NVIDIA® Jetson Orin™ Nano Developer Kit
The NVIDIA Jetson Orin™ Nano Developer Kit sets a new standard for building entry-level AI-powered robots, intelligent drones, and intelligent cameras. It also simplifies the getting started process with Jetson Orin Nano series modules. Compact design, multiple connectors and up to 40 TOPS AI performance make this the perfect developer kit to bring your AI concepts to life. With up to 80X the performance of Jetson Nano, it can run all modern AI models, including transformer and advanced robotic models.
The developer kit includes a Jetson Orin™ Nano 8GB module and a reference carrier card that can accommodate all Orin Nano and Orin NX modules. This provides the ideal platform for prototyping your next-generation edge AI product. The Jetson Orin™ Nano 8GB module features an Ampere architecture GPU and 6-core ARM CPU, enabling multiple simultaneous AI application lines and high-performance inference. The carrier board has a wide variety of connectors, including two camera connectors that can handle 2-lane and 4-lane cameras.
NVIDIA Jetson Orin Nano Geliştirici Kiti Technical Specification:GPU
NVIDIA Ampere architecture 1024 NVIDIA® CUDA® cores and 32 tensor cores
CPU
6 çekirdekli Arm® Cortex®-A78AE v8.2 64 bit CPU
3 MB L2 + 6 MB L3Memort
8 GB 128 bit LPDDR5
68GB/snStorage
Supports SD card slot and external NVMe.
Video Encoding
1080p30 supported by 1-2 CPU cores
Video Decoder
1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)Power
7W-15W
Camera
MIPI CSI-2 22 pin camera connector
PCIe
M.2 Key M with 4x PCIe Gen3
M.2 Key M with 2x PCIe Gen3
M.2 Key E slotUSB
2x USB Type-A: x USB 3.2 Gen2
USB Type-C connector for UFPNetwork
1xGbE connector
Screen
1x DP 1.2 (+MST) connector
Others
Other 40 pin input (I2S, SPI, UART, I2C, GPIO) 12 pin Button Header 4-pin Fan Input microSD slot DC power jack
Dimension
100mm x 79mm x 21mm

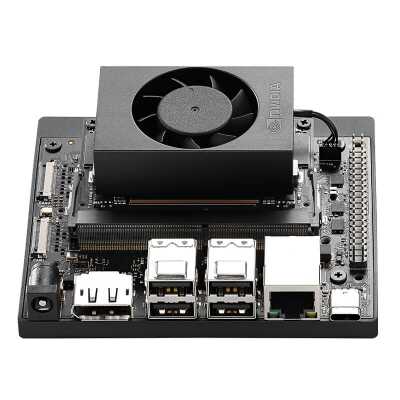

NVIDIA Jetson Orin Nano Geliştirici Kiti Pin Diyagramı:1- microSD card slot for main storage2-40-pin expansion header3- Power indicator LED4- USB-C port for data only5- Gigabit Ethernet port6- USB 3.1 Type A ports (x4)7- DisplayPort connector8- DC Barrel jack for 19V power input9- MIPI CSI camera connectors
