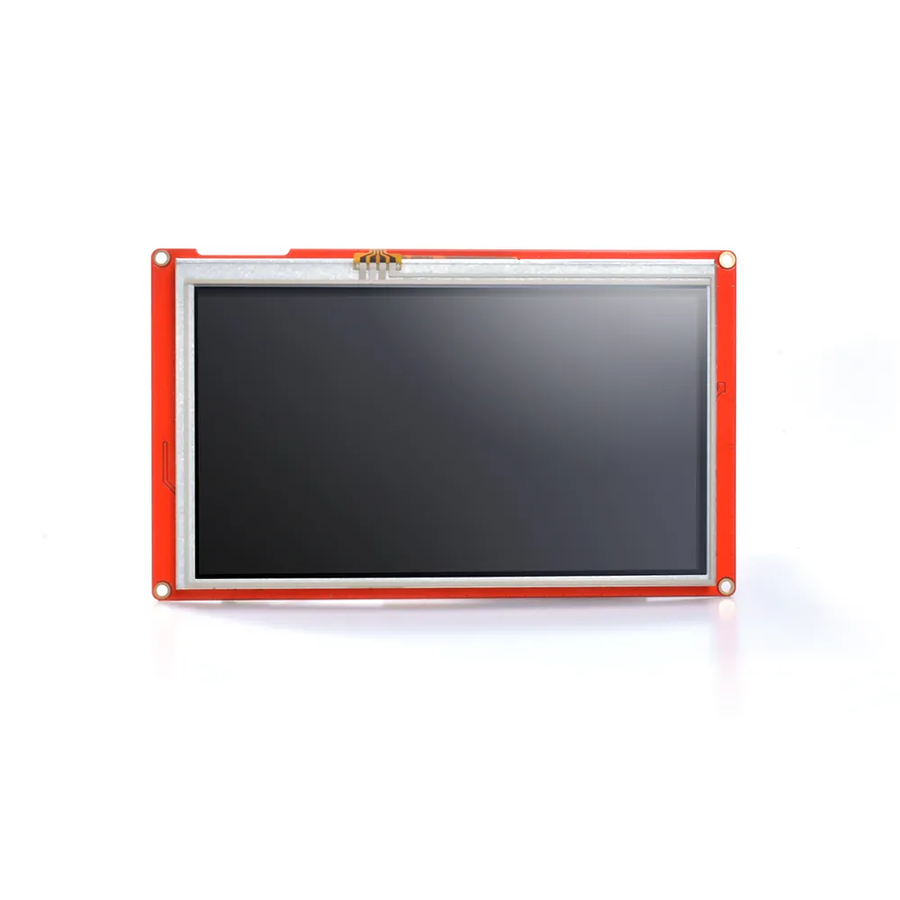

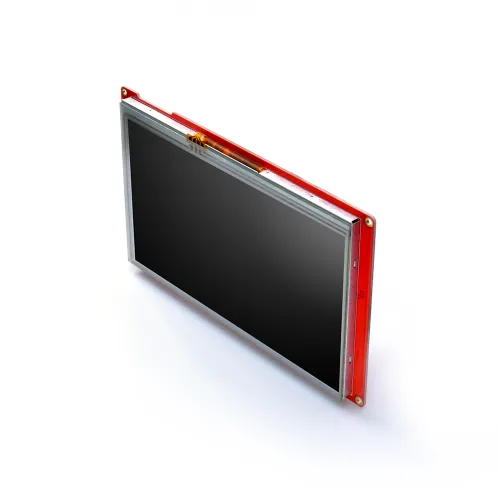

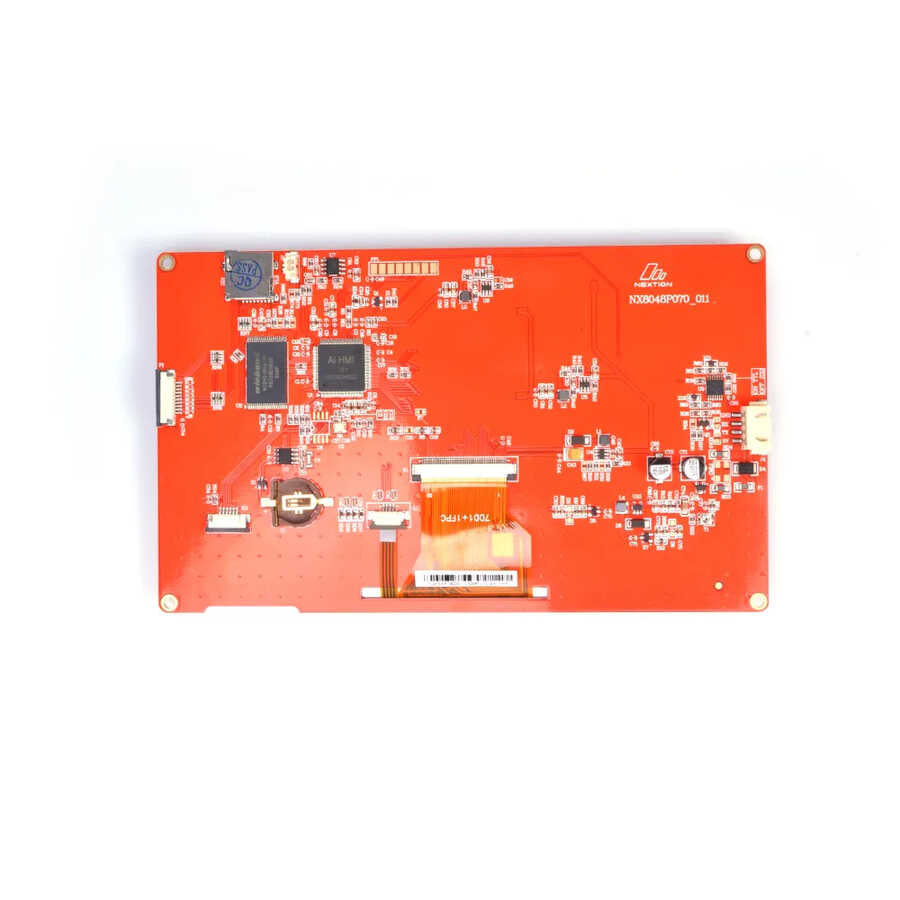

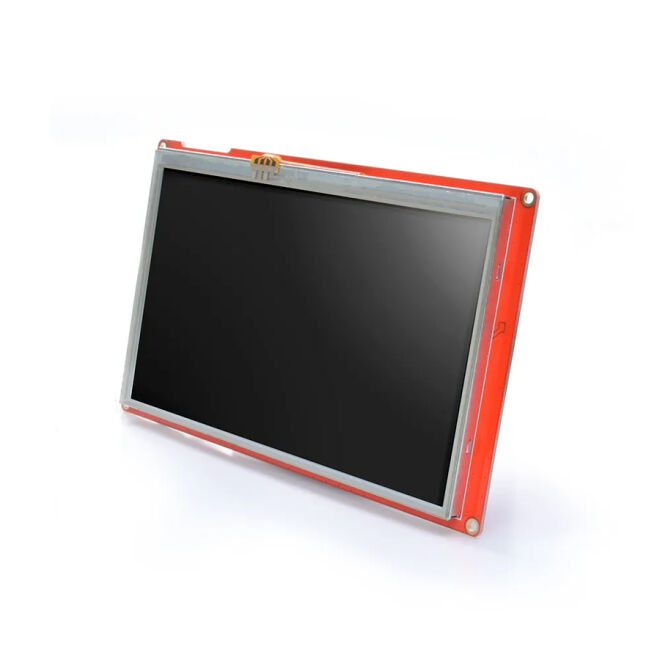

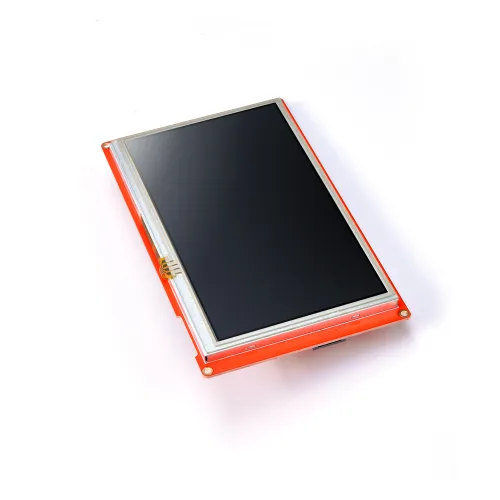

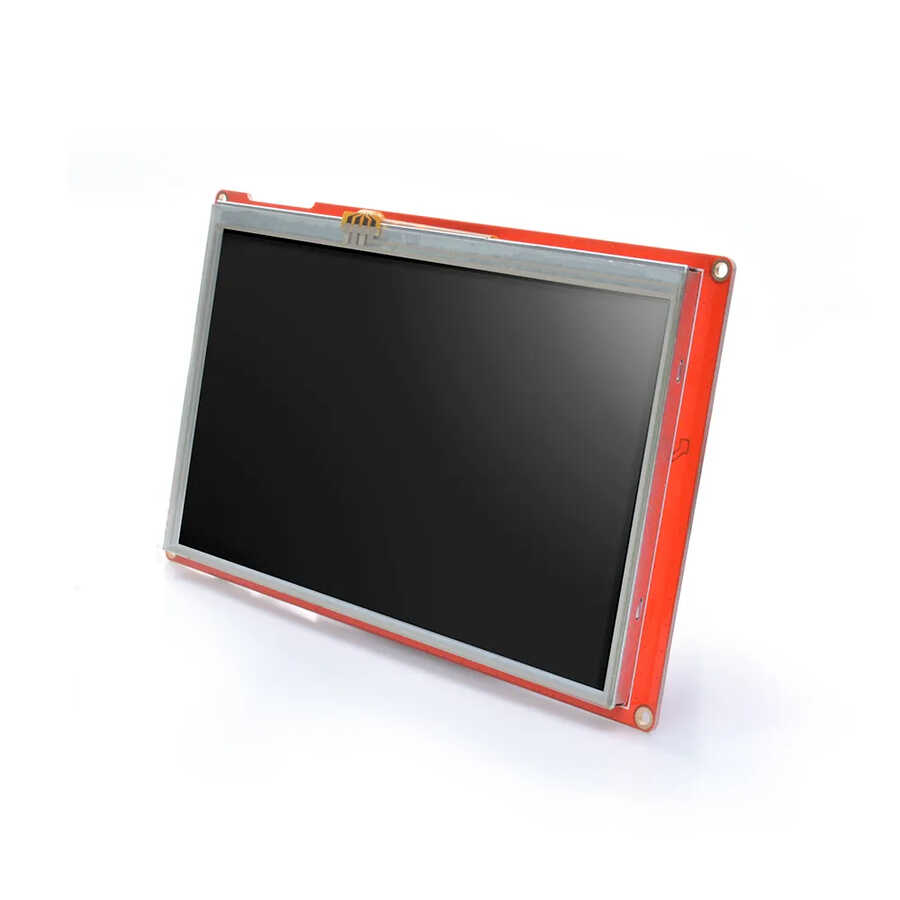

NEXTION NX8048P070-011R - 7.0‘’ Intelligent Series USART HMI Resistive Touch Display

Brand
Nextion
Product Code
23178
Fiyat
: 3,394.65 TL + VAT
KDV Dahil Fiyat
: 4,073.57 TL

NEXTION NX8048P070-011R - 7.0‘’ Intelligent Series USART HMI Resistive Touch Display

Nextion is an HMI (Human-Machine Interface) solution that combines a touch display with a built-in processor and memory for HMI GUI development using the Nextion Editor software. With Nextion Editor, you can quickly develop an HMI GUI by dragging and dropping components (graphics, text, buttons, sliders, etc.) and coding how the components interact on the screen using ASCII text-based instructions. The Nextion HMI display connects to an external MCU via TTL Serial (5V, TX, RX, GND) to provide event notifications that the external MCU can process. The external MCU can also easily update progress and status back to the Nextion display using simple ASCII text-based commands.

Compared to the Basic Series and Enhanced Series, Intelligent Series products feature more powerful hardware in terms of the MCU, Flash storage, and SRAM. What are the additional features and innovations? Audio, video, and animation playback functions enhance the user’s HMI interaction in projects. The Intelligent Series also supports advanced software features and functionalities such as transparent components, page loading effects, component dragging and moving, and more.


Package Contents:

  • Nextion NX8048P070-011R HMI Display
  • XH2.54 4P Cable
  • Power Supply Test Board

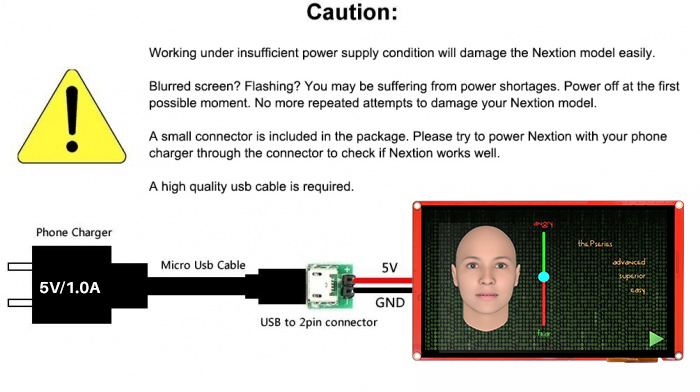

Note: The small power supply test board and connection cable included in the package allow you to test whether the power supply is sufficient. You can see how to use it in the image below.


Useful Documents:
