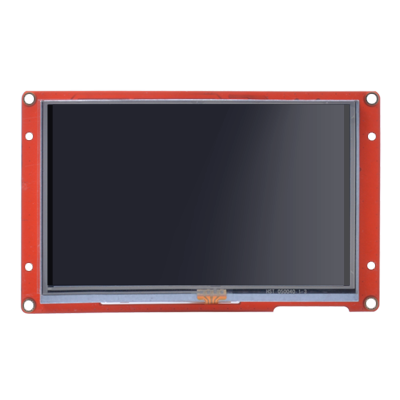

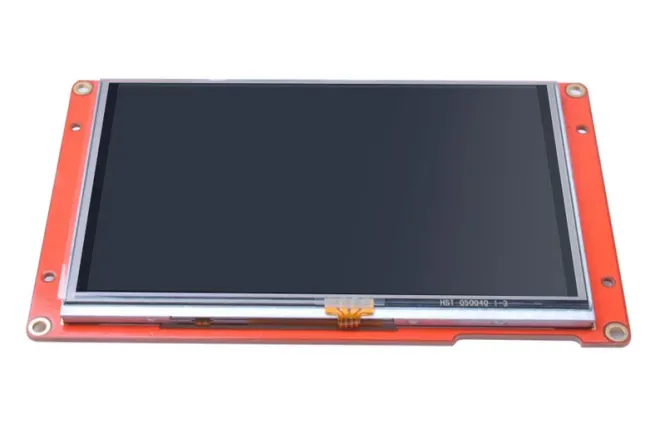

Notify me when its in stockNEXTION NX8048P050-011R 5.0'' Nextion Intelligent Series HMI Resistive
Nextion is an HMI (Human-Machine Interface) solution that combines a touch display with a built-in processor and memory for HMI GUI development using the Nextion Editor software. By using Nextion Editor, you can quickly develop an HMI GUI by dragging and dropping components (graphics, text, buttons, sliders, etc.) and coding their interactions on the display side with ASCII text-based instructions. The Nextion HMI display connects to an external MCU via TTL Serial (5V, TX, RX, GND) to provide event notifications that the MCU can process. The external MCU can easily update progress and status back to the Nextion display using simple ASCII text-based commands.
Compared to the Basic Series and Enhanced Series, Intelligent Series products feature a more powerful MCU, Flash storage, and SRAM. What are the additional features and innovations? Audio, video, and animation playback functions enhance the user’s HMI interaction in projects. The Intelligent Series supports advanced software features and functionalities, such as transparent components, page loading effects, component dragging and moving, and more.
NEXTION NX8048P050-011R 5.0'' Nextion Intelligent Series HMI Resistive Package Includes:
Note: The small power supply test board and connection cable included in the package allow you to test whether the power supply is sufficient. Refer to the image below for usage instructions.
