Mini Short Camera Module for Raspberry Pi

Mini Short Camera Module for Raspberry Pi

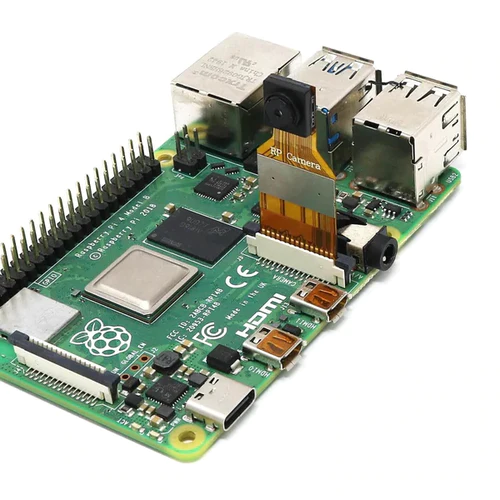

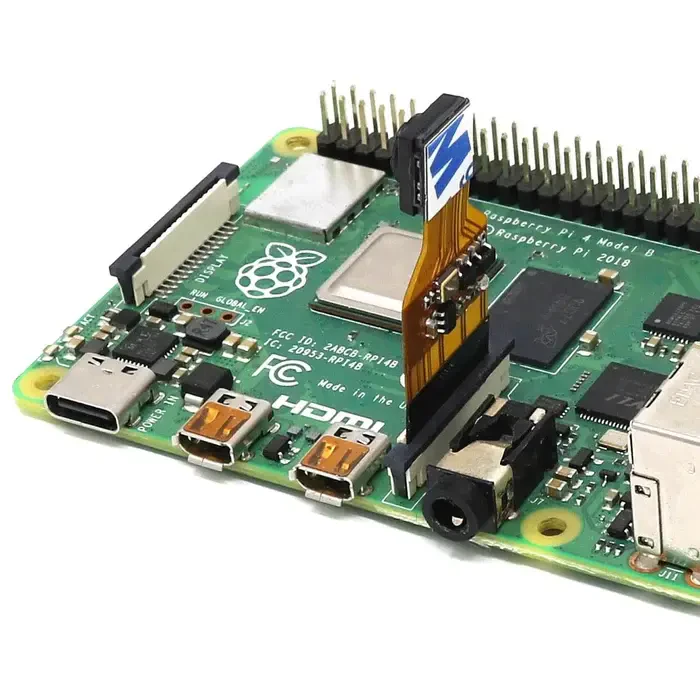

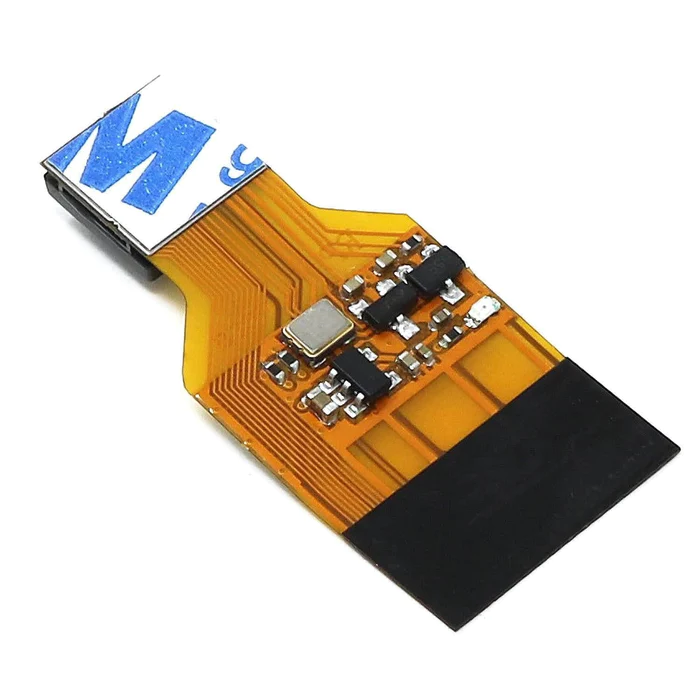

The Mini Short Camera Module for Raspberry Pi has a 5 Megapixel OV5647 sensor that, despite being 35 millimeters in size, can capture still images up to 2592 x 1944 and videos up to 1920 x 1080! The module can use a full size 15 pin connection compatible with Raspberry Pi Model B boards (Pi4/3B+) as well as you can use it with standard Raspberry Pi camera libraries such as libcamera and raspicam. If you want to shoot video, take photos, live video, create time-lapse and more, this camera is the right size for you! In addition, the camera comes with a foam gasket on the two edge bands, so you can mount your camera easily.

Features of Mini Short Camera Module for Raspberry Pi:

• Compatible with Raspberry Pi Boards.
• OV5647 Sensor.
• Compatible with Libcamera and Raspicam Commands.

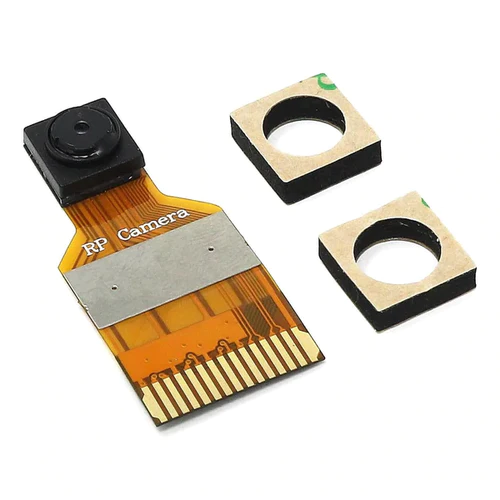

• Foam Gasket for Easy Installation.
• Video Advantage up to 1920 x 1080.
• Image Resolution Up to 2592 x 1944.

Mini Short Camera Module Technical Specifications for Raspberry Pi:

• Sensor: OV5647
• Compatible Commands: Libcamera / Raspicam
• Focal Length: 3.9mm
• CMOS Size: 1/4”
• Pixel: 5 Megapixels
• Field of View 73°
• Aperture: F2, 4
• Depth of Field: 20 cm
• Distortion: < 1.5%
• Still Image: 2592 x 1944
• Views: 2592 x 1944
• Compact Size: 35mm
• Video:
  • 1920 x 1080p @30
  • 1280 x 720p @60
  • 640 x 480p @60
  • 640 x 480p @90

Mini Short Camera Module for Raspberry Pi Compatible Models:

• Raspberry Pi 4
• Raspberry Pi 3B+
• Raspberry Pi 3
• Raspberry Pi 2
• Raspberry Pi B+
