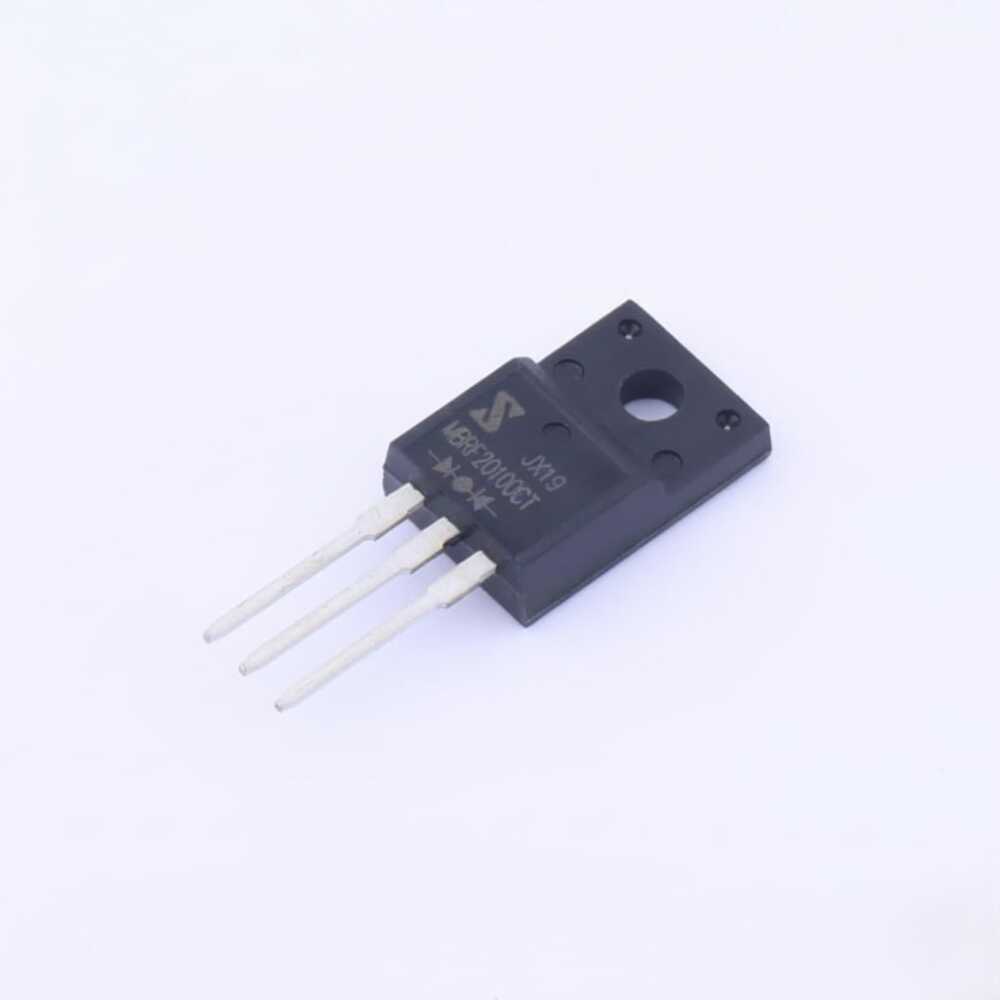

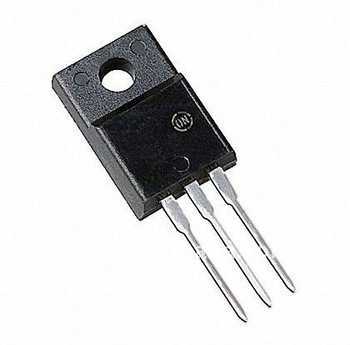

MBRF20100CT TO-220F-3 Dual Schottky Diode 100V 10A Common Cathode

MBRF20100CT TO-220F-3 Dual Schottky Diode 100V 10A (Common Cathode)

The MBRF20100CT is a dual-output Schottky rectifier diode with a common cathode configuration. Thanks to its low forward voltage drop and high current handling capability, it provides high efficiency in power electronics applications. With a 100V reverse voltage rating and support for up to 20A total rectified current, it offers a reliable solution for demanding designs.

Its insulated TO-220F-3 package allows safe use with an external heatsink and provides electrical isolation advantages. The MBRF20100CT is widely used in switched-mode power supplies (SMPS), freewheeling diode applications, DC-DC converters, and reverse polarity protection circuits.

MBRF20100CT Technical Specifications:

• Diode type: Schottky Diode

• Configuration: Dual diode – Common Cathode

• Package type: TO-220F-3 (Through Hole, insulated)

• Maximum reverse voltage (V_R): 100V

• Average rectified current (I_F(AV)): 10A per leg

• Peak forward surge current (I_FSM): 150A

• Forward voltage drop (V_F): 0.83V @ 20A

• Low power loss and high efficiency

• Operating temperature range: -55°C ~ +150°C
