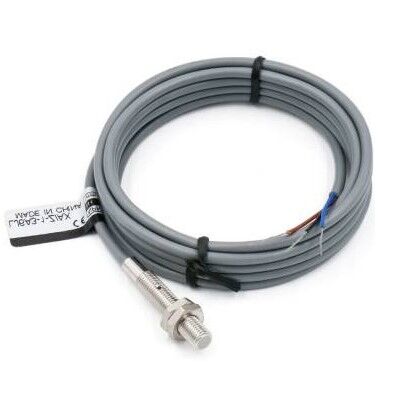

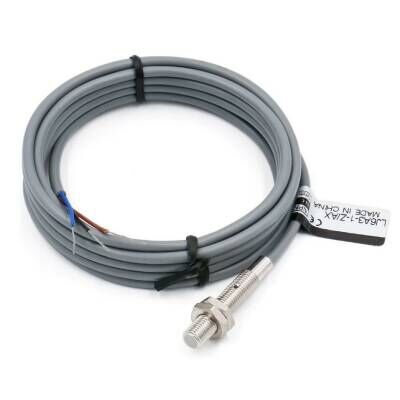

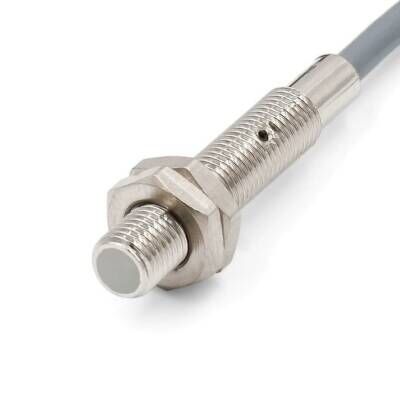

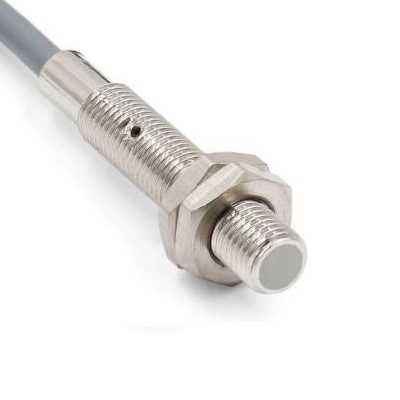

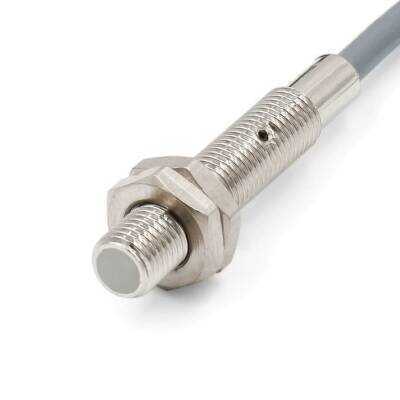

LJ6A3-1-Z/BY Inductive Distance Sensor

LJ6A3-1-Z/BY Inductive Distance Sensor

LJ6A3-1-Z/BY Inductive Distance Sensor, They are devices that can detect non-contact metal objects up to 8 mm. As their electrical feature, they work with DC 6-36V voltage, together with using capacitance, that is, energy storage features, depending on a change in the electric field around the active face of the sensor.

LJ6A3-1-Z/BY Inductive Distance Sensor Technical Features:

• Dimension: 65 x 28 mm
• Weight: 75g
• Sensor Diameter: 18mm
• Detection Distance: 8mm
• Supply Voltage: DC 6 / 36V
• Output Current: 300mA
• Cable Length: 105 cm
• Outer material: Metal / Plastic
• Detected Object: Metal
• Output: PNP
• Cable: DC 3 Wire
• Operating Temperature: - 25°C / 60°C
