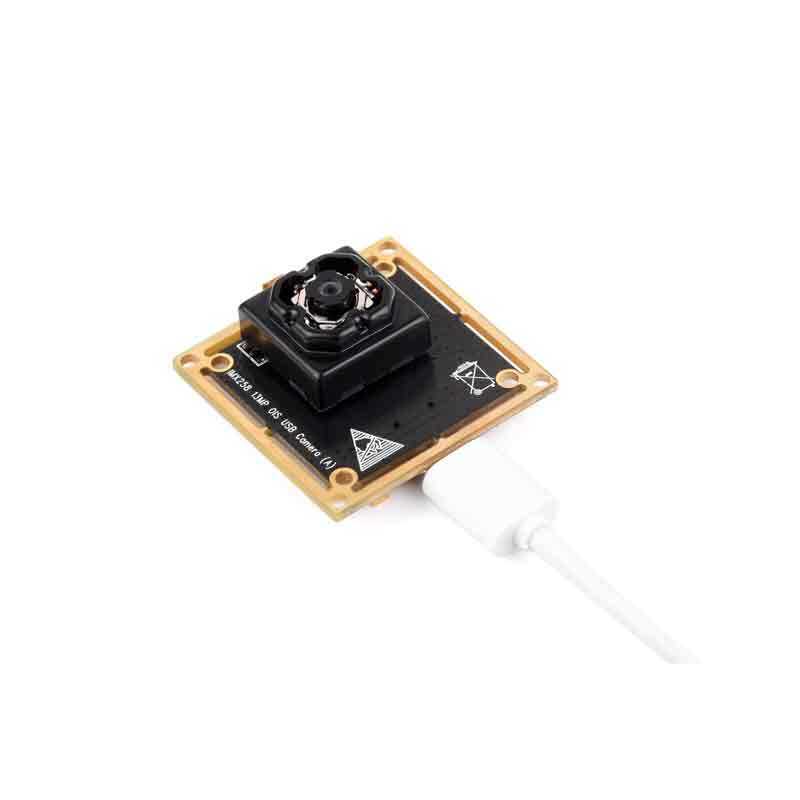

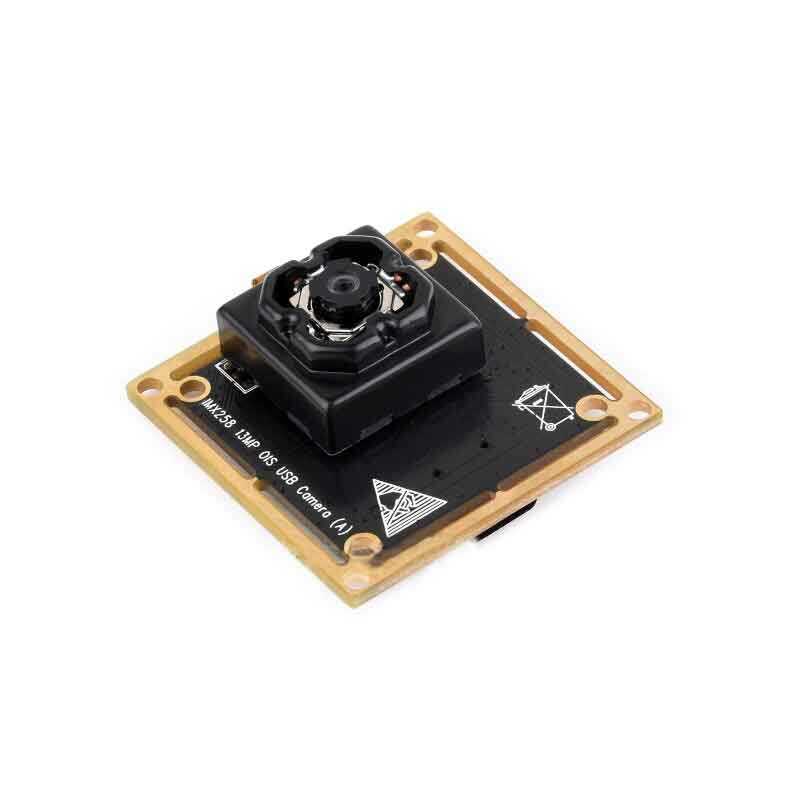

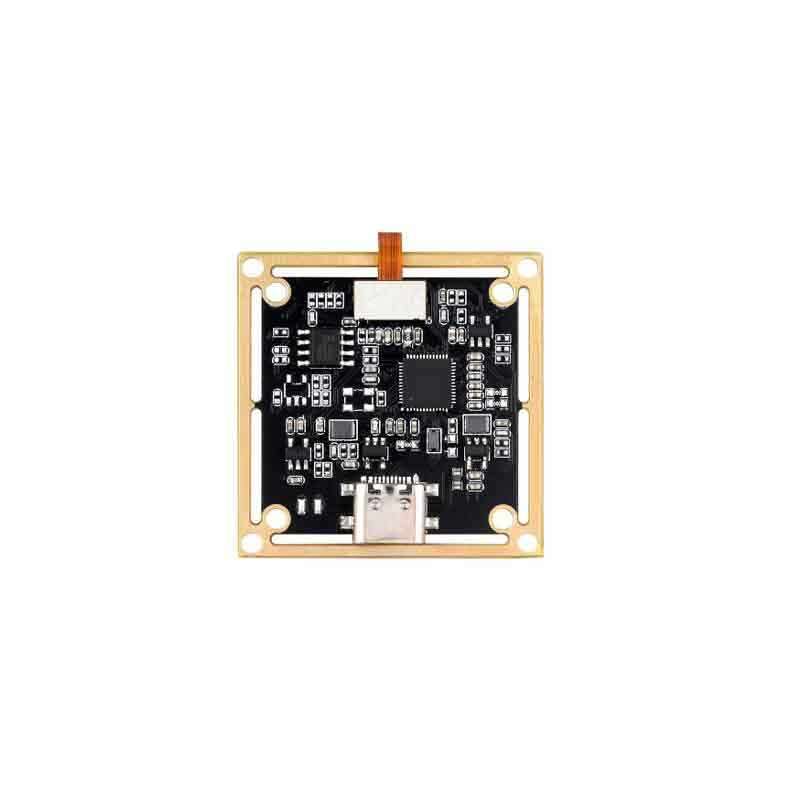

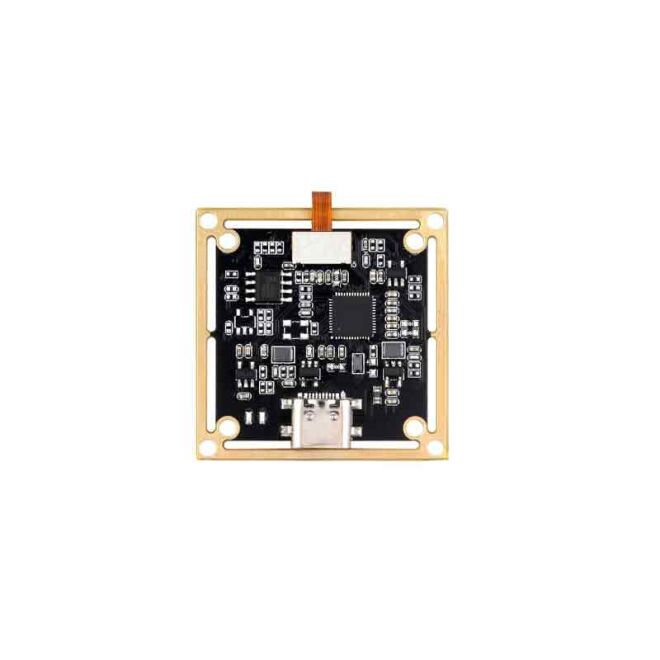

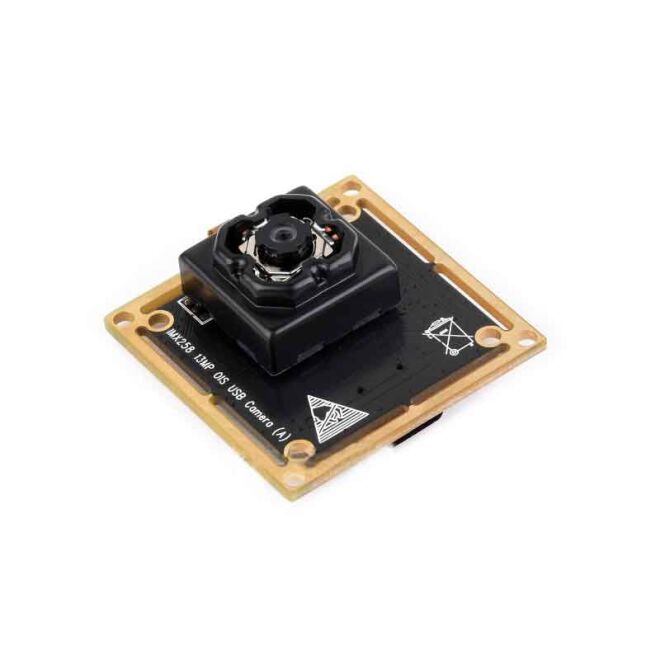

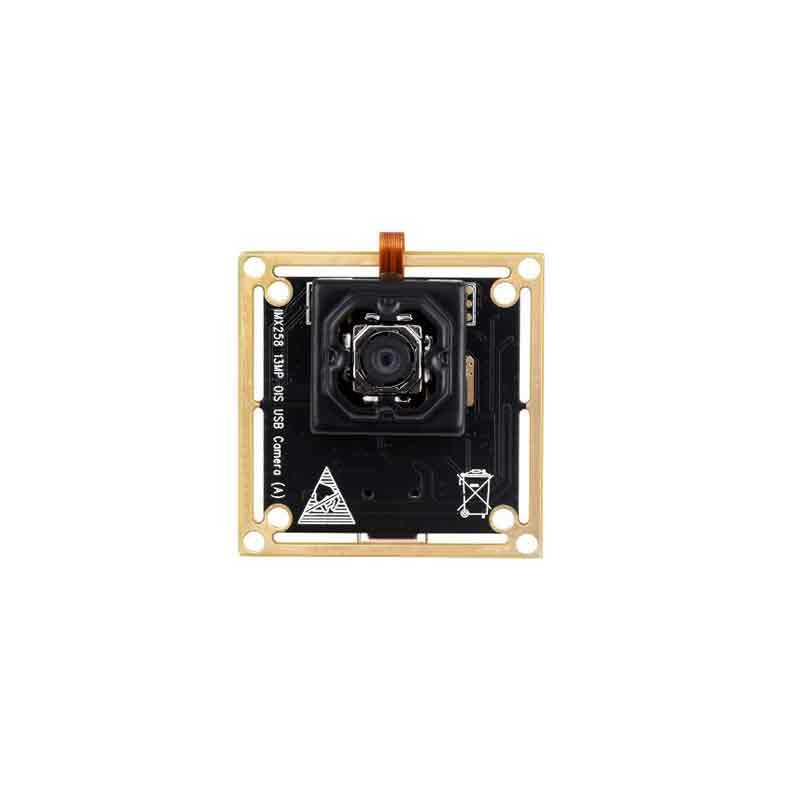

IMX258 13MP OIS USB Camera (A), Optical Image Stabilization, Plug-and-Play, Driver Free

IMX258 13MP OIS USB Camera (A) is a USB camera board module used for boards with USB input on development boards. Since it has optical image stabilization, no matter how much you shake the camera while shooting video, a smooth and clear video will be produced. It also expands the capabilities of your microcontroller thanks to the ability to take pictures or record videos.

IMX258 13MP OIS USB Camera (A) Technical Specifications:

• Megapixel: 13
• Sensor: IMX258
• Stabilization: Micro Gimbal Stabilizer (MGS)
• Interface: USB 2.0 (UVC 1.0 Compliant)
• Camera:
• Sensor Size: 3.06”
• Aperture (K): 2.4
• Focal Length (EFL): 2.35mm
• Field of View (FOV): 127°(V) / 99.5°(H) / 70°(V)e
• Focus: Auto Focus
• Picture:
• Format Support: MJPG
• Static Image Resolution: 4224 x 3192
• Video Recording:
• 10 FPS 4192x3104
• 20 FPS 3840x2160
• 25 FPS 1920x1080
• Operating Voltage: 5V ± 5%e
• Camera Size: 19 x 19 x 9.90mm
• Module Size: 38.00 x 35.80 mm
