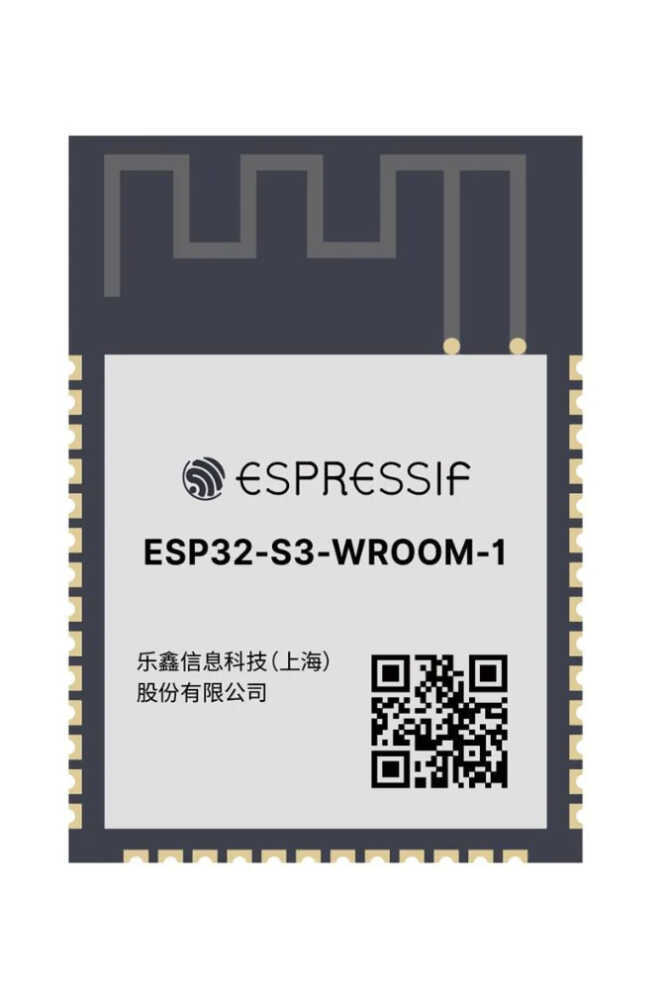

Espressif ESP32-S3-WROOM-1-N8R2 WiFi-BT 5.0 Module
The Espressif ESP32-S3-WROOM-1-N8R2 is a high-performance and low-power IoT module that combines WiFi and Bluetooth 5.0 (BLE) connectivity. Built around the ESP32-S3 series dual-core processor, this module offers a rich set of peripherals and flexible communication options, making it ideal for smart home systems, industrial IoT applications, wearable devices, and embedded system projects.
The N8R2 variant features 8 MB of onboard Flash memory and 2 MB of PSRAM, providing ample resources for complex applications, graphical interfaces, and data-intensive operations. Thanks to its integrated PCB antenna, it delivers stable wireless connectivity without the need for an external antenna.
ESP32-S3-WROOM-1-N8R2 Technical Specifications:
Chipset: Espressif ESP32-S3
Processor: Xtensa® dual-core 32-bit LX7 microprocessor
Maximum CPU frequency: Up to 240 MHz
Onboard Flash memory: 8 MB
Onboard PSRAM: 2 MB
WiFi standard: 2.4 GHz IEEE 802.11 b/g/n
WiFi data rate: Up to 150 Mbps with 802.11n
Bluetooth: Bluetooth Low Energy (BLE) 5.0
Bluetooth features: Mesh support, multiple advertising sets, long-range modes
GPIO count: 36 GPIOs (including 4 strapping GPIOs)
Integrated peripherals: SPI, I2C, I2S, UART, USB 2.0 OTG, USB Serial/JTAG, LCD and camera interface, ADC, capacitive touch sensor, temperature sensor, PWM, MCPWM, SD/MMC, TWAI (CAN) controller
Antenna type: Integrated PCB antenna
Operating voltage: 3.0V – 3.6V
Applications: IoT projects, smart home systems, industrial automation, HMI applications, wireless sensor networks
