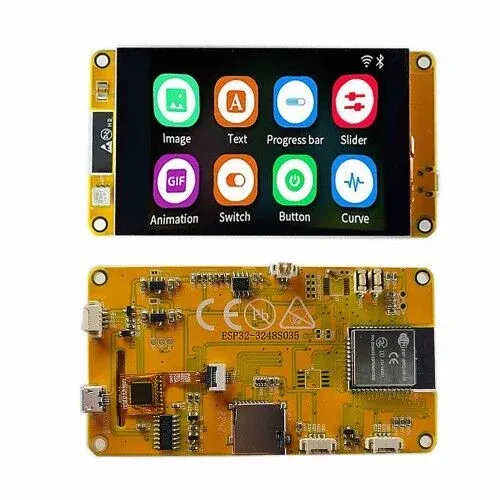

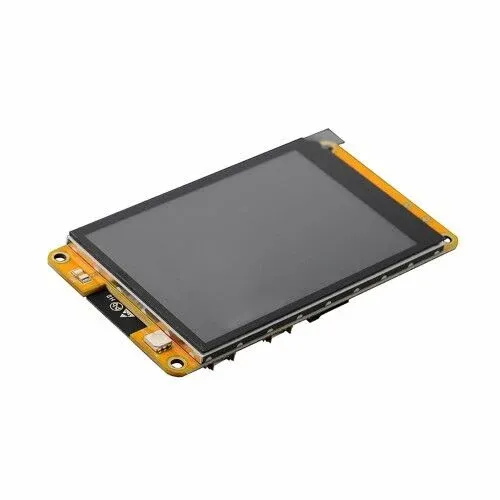

ESP32 S3 3.5 Inch IPS Touch Display

ESP32 S3 3.5 Inch IPS Touch Display

The ESP32-S3 based 3.5 inch IPS touch display is an advanced HMI (Human Machine Interface) solution that integrates a powerful microcontroller and a colorful TFT LCD on a single board. Thanks to IPS panel technology, it delivers wide viewing angles and vivid colors. With its touch capability, you can design user-friendly interfaces including menus, buttons, sliders, graphs, and indicators.

With built-in Wi-Fi and Bluetooth support, the ESP32-S3 enables wireless communication for IoT projects. You can display real-time sensor data on the screen or control your device remotely. The onboard USB connection allows both power supply and easy programming. Its compact structure, mounting holes, and onboard connectors make it suitable for industrial panels, smart home control screens, monitoring systems, and rapid prototyping projects.

ESP32 S3 3.5 Inch IPS Touch Display Technical Specifications:

• Processor: ESP32-S3 dual-core Xtensa® 32-bit LX7

• Wireless Connectivity: 2.4 GHz Wi-Fi + Bluetooth

• Display Size: 3.5 inch IPS TFT LCD

• Resolution: 240 x 320 pixels

• Touch Panel: Touchscreen

• Display Type: IPS (wide viewing angle)

• Power & Programming: Powered and programmed via USB

• Development Support: Compatible with Arduino IDE and ESP-IDF

• Mounting: Designed with 4 mounting holes for secure installation

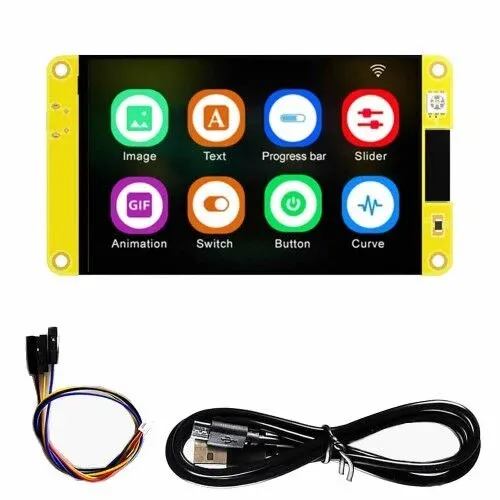

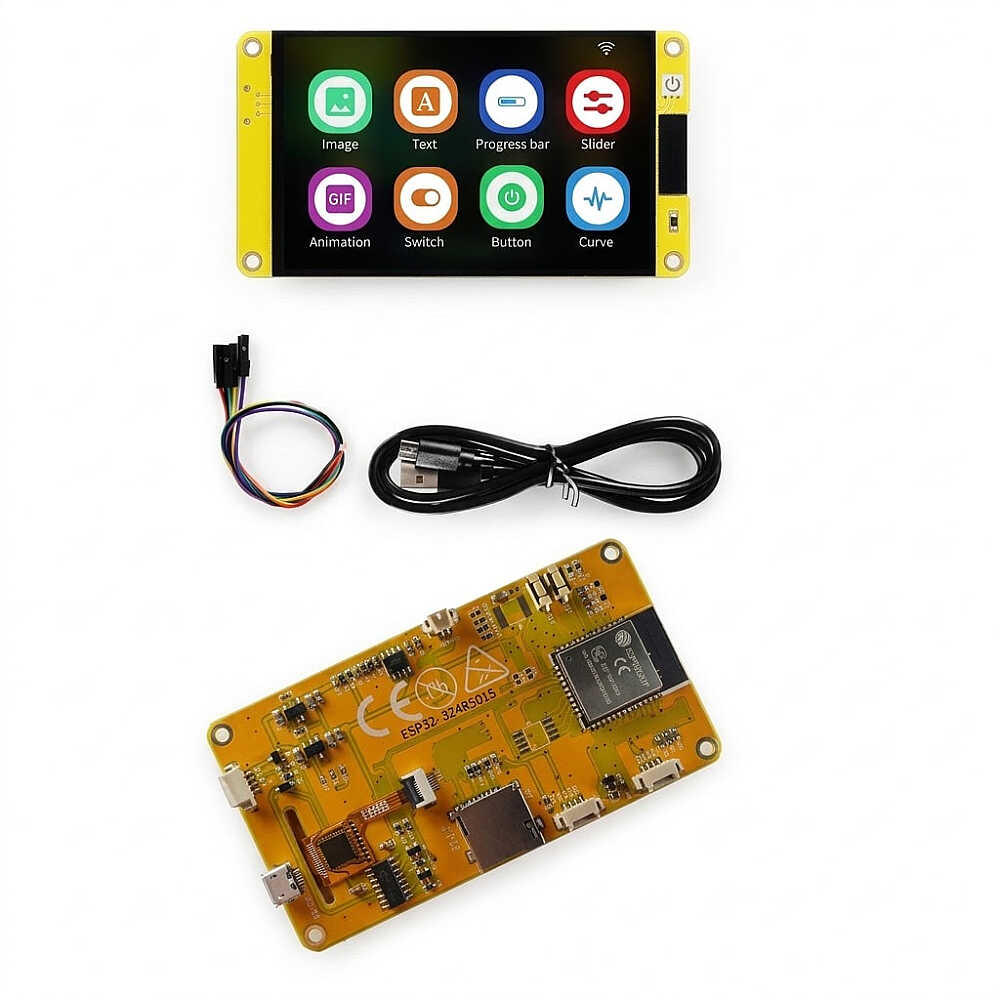

Package Contents:

• 1 x ESP32 S3 3.5 Inch IPS Touch Display (Development Board)

• 1 x USB cable

• 1 x 4-pin connection cable
