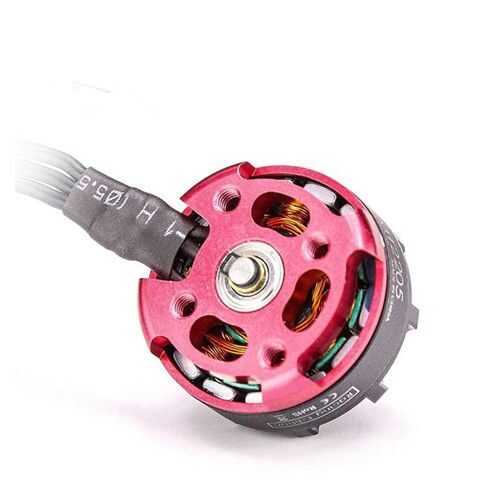

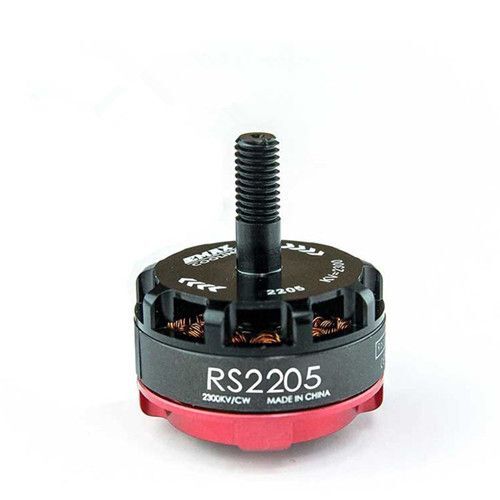

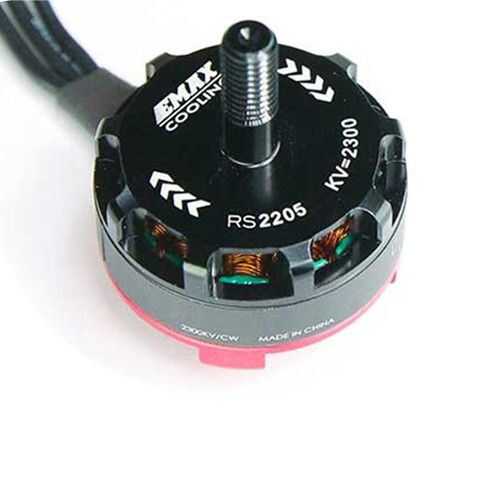

  • EMAX RS2205 RaceSpec Motor - Cooling Series - 2600 CCW

    Introducing the Emax Race Spec family of high performance brushless motors for multirotor FPV racing. Redesigned and engineered to perform better than most in it’s class, every motor is precision crafted within tight tolerances. Paired with performance driven props from any leading manufacturer will result in unreal thrust.

    • Cooling Series Bell Design reduces motor temperature by at least 30%
    • Highest Grade N52 Neodymium magnets
    • Genuine Japanese NMB Bearings
    • Each Motor is Dynamically Balanced in the factory
    • 15mm Extended Prop Shaft allows virtually any prop with 5mm hole
    • 3 Lock nuts and 2 sets of motor screws for 3mm and 4mm thick frames
    • Windings made from copper of high purity


    • Model: RS2205
    • KV: 2600kv
    • Weight: Approx. 30g with wires
    • Wire AWG: 20AWG
    • Stator Diameter: 22mm
    • Stator Height: 5mm
    • Shaft Diameter: 3mm
    • Configuration: 12N14P
    • Motor Diameter: 27.9mm
    • Motor Height: 31.7mm
    • Prop Adapter Shaft Thread Size: M5
    • Prop Adapter Shaft Thread Direction: CCW
    • Input voltage: 3S-4S (12.6 - 16.8v)

    Package Included:

    • EMAX RS2205 RaceSpec Motor - Cooling Series - 2600 CCW
