EMAX RS2205-2600KV Motor for FPV Racing Quad - CW (Black Prop Nut)

Product Code
:
19177
Brand / Origin
:
EMAX
Quantity
:
10+
Without Vat
:
266.92 TL
Same Day Shipping
Orders placed until 3:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box
  • EMAX RS2205 RaceSpec Motor - Cooling Series - 2600 CCW

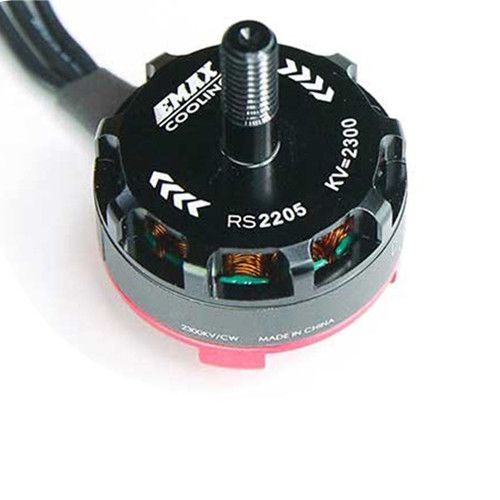

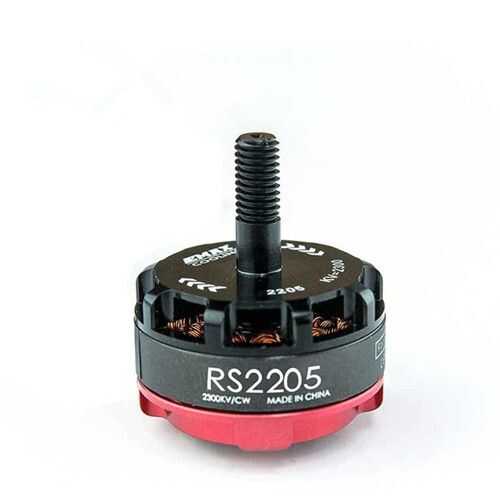

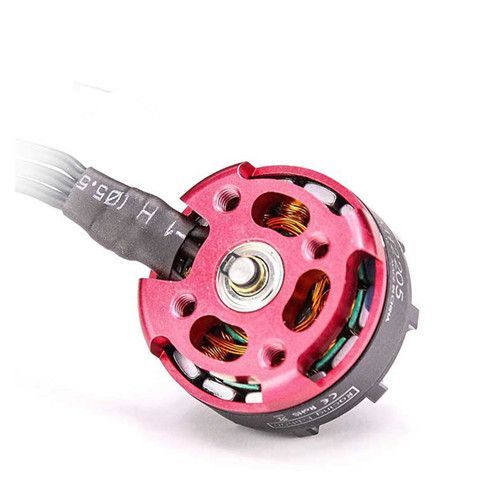

    The new RS2205 KV2600 Racing Edition motors from Emax are some of the best racing motors we've seen. They're using high strength N52 Neodyum magnets, and have active cooling fins that greatly reduce motor temperatures. They have very light weight designs and are using Japanese bearings for better performance.
    The motor bell and shaft is held down by an enhanced U ring for safety and stability to ensure it doesn't come off. It has dual lock CW and CCW lock nuts. Geared for 3S to 4S use, these motors run M5 shafts, spin at 2600KV, and has a maximum thrust of 1024grams! Using 5x45 inch props will be best on this application, and each motor weighs about 30g.
    Each motor comes individually, so if you want a full set for your quad, you'll need two of the CW ones, and two CCW versions.

    Features:

    • Model: RS2205
    • KV: 2600kv
    • Weight: Approx. 30g with wires
    • Wire AWG: 20AWG
    • Stator Diameter: 22mm
    • Stator Height: 5mm
    • Shaft Diameter: 3mm
    • Configuration: 12N14P
    • Motor Diameter: 27.9mm
    • Motor Height: 31.7mm
    • Prop Adapter Shaft Thread Size: M5
    • Prop Adapter Shaft Thread Direction: CW
    • Input voltage: 3S-4S (12.6 - 16.8v)

    Package Included:

    • EMAX RS2205-2600KV Motor for FPV Racing Quad - CW (Black Prop Nut)
