EMAX 1606 RS1606 3300KV 4000KV Brushless Motor 3-4S for RC Drone FPV Racing Multi Rotor - 3300KV

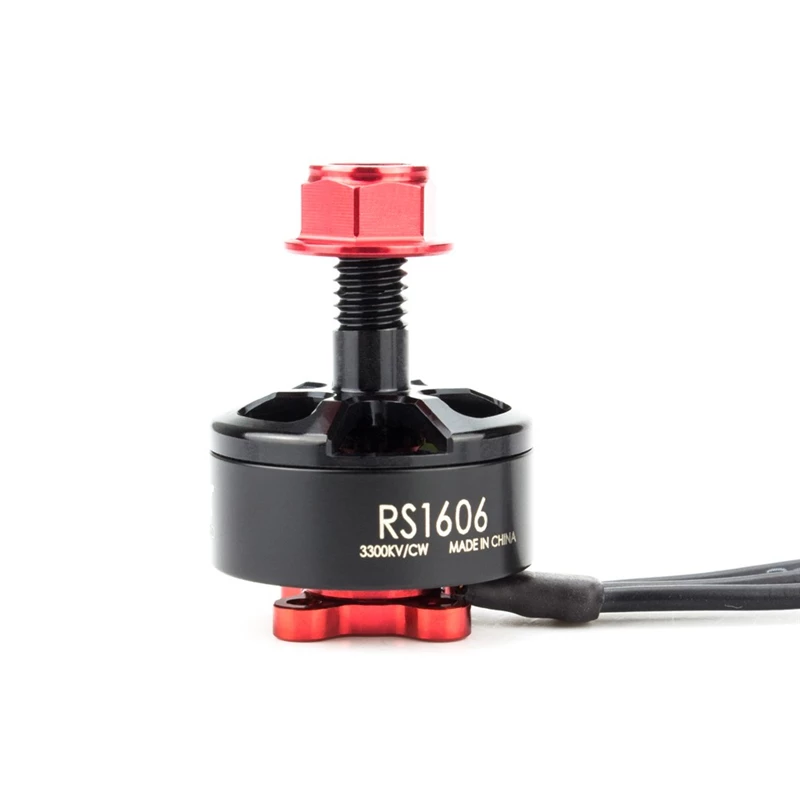

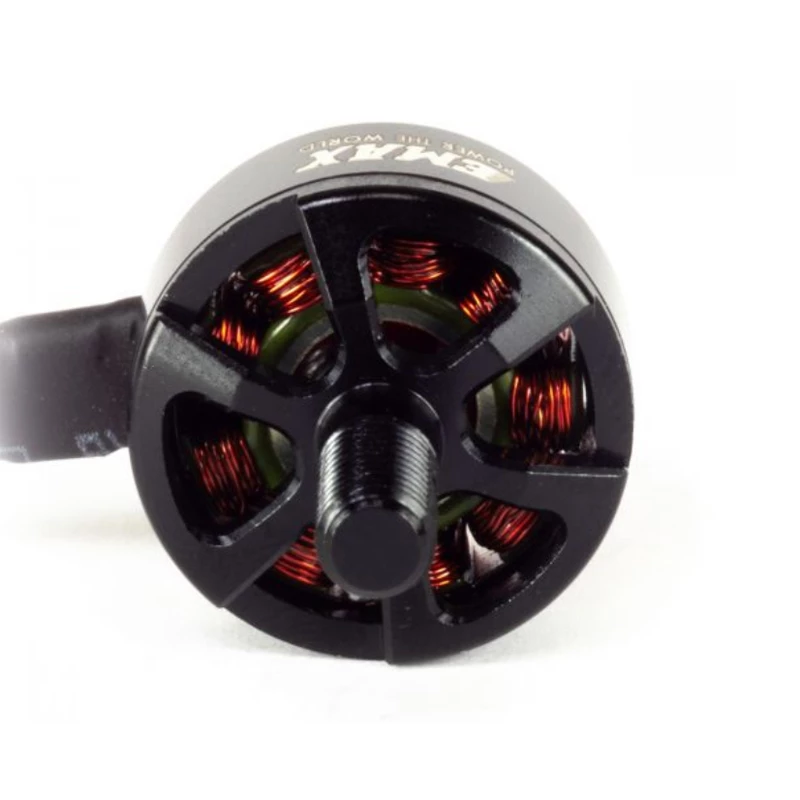

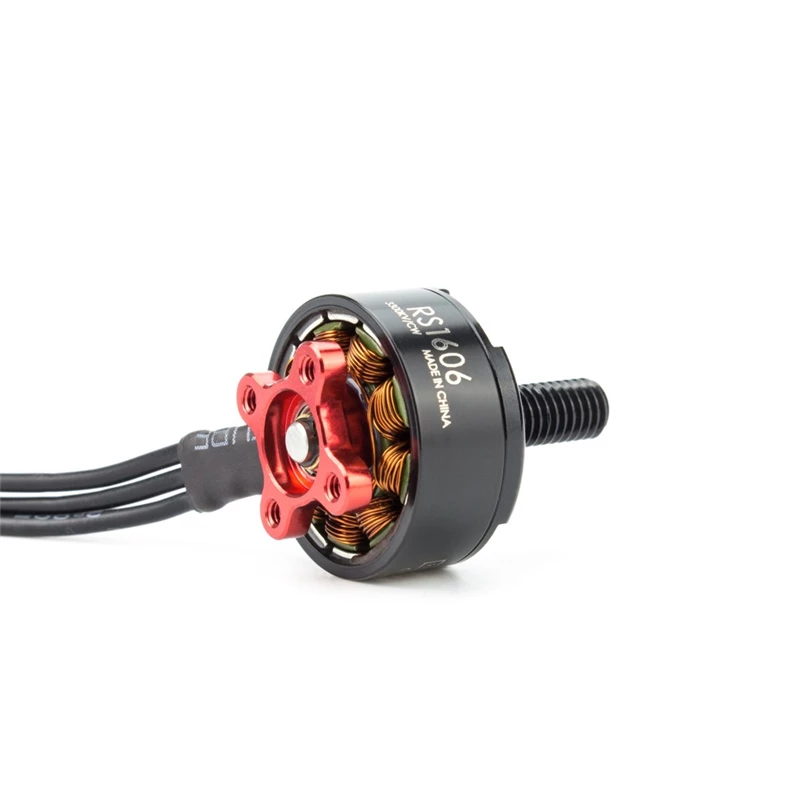

EMAX 1606 RS1606 Brushless Motor - 3300KV

The EMAX 1606 RS1606 3300KV Brushless Motor is specifically designed for FPV racing drones and lightweight multi-rotor systems with 3–4S LiPo compatibility. Offering high efficiency, fast throttle response, and strong thrust performance, this motor combines EMAX’s racing-grade motor experience in a compact and lightweight design. Compared to previous generations, its lighter structure provides faster bell rotation and a more stable flight characteristic.

EMAX 1606 RS1606 Brushless Motor - 3300KV Technical Specifications:

• KV Rating: 3300KV

• Supported Battery: 3S – 4S LiPo

• Motor Length: 28.1 mm

• Motor Diameter: 20.8 mm

• Weight: 18.8 g (including wires)

• Magnet Configuration: 9N12P

• Wire Length: 85 mm

• Wire Gauge: 24AWG

• Propeller Compatibility: 3” – 4”

• Shaft Type: M5 Thread

• Mounting Hole Pattern: 12 mm x 12 mm (M2)

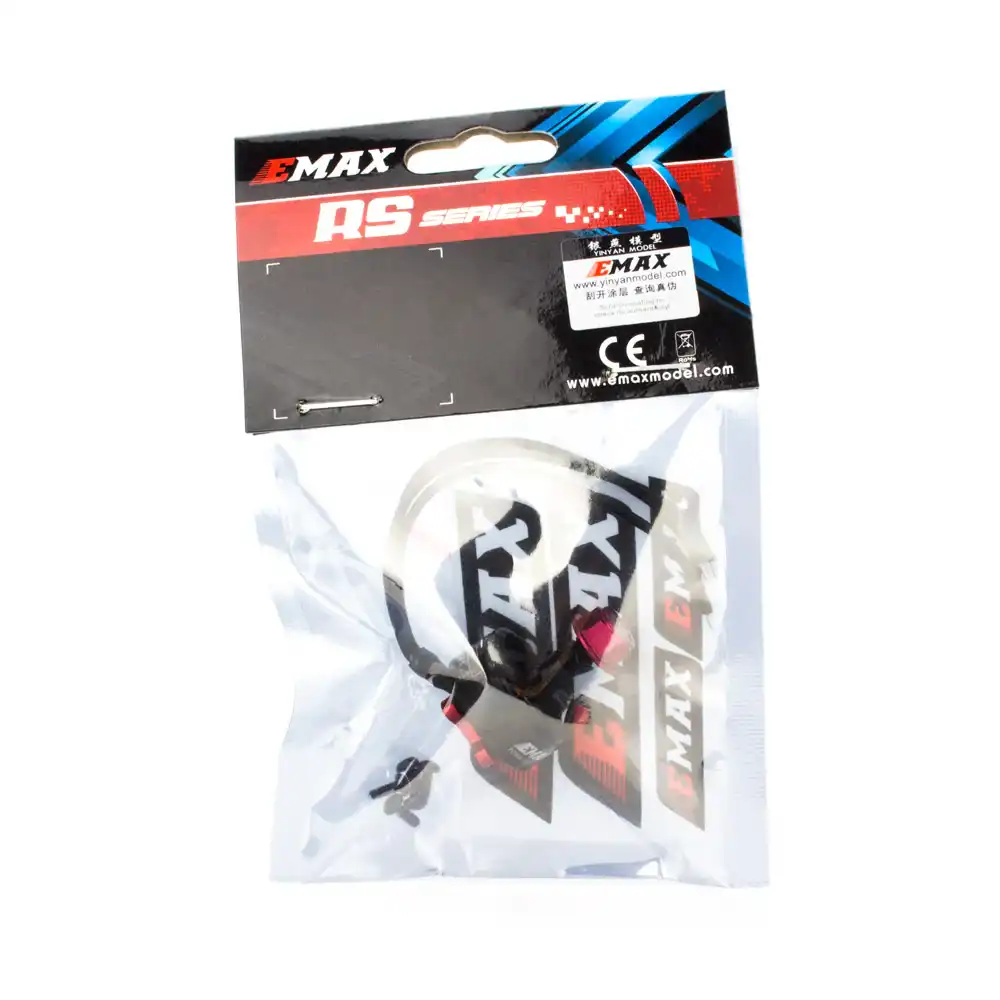

Package Contents:

• 1 x EMAX 1606 RS1606 3300KV Brushless Motor

• 4 x Motor Mounting Screws

Frequently Asked Questions:

• How do I connect the motor to the ESC?

  The motor wires can be soldered directly to the ESC pads. The motor rotation direction can be changed by swapping any two of the motor wires.
