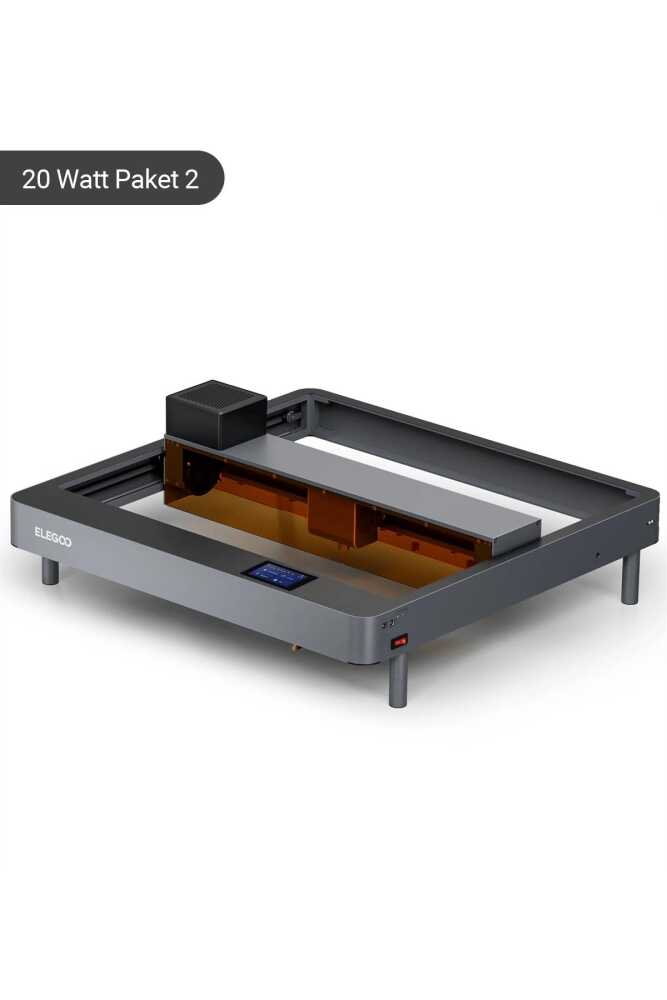

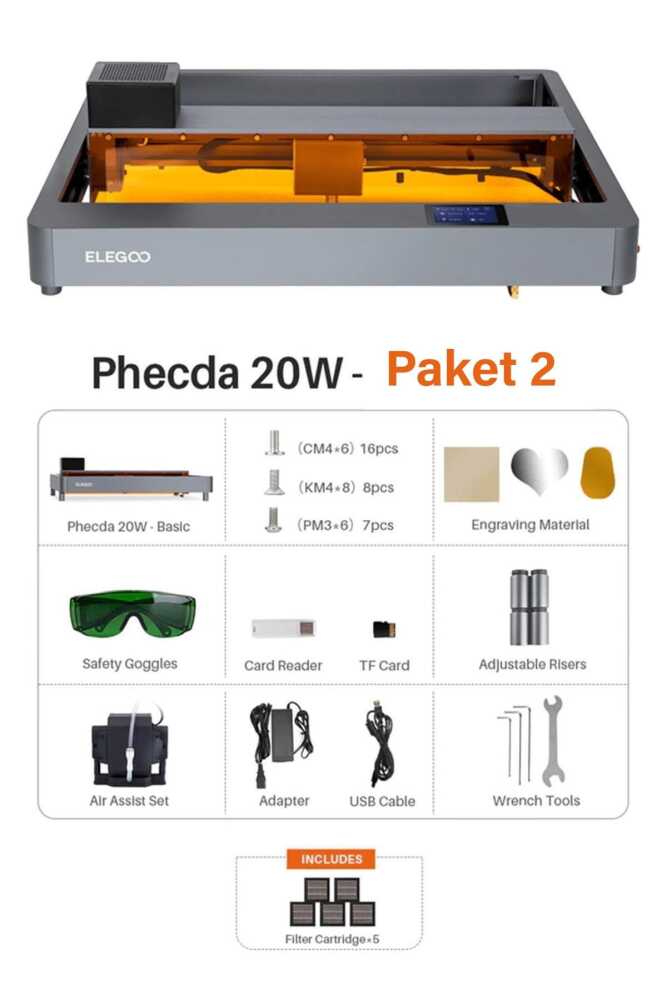

Elegoo Phecda Laser Engraver & Cutter (20W) - Package 2
10W/20W Output Power: The ELEGOO PHECDA laser engraver delivers high performance and versatility with 10W/20W output power. With a 0.07mm × 0.13mm laser spot (10W: 0.06mm × 0.06mm) and high energy density, it can reach speeds up to 25,000 mm/min without sacrificing quality. This enables engraving or cutting on a wide range of materials including wood, bamboo, leather, kraft paper, stainless steel, and aluminum.
Large Engraving Area: The machine features a generous 400 × 400 mm / 15.75 × 15.75 inch working area, giving you the creative freedom to take on large projects or engrave multiple items at the same time. In addition, the height-adjustable laser head and adjustable risers make it easy to engrave objects of different heights.
Smoke Filtering Exhaust: To help ensure a clean and safe working environment, the laser head is equipped with a smoke exhaust filter and dual cooling fans that effectively absorb smoke and dust generated during engraving. The filter cartridge includes a removable cover for easy removal and replacement.
Multiple Operating Methods: The ELEGOO Phecda laser engraver offers multiple operating methods for convenience. You can control the machine via remote Wi-Fi and a mobile app for custom engraving (your phone must be connected to the machine’s Wi-Fi network), transfer data using a USB cable or TF card, and it supports LightBurn and LaserGRBL software for greater flexibility.
Magnetic Shading Plate: One of Phecda’s standout features is the translucent magnetic shading plate. This innovative design helps protect your eyes from harmful UV light while also acting as a laser-filtering transparent cover that allows you to observe the laser spot and engraving path. It can also be used as a smoke collection accessory, improving the efficiency of the smoke filter. For additional safety, the machine comes with protective goggles.
Safety Protection: Safety is a top priority with the ELEGOO Phecda. Thanks to its built-in sensor, the machine stops immediately and beeps when a flame is detected. If the machine is accidentally moved, tilted, or rotated during operation, it pauses and triggers an alarm.

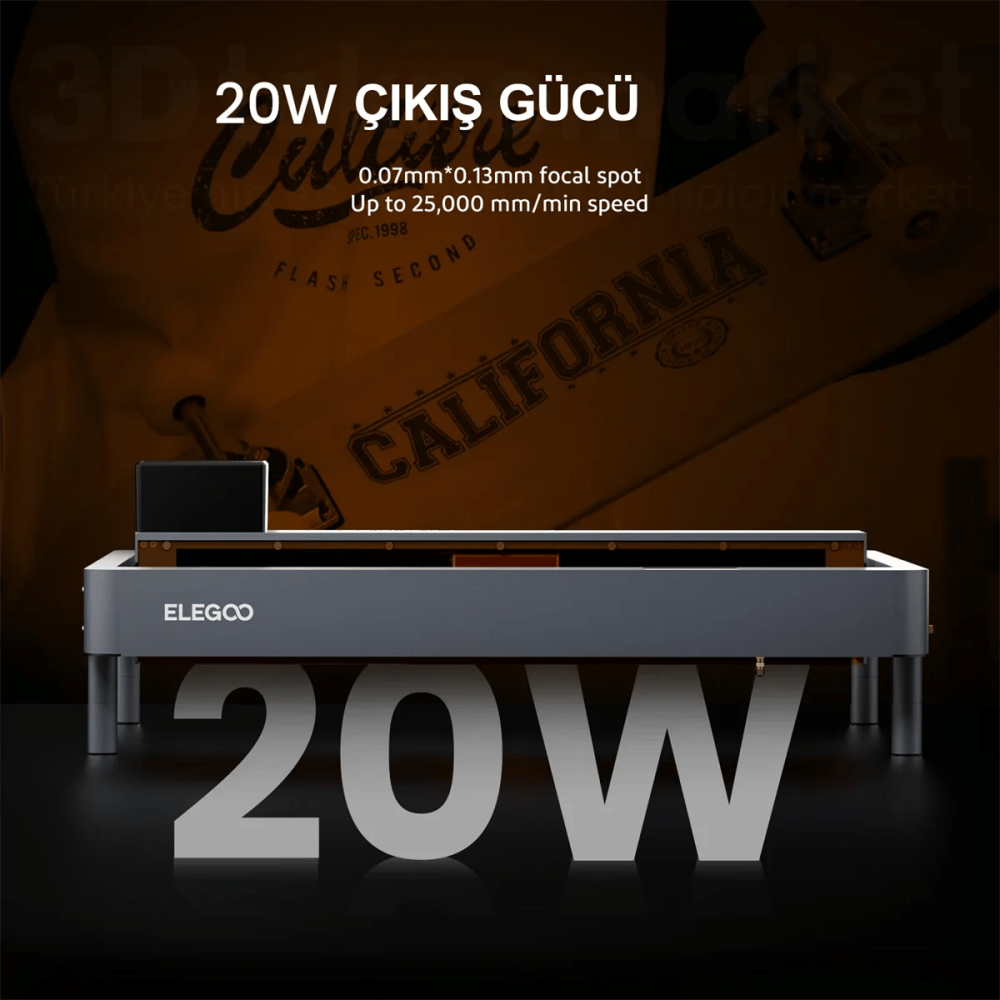

High-Precision Engraving and Cutting
The PHECDA laser engraver and cutter provides 20W/10W output power and a 0.07mm × 0.13mm laser spot (10W: 0.06mm × 0.06mm), allowing you to create incredibly fine details (up to 1000 DPI) for engraving or cutting at speeds up to 25,000 mm/min. The machine can process various materials, including basswood boards up to 14 mm thick (10W output can cut basswood up to 8 mm).

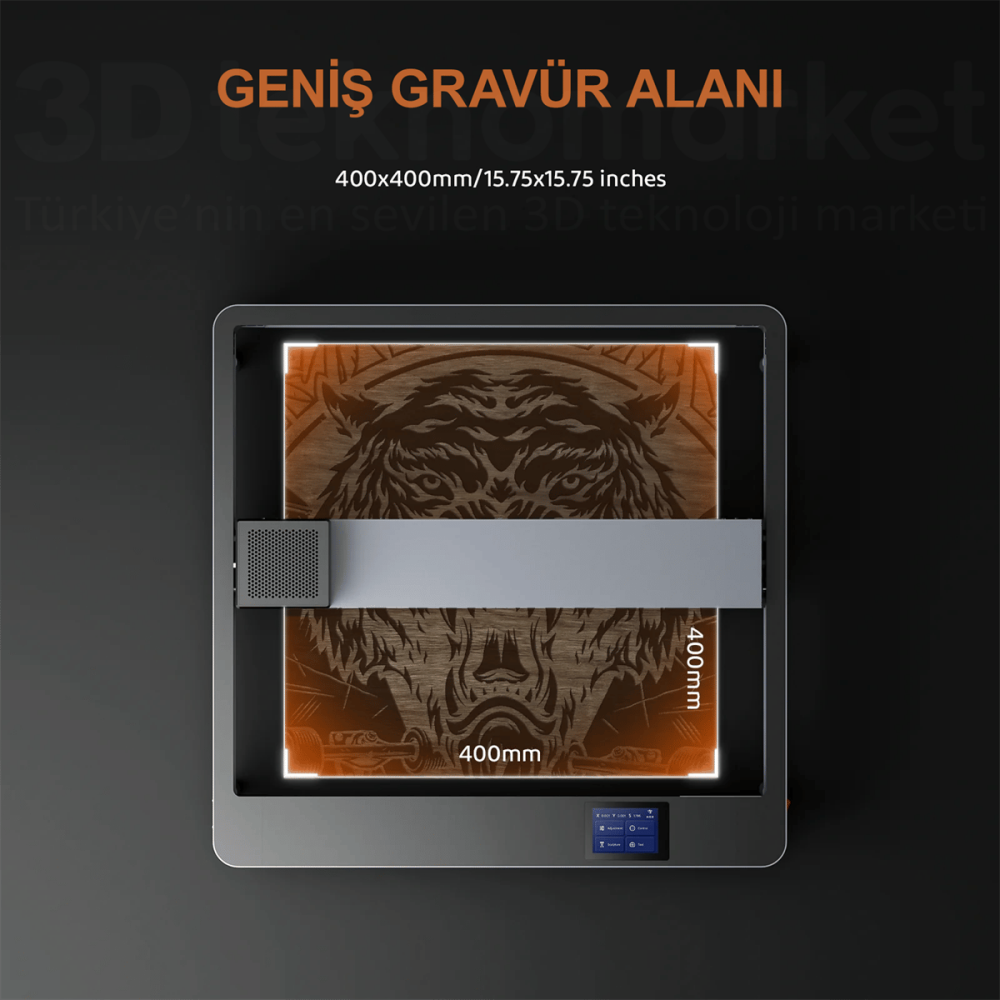

400 × 400 mm Engraving Area
The laser engraving machine features a large 400 × 400 mm / 15.75 × 15.75 inch engraving area to meet daily DIY needs and is ideal for handling large art projects. Add-ons such as a rotary attachment for engraving on cylindrical surfaces and an air assist kit for cleaner cuts are also available (sold separately).
Stable and Quiet Motion
The machine frame is made of aluminum alloy for durability and stability, especially when operating at high speeds. High-quality silent stepper motor drivers reduce vibration and operating noise. Aviation-grade POM V-wheels are ultra-quiet, high-precision, and wear-resistant. The Y-axis dual rows of 3 + 3 V-wheels, V-groove slide rails, and a high-tension timing belt work together to ensure stable, quiet, and precise motion of the laser module.
