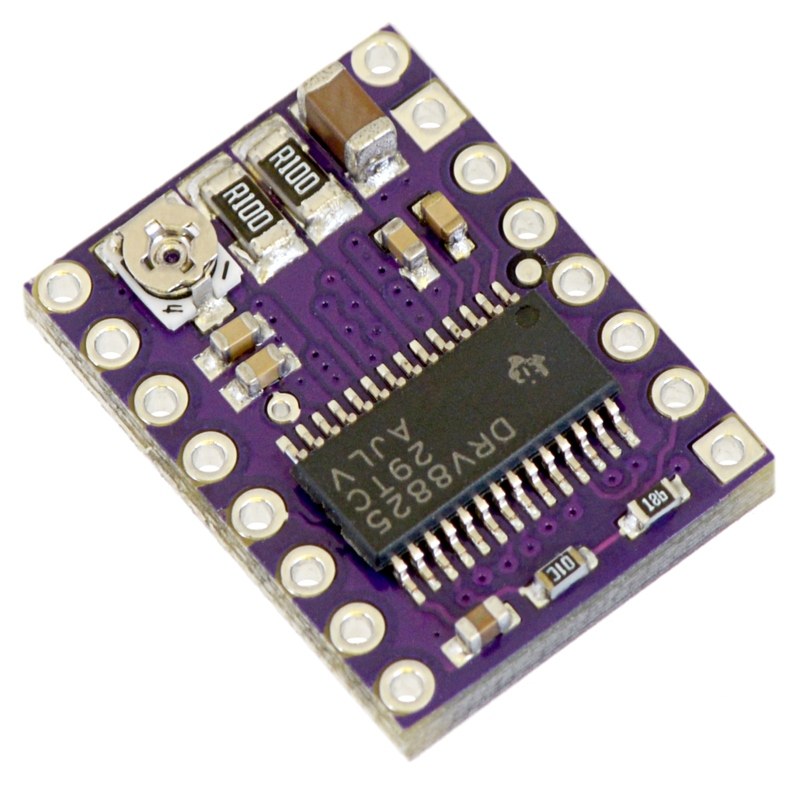

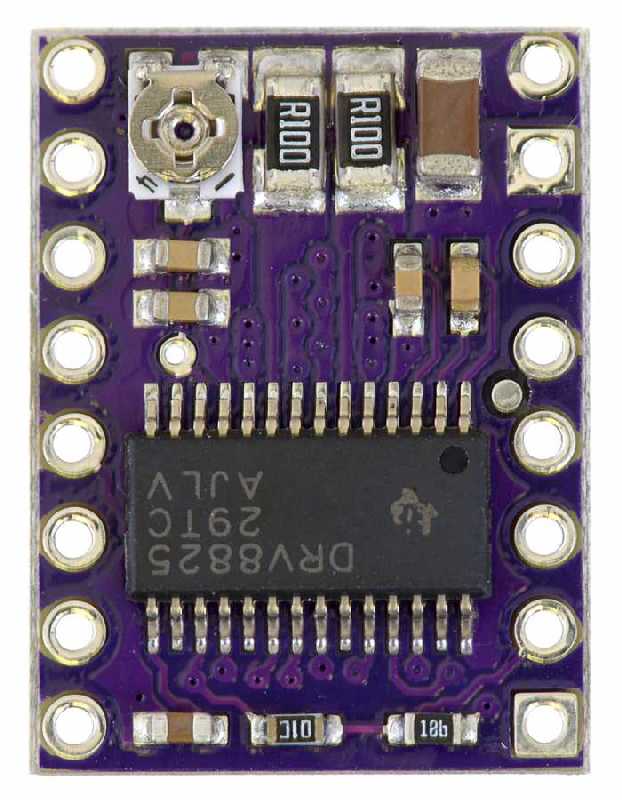

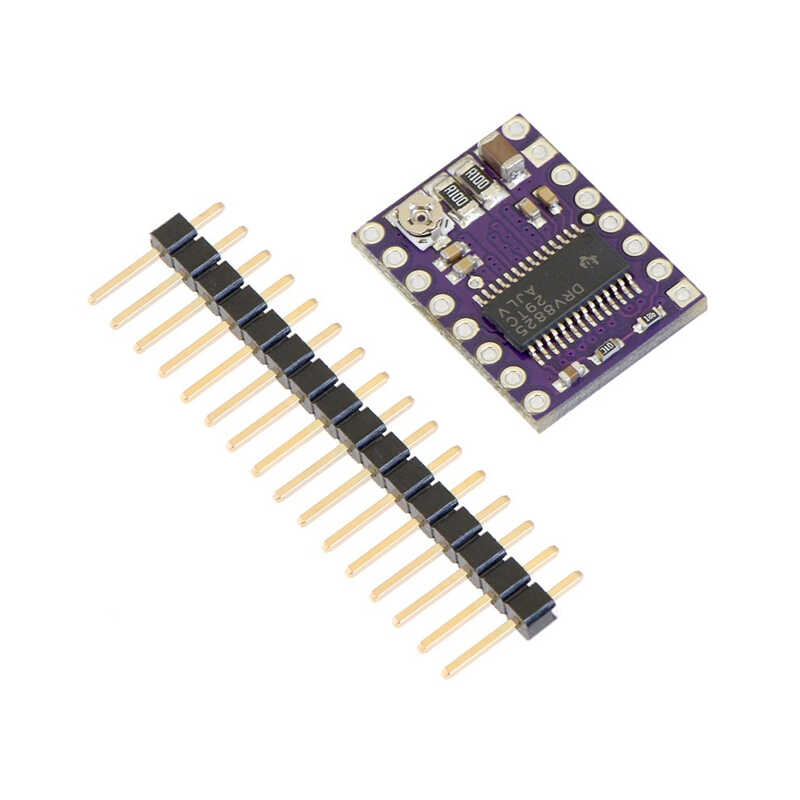

DRV8825 step motor driver board can draw 1.5A current per channel (peak 2.2A). Driver has configurable current limitation, over current, over temperature and six microstep resolution(1/32 Step) features. Driver has a very vide operation voltage range(8.2V - 45V).
Features:
- Simple step and direction interfaces
- 6 different step resolution; full-step,half-step,1/4-step,1/8-step,1/16-step ve 1/32-step
- Configurable current control
- Maximum Motor Voltage:45V
- Reverse Voltage Protection

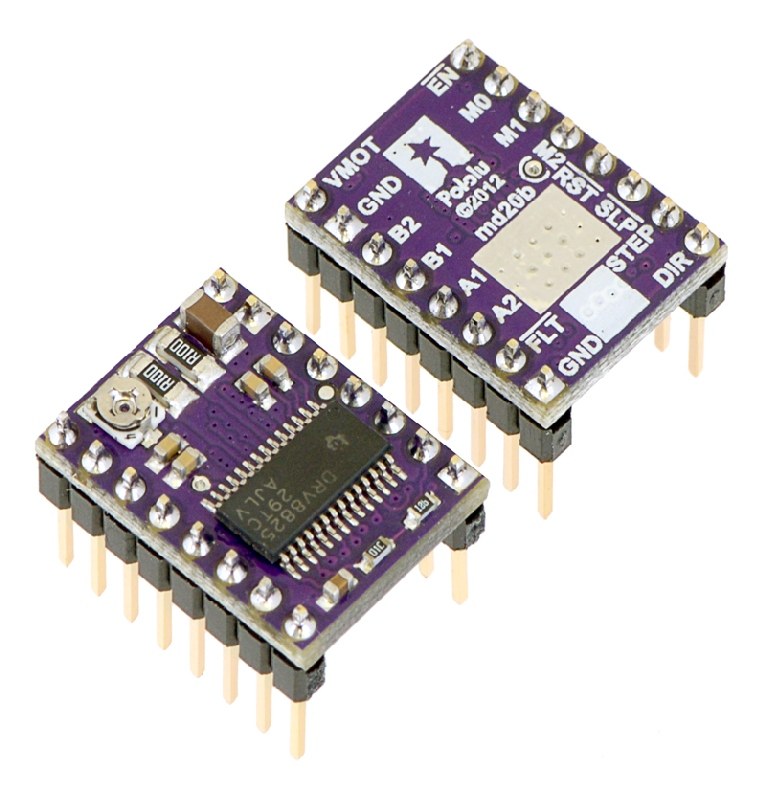

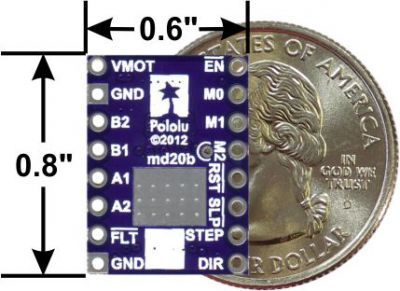

- Board has same pin mapping with A4988 motor driver.
Documents:
EN
