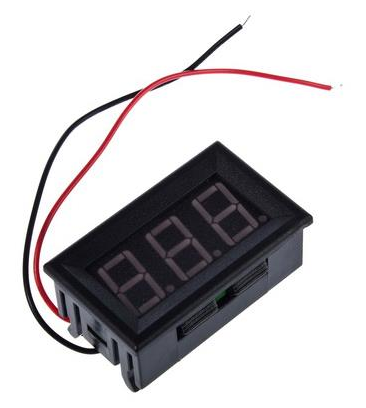

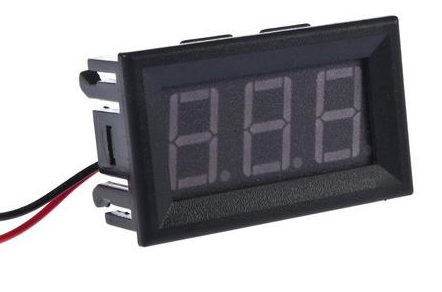

Digital Panel Voltmeter AC 30-500V

Product Code
:
17312
Brand / Origin
:
China
Quantity
:
10+
Without Vat
:
24.23 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box
  • Features:

    • Adopting the capacitance step-down principle design, not suitable for high frequency occasion
    • Used to monitor the household voltmeter, also applied to other AC voltmeter measuring.
    • Good stability and high measurement accuracy.
    • With trimmer potentiometer.
    • Easy to read, install and use.

    Specification:

    • Model: YB27A
    • LED digit: 0.56" digit
    • Display Color: Red, Blue, Green
    • Supply Voltage: No Need (two-wire system)
    • Measuring Range: AC30-500V
    • Accuracy: 1%
    • Min resolution: 1V
    • Input impedance: >1MΩ
    • Measuring speed: ≥2 times/S
    • Working temperature:-10-+50℃
    • Working humidity: 10-80%(non-condensing)
    • Working pressure: 80-106kPa
    • Wire length: 150MM
    • Housing color: Black
    • Product Size: 48x 29 x21 mm
