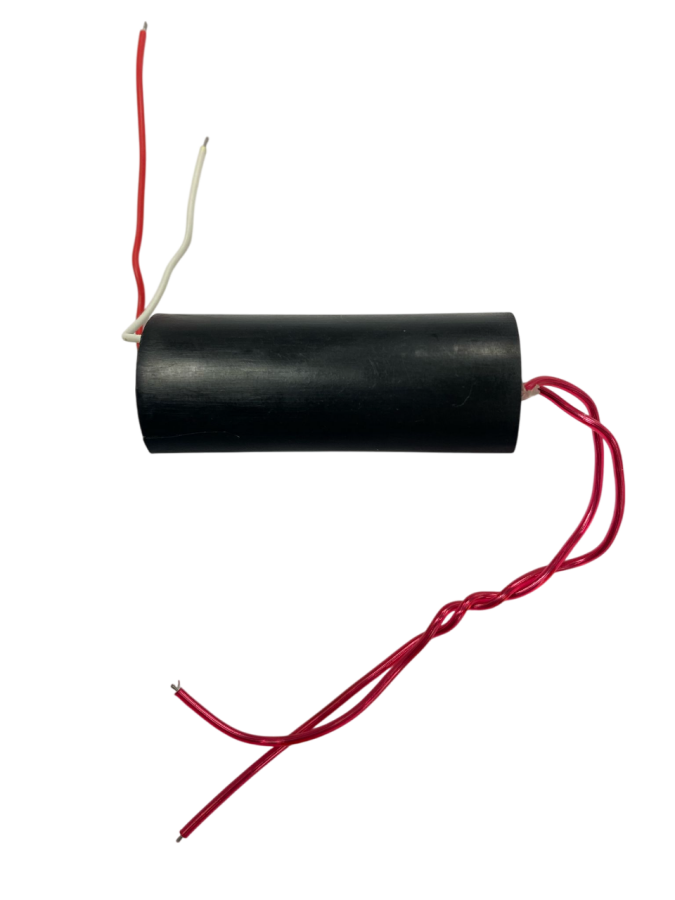

DC 400kV Boost Inverter Arc Generator Coil Module

DC 3‑6V 400kV High Voltage Boost Pulse Inverter Arc Generator Ignition Coil Module

The 400KV Arc Generator Ignition Coil is a component used to generate high-voltage electric arcs. It is commonly used in scientific experiments, electronic projects, and various special applications.

Specifications:

• Input Voltage: DC 3V to 6V
• Input Current: 2A - 5A
• High Voltage Type: Pulse current type
• Output Voltage: 400,000V (use with extreme caution)
• Discharge Distance: Approx. 10 ~ 20 mm
• High Voltage Wire Length: Approx. 100 mm
• Input Power Wire Length: Approx. 100 mm (red wire is positive)

Wiring:

Red and white wires are for power input.

Red wire: "+"    Green wire: "-"

Output: opposite side, matching color wires

Note:

The high-voltage module should not be operated unloaded (without a connected load). Ensure a safe distance between the power input and high-voltage output wires. Battery capacity should be proportional to arc distance and energy requirements. Avoid pushing the voltage too high; instead, ensure sufficient current supply. When testing arc distance, do not exceed the maximum distance — otherwise, the module may be damaged due to energy being unable to discharge.
