DC 1000kV Boost Inverter Arc Generator Coil Module

DC 3‑6V 1000kV High Voltage Boost Pulse Inverter Arc Generator Ignition Coil Module

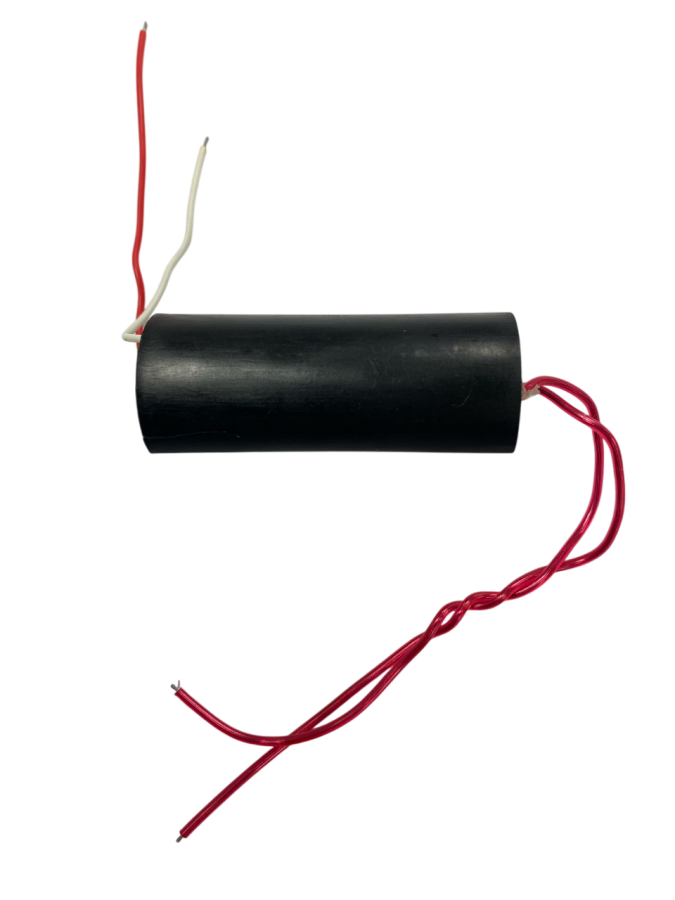

The 1000kV Arc Generator Ignition Coil is a component designed to generate high-voltage electric arcs. It is commonly used in scientific experiments, electronic projects, and specialized high-voltage applications.

Specifications:

• Input Voltage: DC 3V to 6V
• Input Current: 2A - 5A
• High Voltage Type: Pulse current type
• Output Voltage: 1,000,000V (use with extreme caution)
• Power Connection: Red and white wires – Red: "+", Green: "−"
• Output: Located on the opposite end with same-colored wires

Note:

Avoid operating the high-voltage module without a connected load. Ensure a safe distance between the power input and high-voltage output wires. Battery capacity should be proportional to the arc distance and application. Rather than maximizing voltage, prioritize supplying sufficient current. When testing arc distance, start from a short distance and gradually increase. Do not exceed the maximum arc range—failure to discharge properly due to excess pressure may damage the module.
