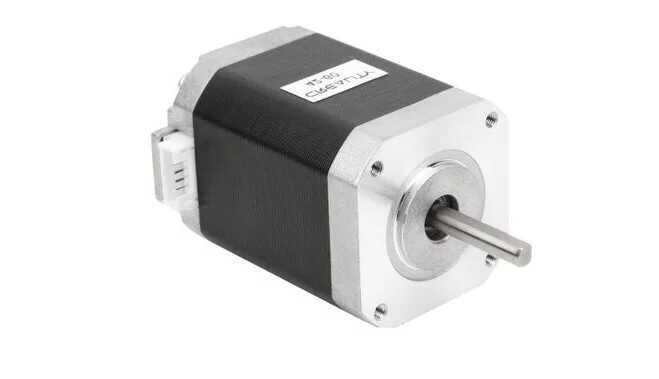

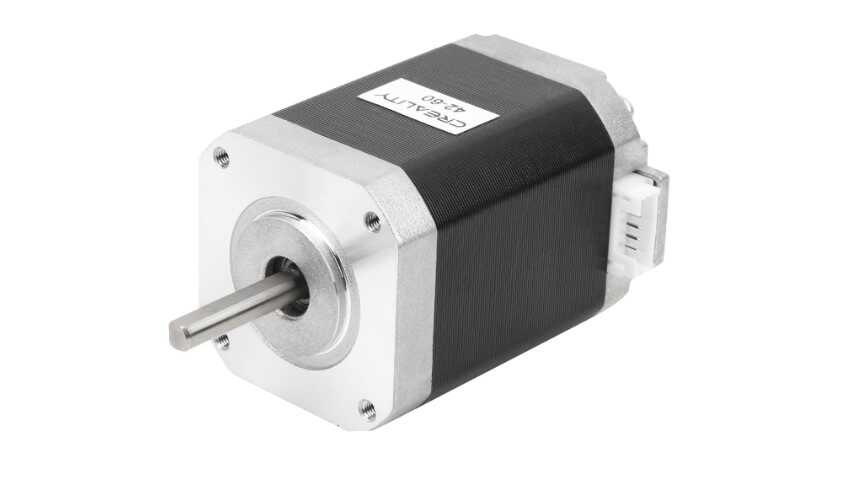

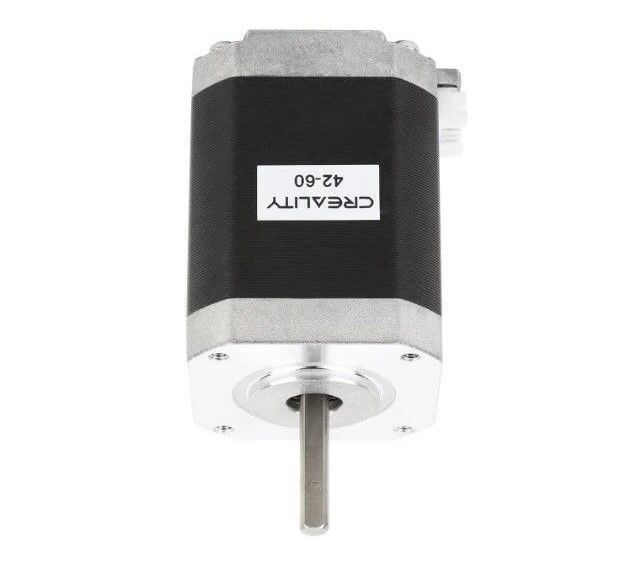

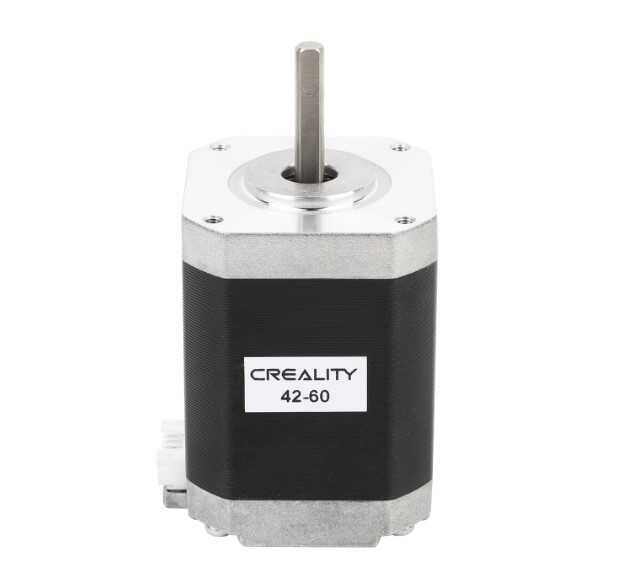

Creality-42-60 Stepper Motor

Creality-42-60 Stepper Motor

Creality-42-60 Stepper Motor, Stepper motors are one of the most important parts of 3D printers. Axis movements, extruder filament pushing mechanisms are driven by stepper motors. This stepper motor has similar dimensions to standard Nema 17 stepper motors with a step angle of 1.8 degrees. While 40 mm is the outer body circumference of the edge length, 60 mm is the body height excluding the shaft length. A filament feeder is used as a stepper motor in the extruder part of Creality 3D printer models. Moreover Stepper motors are long-lasting parts, but they can deteriorate over time due to impacts and improper maintenance. In this case, it is necessary to replace it with a fully compatible stepper motor.

Creality-42-60 Stepper Motor Compatible Printers:

• Y Axis:
  • CR-10 S5
• Z Axis:
  • Ender-7
• E Axis:
  • CR-5 Pro
  • CR-5 Pro H(CT-380)
  • Ender-6
  • Ender-7

Creality-42-60 Stepper Motor Technical Specifications:

• Step Angle: 1.8
• Holding Torque: 4 cm
• Rated Current: 0.8A
• Shaft Diameter: 5 mm
• Rated Torque: 0.4 Nm
• Size: 42x42x60mm
