Bluetooth 4.0 Audio Processing Module

Bluetooth 4.0 Audio Processing Module

The highly preferred Stereo Bluetooth Module now has a 4.0 Audio receiver version. With this module, you can easily make a Bluetooth speaker yourself. This product, which is number one with its tiny design, clean sound quality, simple installation, wide application range and loud sound features, is in a very small size.

Click to see our other Stereo sound modules.

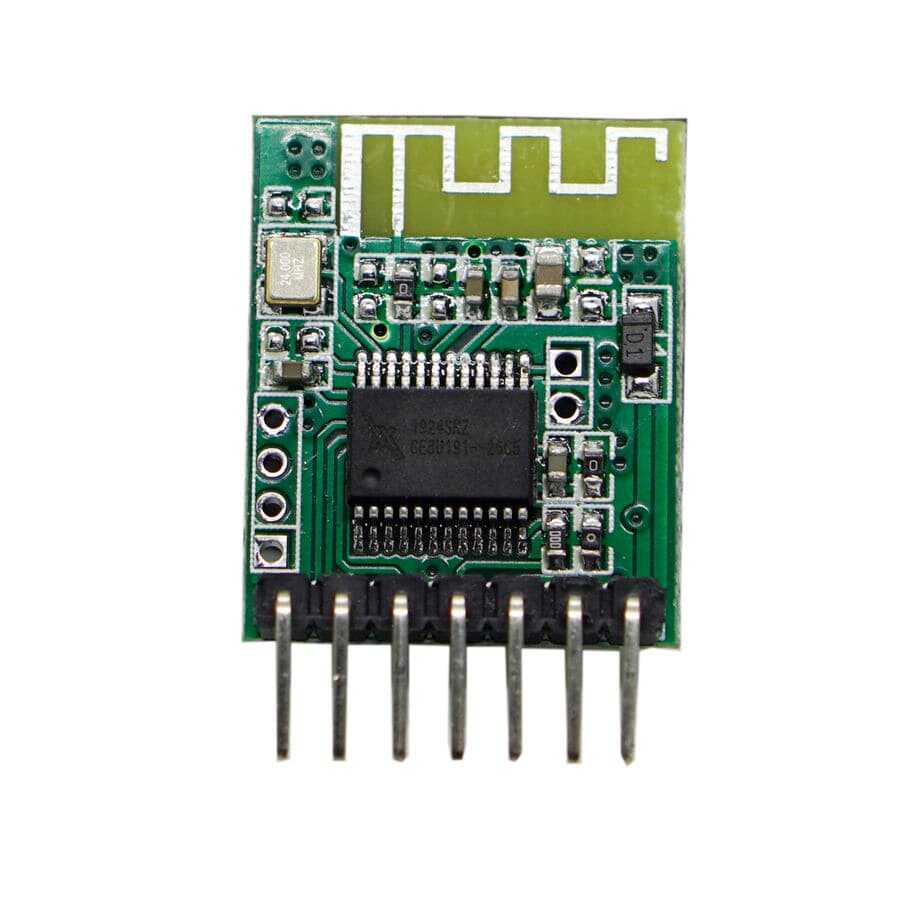

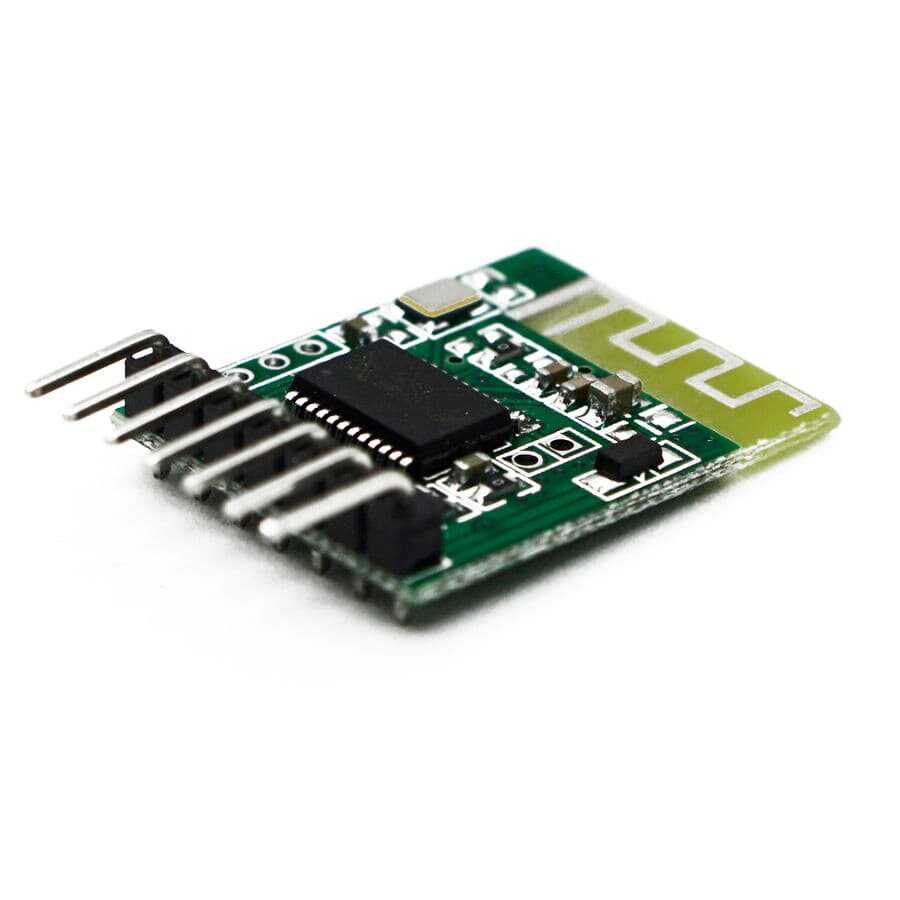

Working with 5V, this circuit board has pins for GND, silent mode, led status indicator and right-left speaker. You can easily integrate this module, which is in a very small size, into your projects.

The internal Bluetooth connection of this module is quite simple. There are two channels, L and R. There is a dedicated port for LED status indication. The LED status port is connected in series with a 100ohm resistor. If the LED is flashing fast, it means that the device is not paired. After the bluetooth connection is successful, the led flashes slowly.

Bluetooth 4.0 Audio Processing Module Technical Specifications:

• Input Voltage: 5V/DC
• Processor Model: UFL608-2101
• Connector Type: 2.54mm - Male
• Input Polarity Protection Diode: YES
• Size: 30x20x3mm

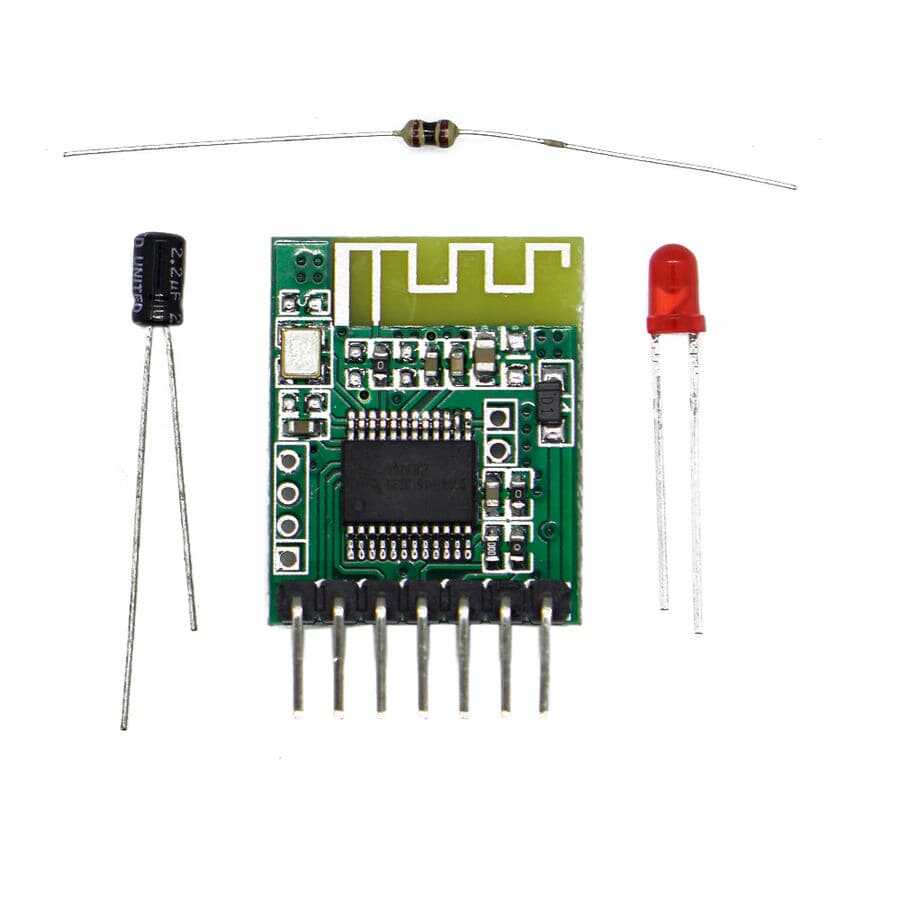

Package Included:

• 1 x Stereo Bluetooth 4.0 Audio Receiver Module
• 1 x 3mm Red Led
• 1 x 100ohm Resistor
• 2 x 3.3uF 50V Electrolyte Capacitor
