BDX53C - 8A 100V NPN DARL.Dİ. - TO220 Transistor

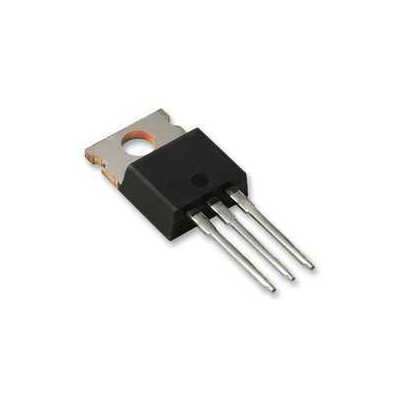

BDX53C - 8 A 100 V NPN Darlington Transistor - TO-220

The BDX53C is an NPN Darlington transistor that provides high current gain and power handling capability. With its high gain (h_FE) and current capacity, it is widely used in motor drivers, relay control circuits, audio amplifiers, and power regulation systems. The TO-220 package ensures efficient heat dissipation, allowing safe operation under high current loads. It is a robust and reliable power transistor commonly preferred in both industrial and hobbyist electronic projects.

BDX53C - 8 A 100 V NPN Darlington Transistor Technical Specifications:

• Transistor Type: NPN, Darlington

• Maximum Collector-Emitter Voltage (V_CEO): 100 V

• Maximum Collector Current (I_C): 8 A

• Power Dissipation (P_D): 80 W

• DC Current Gain (h_FE): 750 (typical)

• Transition Frequency (f_T): 10 MHz

• Package Type: TO-220

• Operating Temperature Range: -65°C ~ +150°C

Useful Documents:

• BDX53C Datasheet
