(each slice contains 4 6-input LUTs and 8 flip-flops)
1,800 Kbit fast block RAM
5 clock management leads, each with phase-locked loop
90 DSP slices
Internal clock speed exceeding 450 MHz
Internal analog-to-digital converter (XADC)

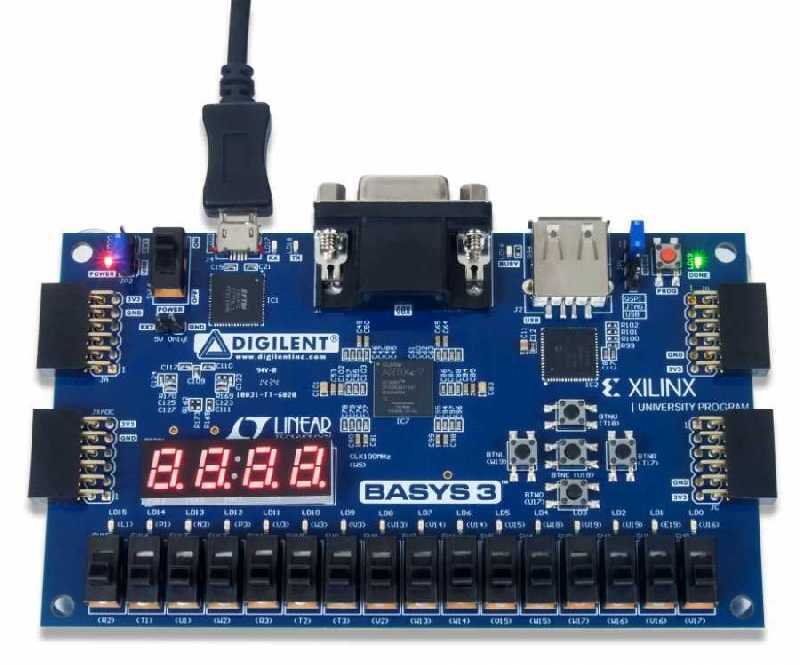

The Basys 3 board offers a wide range of ports and peripherals for system-level designs:
16 user keys
16 user LEDs
5 user buttons
4 digit 7 segment display
4 Pmod connectors
3 standard 12 pin Pmod
1 dual function XADC signal/standard Pmod
USB-UART bridge
Serial Flash
Digil USB-JTAG port for FPGA programming and communication
USB HID for mouse, keyboard and memory sticks
Designed for Vivado Design Suite. Free WebPack download for standard use. Purchase Design Edition for advanced features.

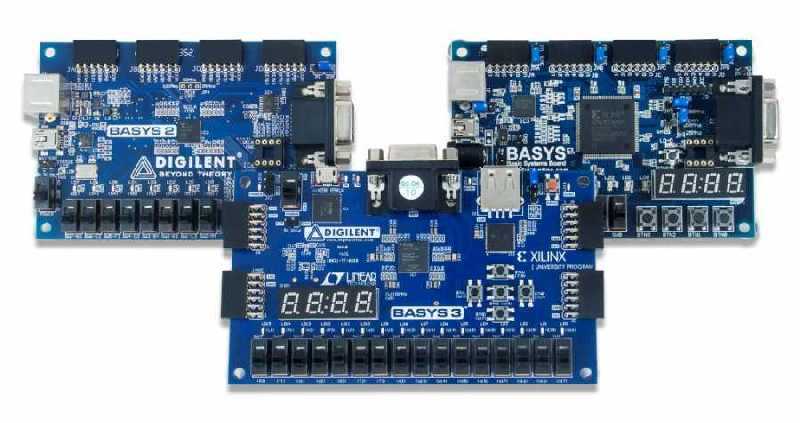

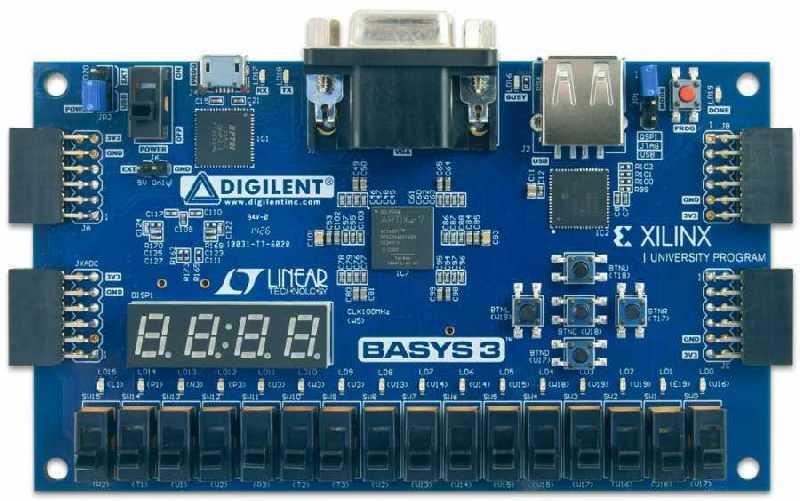

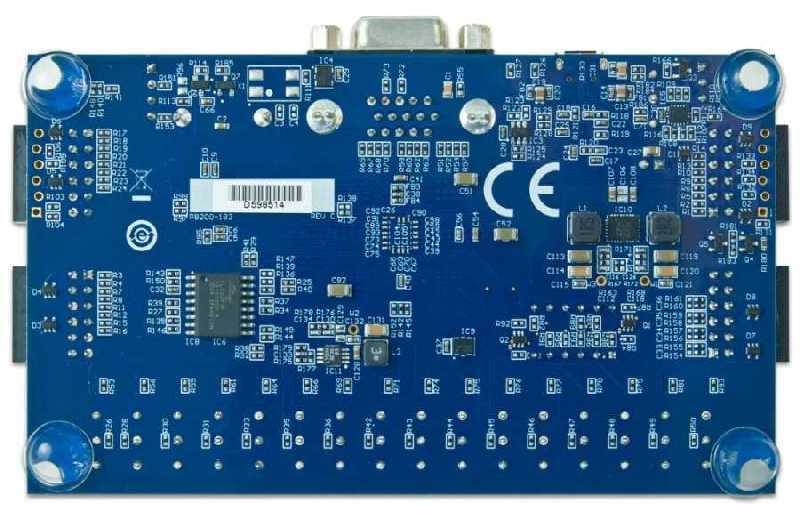

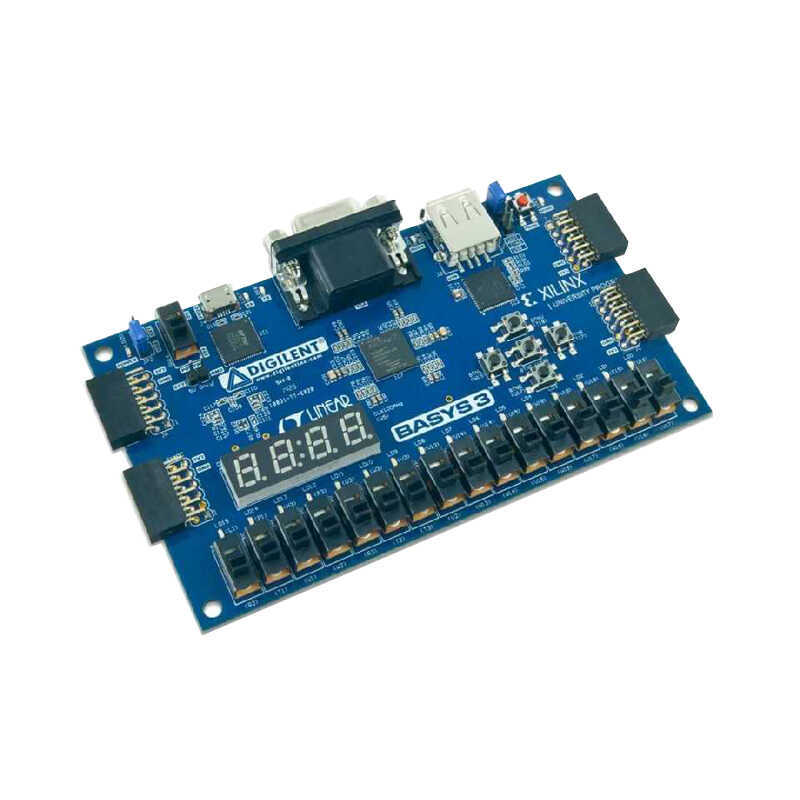

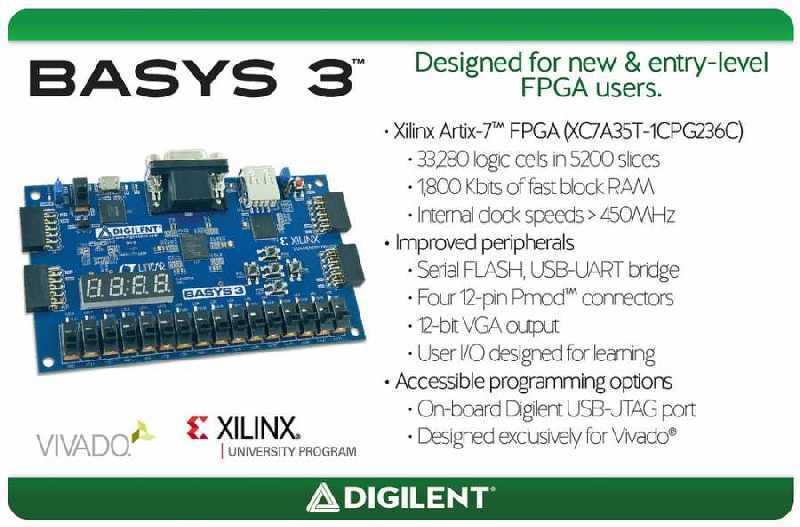

Basys3 board is an entry-level FPGA board designed for Vivado Design Suite, featuring Xilinx Artix 7-FPGA architecture. Basys 3 board is the latest addition to the popular Basys starter board series. It features all Basys boards, including fully ready-to-use hardware, a wide range of built-in inputs and outputs, all FPGA auxiliary circuits, and free development tools. With the Basys3 board, Digilent offers students a better representation of professional engineering with its advanced features. These features include:
More I/O: 2x more user keys and internal outputs, increased number of external ports and a first for the Basys series USB-UART bridge.
Modern Architecture: Thanks to the transition from the Spartan 3E family to the Artix-7 class, Basys3 offers improved hardware capacity. With the new Artix, the FPGA has 15x more logic cells and 26x more RAM.
Industry-first SOC Strength Design Suite: The most significant change in the Basys3 board is the transition to the Xilinx Vivado Design Suite, the most modern design tool used by professional engineers worldwide. Compared to ISE, Vivado offers an improved user experience and expanded features. These features include block-based IP integration and the Vivado Logic/Serial I/O analyzer.
