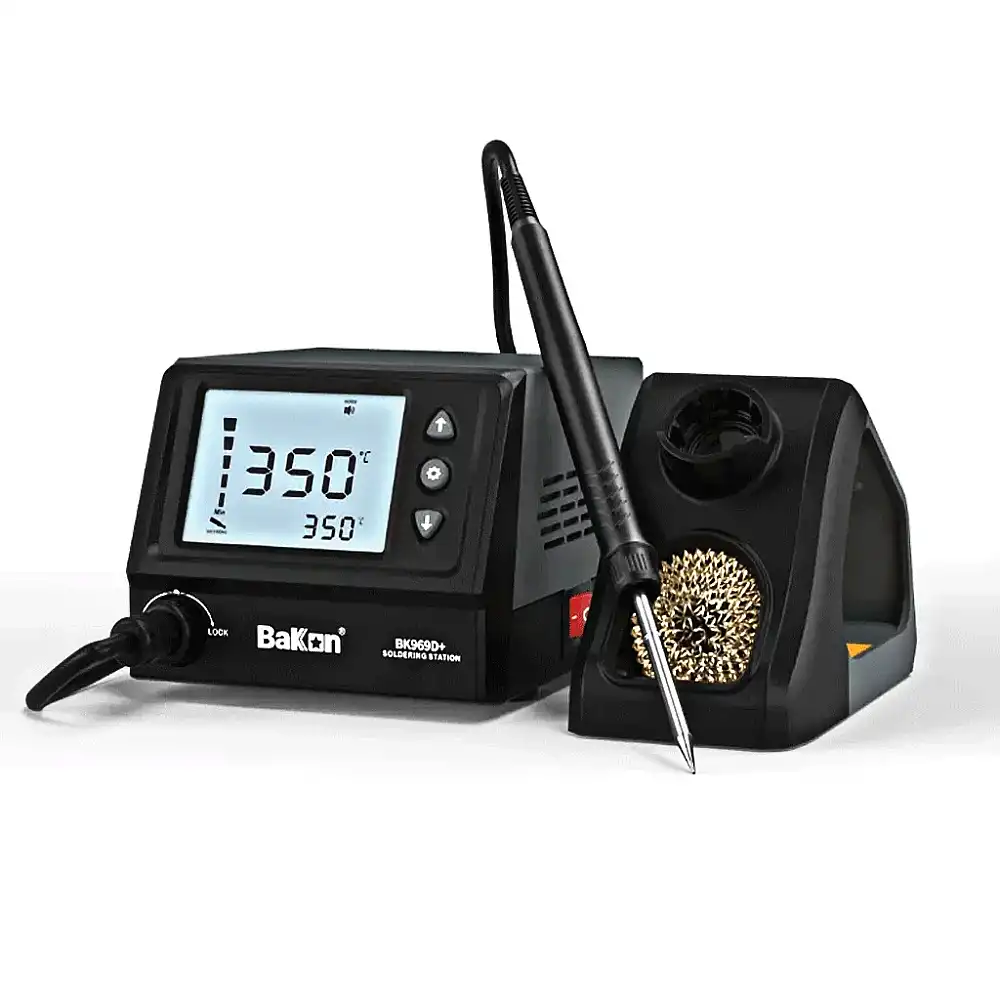

Bakon BK969D+ Intelligent Soldering Station – 75W Smart T12

Bakon BK969D+ Intelligent Soldering Station – 75W Smart T12

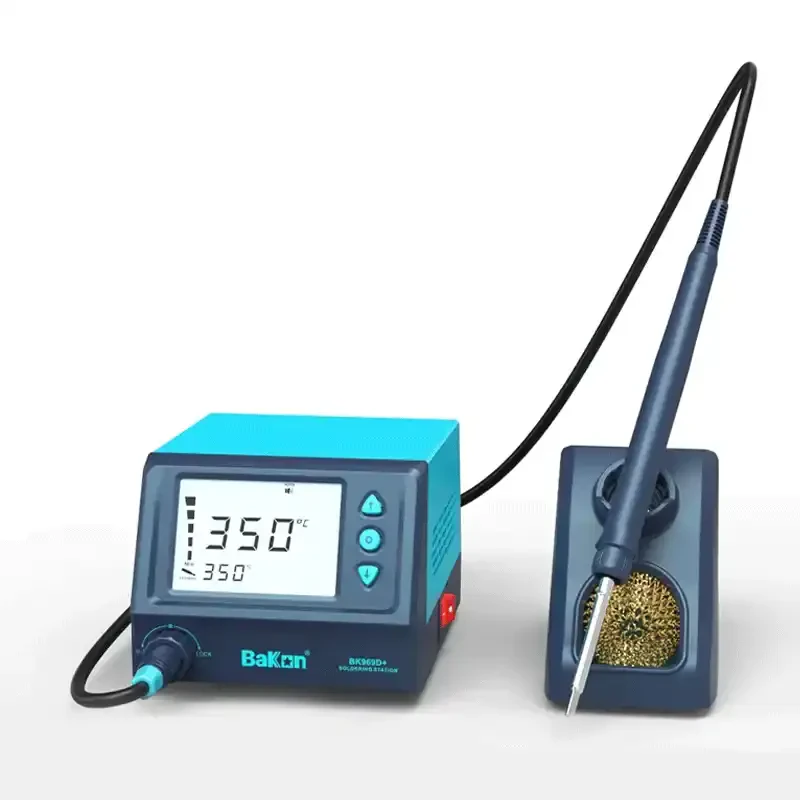

The Bakon BK969D+ is an advanced soldering station developed for both professional and hobby electronics repair, featuring high-performance and intelligent T12 soldering tip technology. With 75W power, ultra-fast heat-up time, a microprocessor-controlled temperature system, and an ergonomic design, it offers efficient and comfortable operation. Thanks to its next-generation driver circuit, T12 heater-integrated soldering tips reach working temperature in just a few seconds, significantly increasing working speed and productivity.

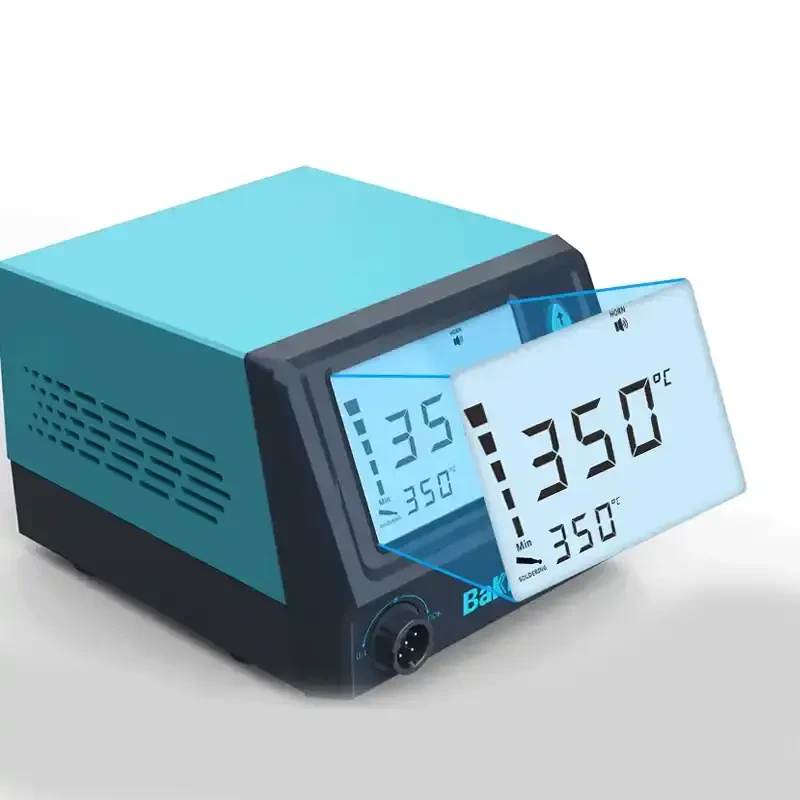

The device’s HD LCD display clearly shows temperature, mode information, and fault conditions. The advanced P.I.D. temperature control algorithm prevents temperature fluctuations, enabling precise and stable soldering. The one-piece T12 heater structure and sensor fault warning system enhance operational safety while delivering maximum performance for high-precision soldering tasks. The ergonomic, patented LF008A handle provides comfort even during long sessions and helps reduce fatigue.

The BK969D+ is also equipped with password protection, automatic sleep mode, and energy-saving features. When not used for a certain period, it automatically enters sleep mode to extend tip life and prevent unnecessary power consumption. It is an ideal choice for electronics repair, BGA/SMD applications, circuit design work, prototyping, and educational laboratory environments.

Bakon BK969D+ Intelligent Soldering Station Technical Specifications:

• Brand: Bakon

• Model: BK969D+

• Power Consumption: 75W

• Soldering Power / Temperature Range: 75W (Max) 180°C ~ 480°C

• Operating Ambient Temperature: 0 ~ 40°C / 32 ~ 104°F

• Storage Temperature: -20 ~ 80°C / -4 ~ 176°F / 35%–60% humidity

• Display Type: HD LCD Display

• Temperature Calibration: Digital Calibration

• Temperature Control Method: Microcomputer P.I.D. Temperature Control

• Input Voltage: DC 23V

• Grounding Voltage: ≤2mV

• Grounding Resistance: ≤2Ω

• Celsius / Fahrenheit Conversion: ✓

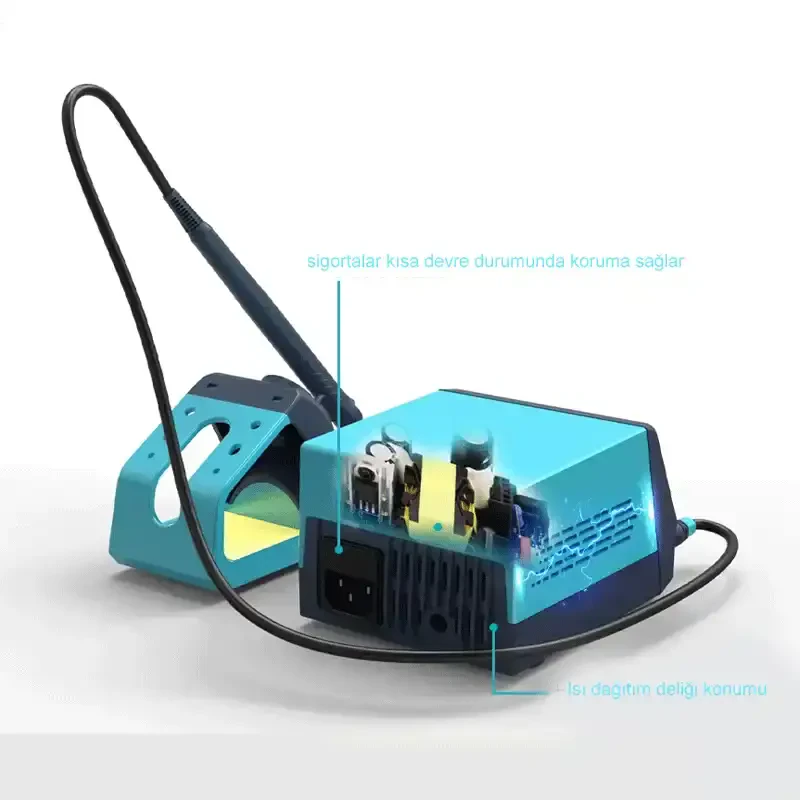

• Heater / Sensor / Fault Protection Systems: ✓

• Password Protection: ✓

• Soldering Handle Model: LF008

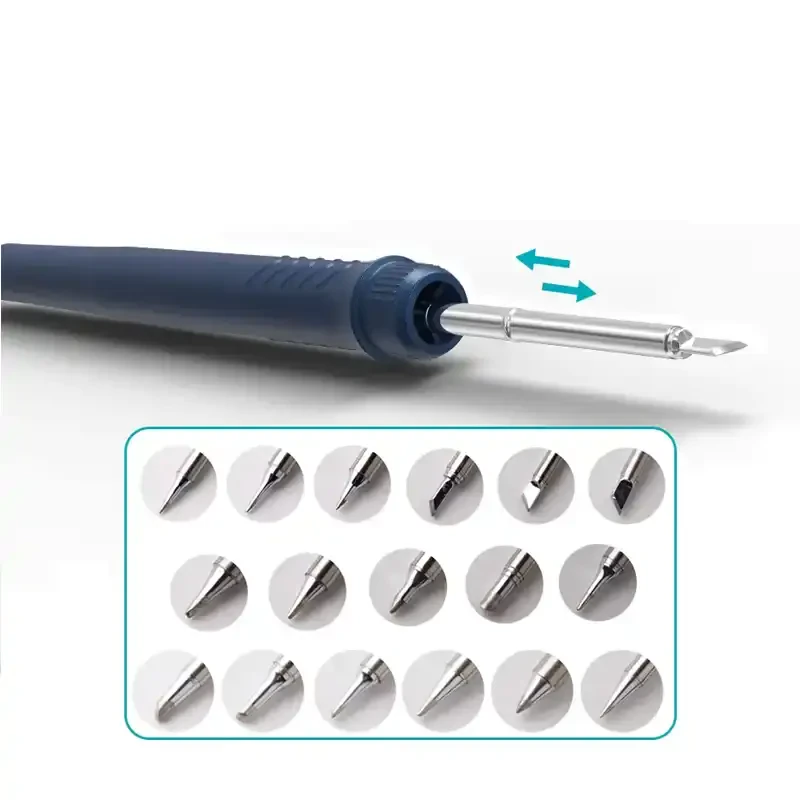

• Soldering Tip Model: T12 Series Tips

• Dimensions: 128 × 104 × 79 mm

• Weight: ≈ 0.8 kg / ≈ 1.0 kg

Package Contents:

• 1 × BK969D+ Main Unit

• 1 × LF008 Soldering Handle

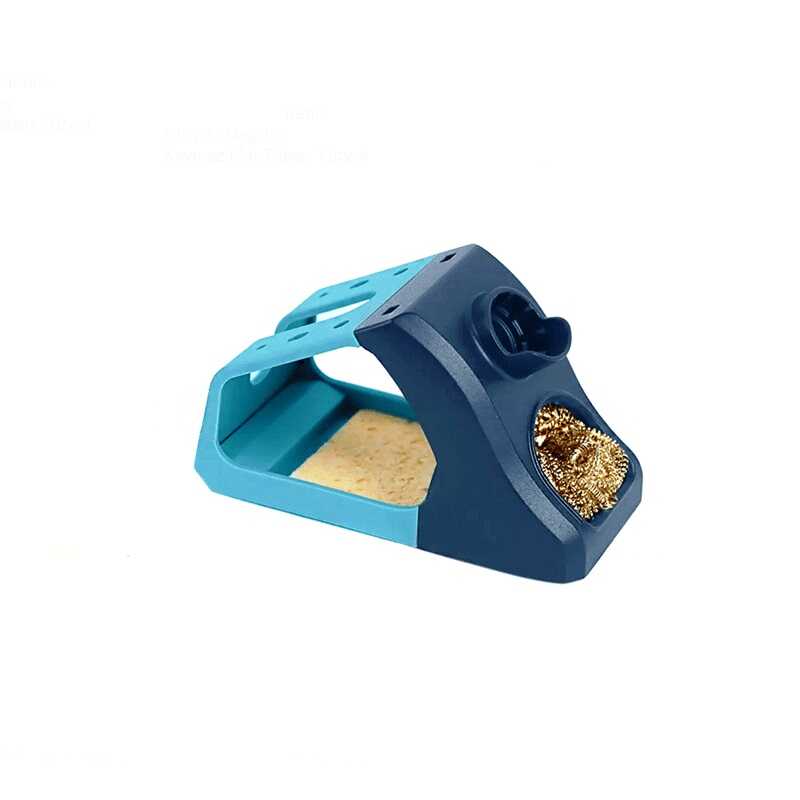

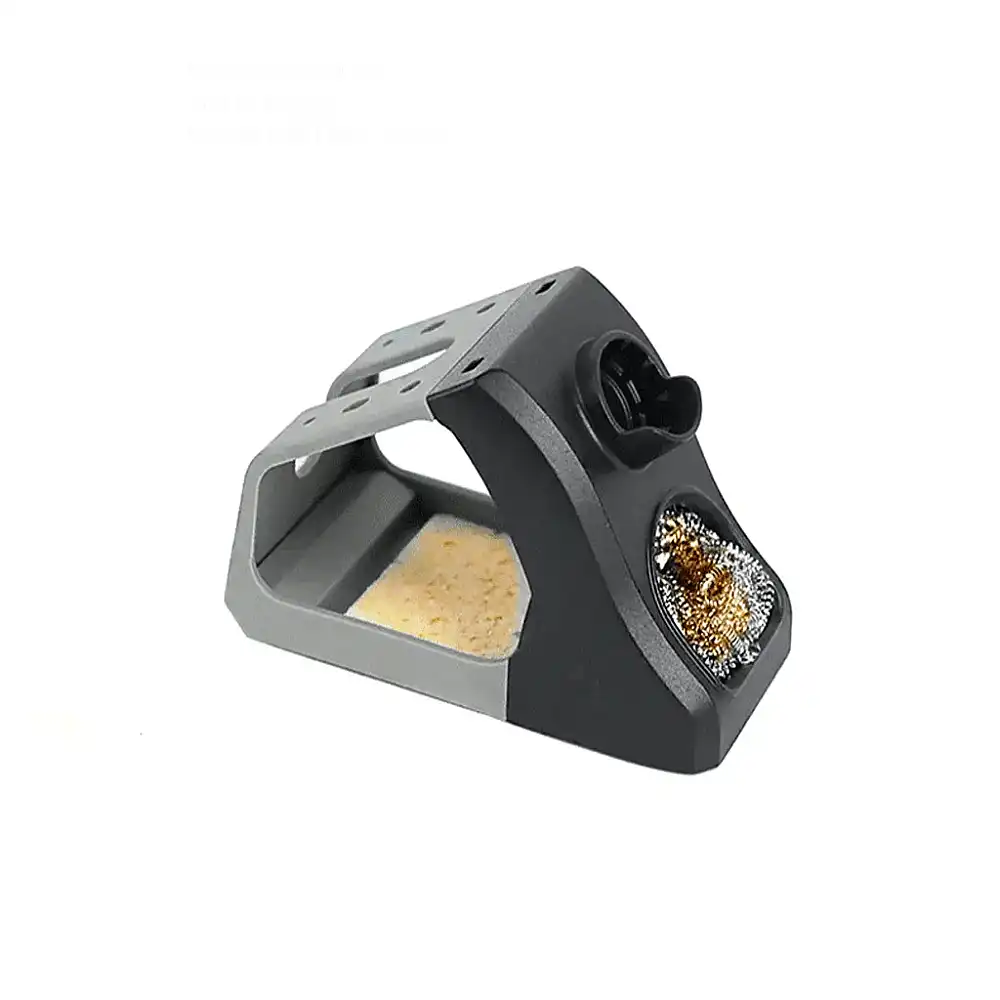

• 1 × BK515 Soldering Handle Stand

• 1 × Cleaning Sponge

• 1 × User Manual

• 1 × Warranty Certificate

• 1 × Technical Service Form
